ALLEN BRADLEY 1756-OB16I Output Module For Allen Bradley Software Programming Professional Unit System Spare Stock

1756-M02AE Module features ControlLogix I/O Modules Specifications





The 1756-OB16I module has also been routine-tested at 1350V AC for 2 s. It has an outputs-to-backplane continuous isolation voltage of 250V and an output-to-output continuous isolation voltage of 125V. It also has an output delay time of a maximum of 1 ms from off to on and a maximum of 2 ms from on to off. Power dissipation of the 1756-OB16I module is 3.6W at 60 Degrees Celsius (maximum) and its thermal dissipation is 12.28 BTU/hr. It has an operating temperature range of 0 to 60 Degrees Celsius and a non-operating temperature range of -40 to 85 Degrees Celsius.

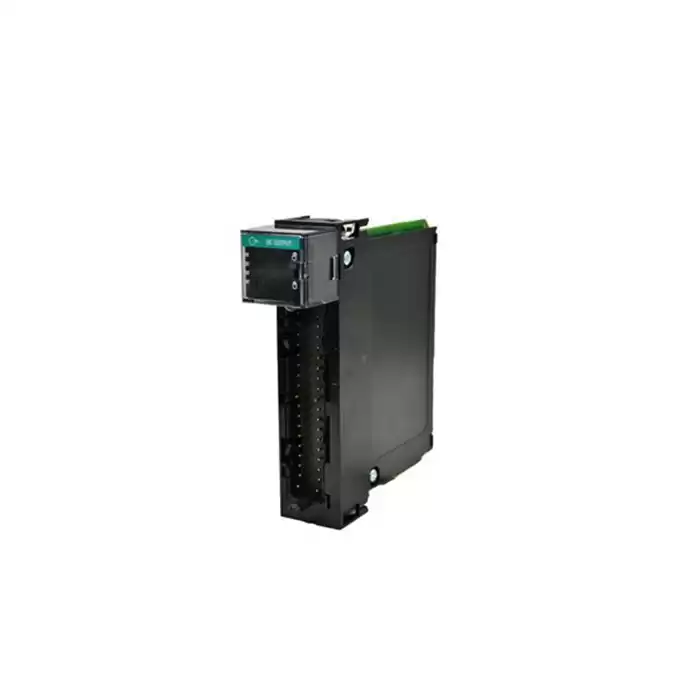

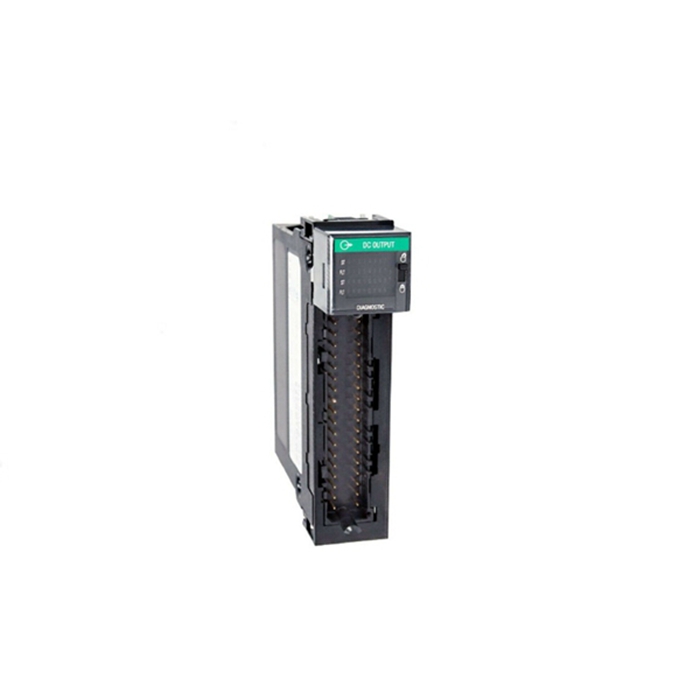

The Allen-Bradley 1756-OB16I is a 1756 ControlLogix Discrete output module that supports sinking and sourcing configuration and operates at a Voltage category of 12/24VDC. This output module is a single slot module that directly installs to the 1756 chassis.

It has Sixteen (16) individually isolated channels that allows wiring of different voltage sources to every output channel as long as the external power is connected to a 12/24 VDC source. It may also be terminated following a non-isolated wiring scheme where the DC (+) and DC (-) may be connected to a common voltage source.

This output module has integrated Sixteen (16) LED indictors to indicate the module’s operation and depict the active output channel. When a channel is active, the corresponding LED is energized or ON otherwise, it is OFF. The pilot duty rating of this module is 2A with a maximum OFF to ON output delay time of 1 ms and ON to OFF maximum output delay of 2 ms. This module may be used to energize electrical loads such as Relays, Pilot Lamps, Indicators, Siren, Horn, Buzzer, Solenoid and may other loads. When driving inductive loads, it is ideal to install an external surge protection device as high-inductive loads have high inrush current.
