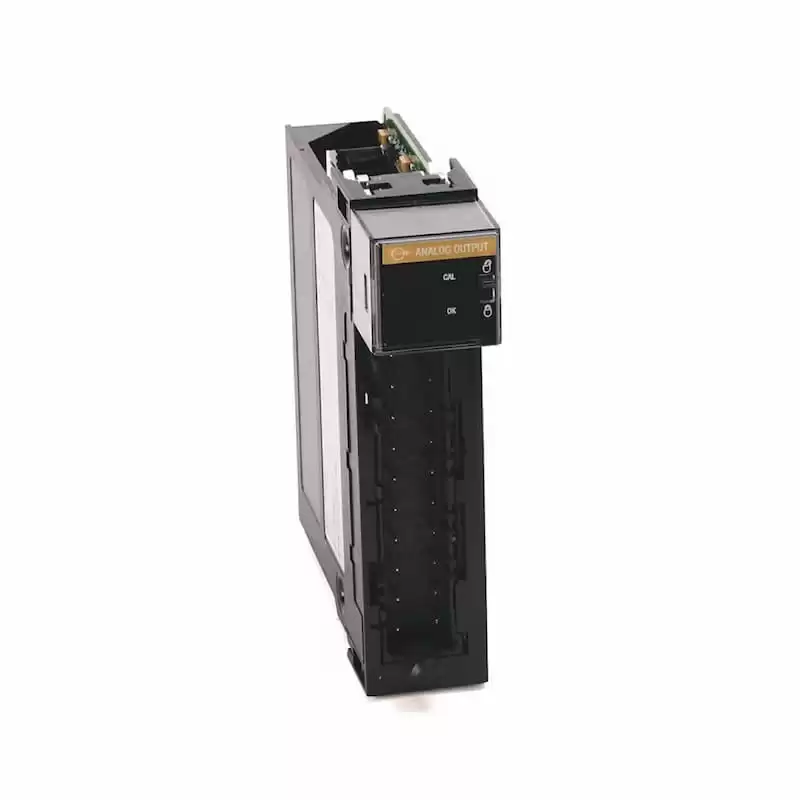

Allen-Bradley 1756-OF8 ControlLogix 8 Point Analog Output Module
Allen-Bradley 1756-OF8
ControlLogix analog I/O modules are interface modules that convert analog signals to digital values for inputs and convert digital values to analog signals for outputs. Controllers can then use these signals for control purposes.
Using the producer/consumer network model, ControlLogix analog I/O modules produce information when needed while providing additional system functions.
1756-OF8 Specifications
| Number of Inputs |
8 voltage or current outputs |
| Module Location |
1756 ControlLogix Chassis |
| Backplane Current |
150mA @ 5.1V dc & 210mA @ 24V dc |
| Backplane Power |
5.8W |
| Power Dissipation within Module |
4.92W - 8 channel current |
| Thermal Dissipation |
16.78 BTU/hr. |
| Output Range |
+/- 10.4V
0 to 21mA |
| Resolution |
15 bits across 10.4V - 320µV/bit – Voltage
15 bits across 21mA - 650nA/bit – Current |
| Data Format |
Left justified, 2s complement – Integer mode
IEEE 32 bit – Floating point mode |
| Open Circuit Detection |
Current output only (Output must be set to >0.1mA) |
| Output Overvoltage Protection |
24V dc |
| Output Short Circuit Protection |
Electronically current limited to 21mA or less |
| Drive Capability |
>2000 – Voltage
0-750 – Current |
| Output Settling Time |
<2ms to 95% of final value with resistive loads |
| Calibrated Accuracy(1) |
Better than 0.05% of range from 4mA to 21mA, -10.4V to 10.4V |
| Calibration Interval |
Twelve months – Typical |
| Output Offset Drift with Temperature |
50 µV/°C – Voltage
100nA/°C – Current |
| Gain Drift with Temperature |
25 ppm/°C – Voltage
520µV/°C
50 ppm/°C – Current
1.05µA/°C |
Module Error over Full
Temperature Range(1) |
0.15% of range – Voltage
0.3% of range – Current |
| Module Scan Time for all Channels |
12ms minimum – Floating point mode
8ms minimum – Integer |
Isolation Voltage
User to system |
250V
100% tested at 2550V dc for 1 second |
| Module Conversion Method |
R-Ladder DAC, monotonicity with no missing codes |
| RTB Screw Torque (NEMA) |
7-9 inch-pounds (0.8-1Nm) |
| Module Keying (Backplane) |
Electronic |
| RTB Keying |
User defined |
| RTB and Housing |
20 Position RTB (1756-TBNH or TBSH)(2) |
