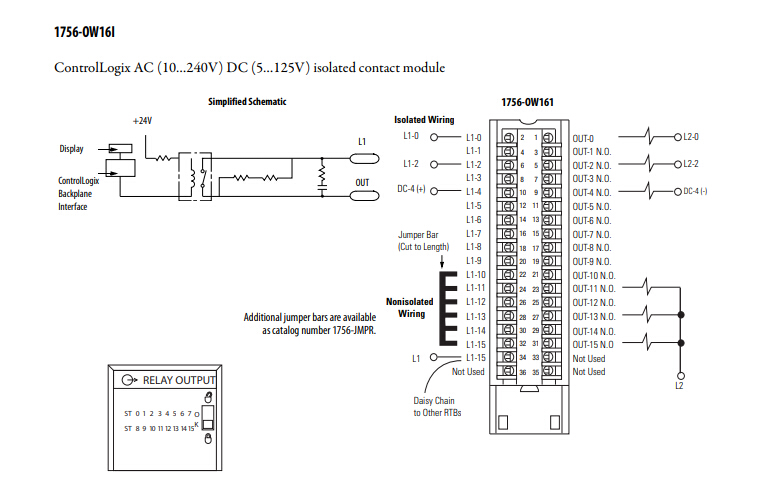

The 1756-OW16I ControlLogix AC/DC Isolated Contact Module by Allen-Bradley is a ControlLogix contact module with 16 Normally-Open (NO) individually-isolated outputs with a pilot duty rating of C300/R150. The module has a DC and AC operational voltage range of 5-125V DC and 10-240V AC respectively. The 1756-OW16I’s output delay time for both ON to OFF and OFF to ON is 10ms and it draws a backplane current of 150mA at both 5.1V and 24V DC and it has a total backplane power of 4.4W. It has a thermal dissipation of 15.35 BTU/hr and dissipates 4.5W at 60 °C. Each outpoint can accommodate a minimum current load of 10mA and a current leakage of 1.5mA per point.
The 1756-OW16I contact module has an initial contact impedance of 100mï— at 6V, 1A, and it has a load-dependent switching frequency of 0.3Hz. It has a mean bounce time of 1.2ms with an expected contact life of 300 kHz resistive and one of 100 kHz inductive. The 1756-OW16I has a scheduled output with 16.7s synchronization time with respect to Coordinated System Time (CST), and it has a circuit isolation voltage of 250V with a basic insulation type tested at 1350V AC for 2s between outputs-to-backplane and output-to-output. The 1756-OW16I has a designated T4 North America temperature code and an open enclosure. Its operational temperature ranges between 0 and 60 °C at a humidity of 5-95% without condensation.
|
Attribute
|
|
1756-OW16I
|
|
|
|
|
|
Outputs
|
|
16 N.O. individually isolated
|
|
|
|
|
|
Pilot duty
|
|
C300/R150
|
|
|
|
|
|
Operating voltage range
|
|
5…125V DC
|
|
|
|
10…240V AC
|
|
|
|
|
|
Current draw @ 5.1V
|
|
150 mA
|
|
|
|
|
|
Current draw @ 24V
|
|
150 mA
|
|
|
|
|
|
Total backplane power
|
|
4.4 W
|
Allen Bradley 1756-OW16I
Allen-Bradley 1756-OW16I I/O Module, Digital Output, 16 Channel, 125VDC, 125/240VAC
Email:sales3@amikon.cn
|
Part Number:
|
1756-OW16I
|
|
Series:
|
ControlLogix
|
|
Module Type:
|
Isolated Relay Output Module
|
|
Outputs:
|
16-Point Individually Isolated
|
|
Operating Voltage:
|
10-265 Volts AC, 5-150 Volts DC
|
