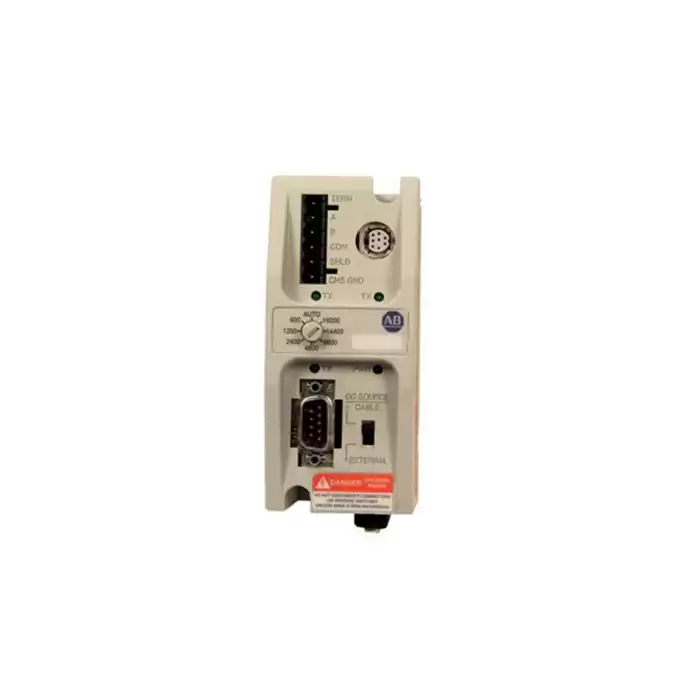

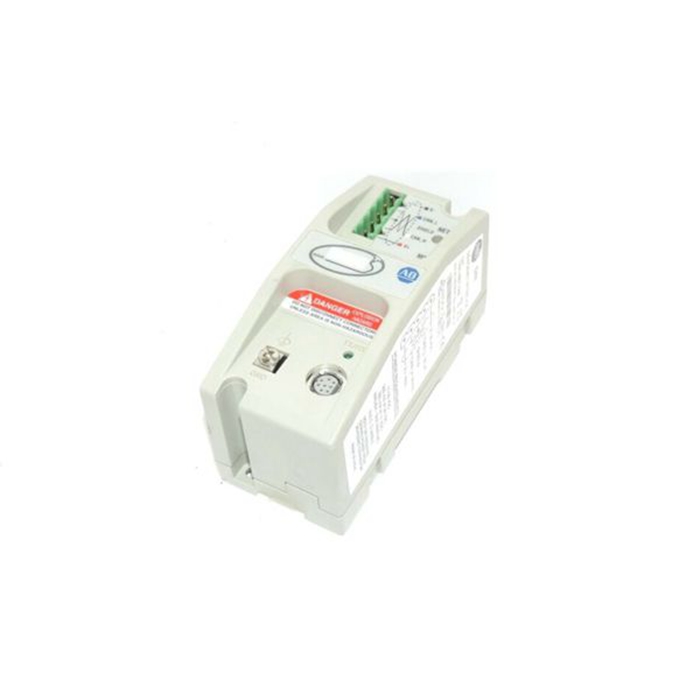

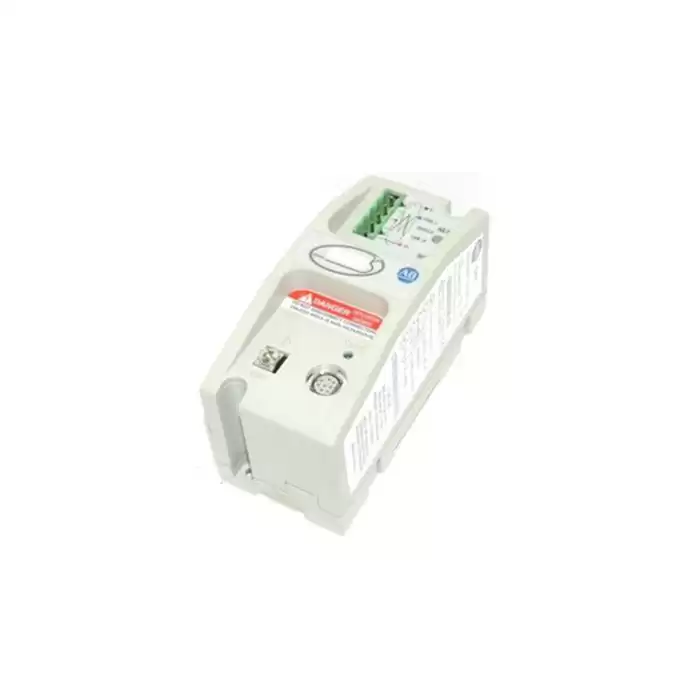

The 1761-NET-AIC is an Allen Bradley MicroLogix 1000 advanced interface controller. This module is classified under the MicroLogix 1000 series. It enables of DF1 enabled devices to communicate with DH485 network. It is compatible with MicroLogix 1000, 1200, and 1500 controllers and SLC controllers as well. The 1761-NET-AIC is powered by an external 24VDC power supply that is connected to the external power terminal.
The 1761-NET-AIC is a DIN rail mountable or panel mounted component and powered in Two (2) such as supplying an external 24VDC supply voltage or via the communication cable connected to the device being bridged.
The 1761-NET-AIC Advanced Interface converter has Two (2) RS232 communication ports with physical interfaces of 9-pin SUB-D connector type and 8-pin mini-DIN circular connector type. This AIC also has a DH485 Phoenix plug connector to enable connection to the DH485 network. The communicate data rate of this AIC is configured via the provided selector switch mounted on the front panel of this AIC.
