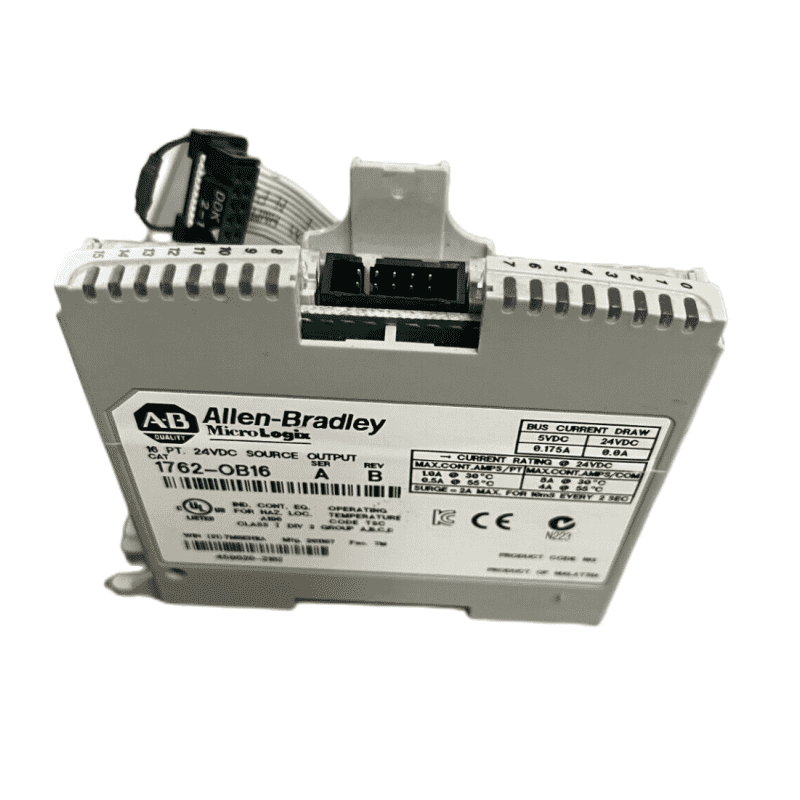

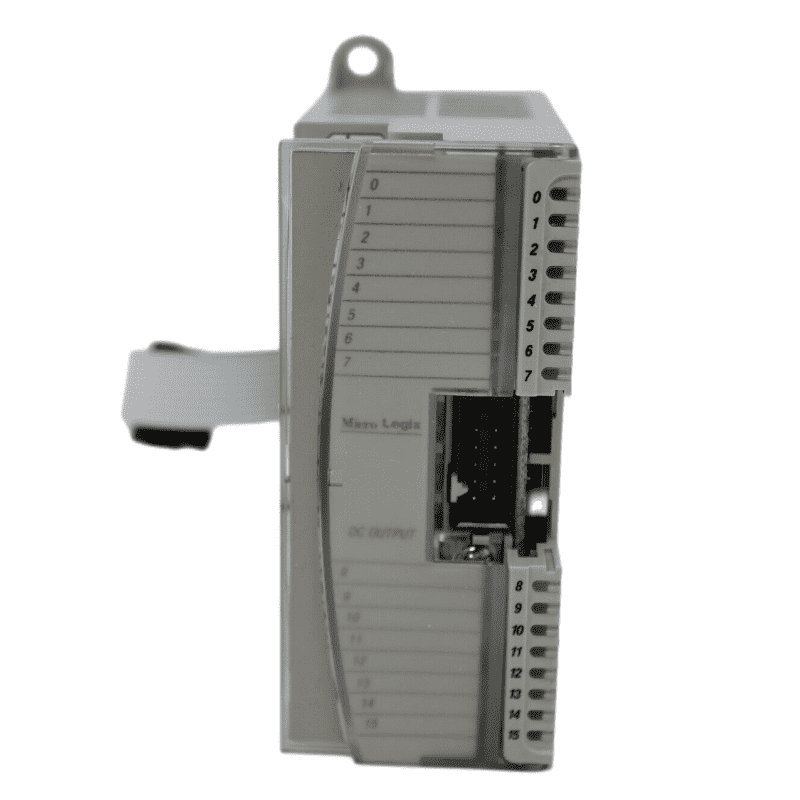

Product Details:
- Number of digital outputs: 16
- Type of output voltage: DC
- Type of digital output: Relay
- Type of electric connection: Screw connection
- Heat dissipation, max: 2.9 W @ 30 °C (86 °F)
- Continuous current per common, max: 8 A @ 30 °C (86 °F)
- Continuous current per module, max: 8 A @ 30 °C (86 °F)
- Continuous current per point, max: 1 A @ 30 °C (86 °F)
- Bus current draw, max: 175 mA @ 5V DC (0.88 W)
- Signal delay, resistive load: On delay: 0.1 ms Off delay: 1.0 ms
- Power supply distance rating: 6 (The module may not be more than 6 modules away from the power supply.)
- Isolated groups: Group 1: Outputs 0...15
- Surge current, max : 2.0 A (Repeatability is once every 2 seconds at 55 °C (131 °F), once every second at 30 °C (86 °F) for a duration of 10 ms.)
- Output group to backplane isolation: Verified by one of the following dielectric tests: 1200V AC for 1 s or 1697V DC for 1 s 75V DC working voltage (IEC Class 2 reinforced insulation)
