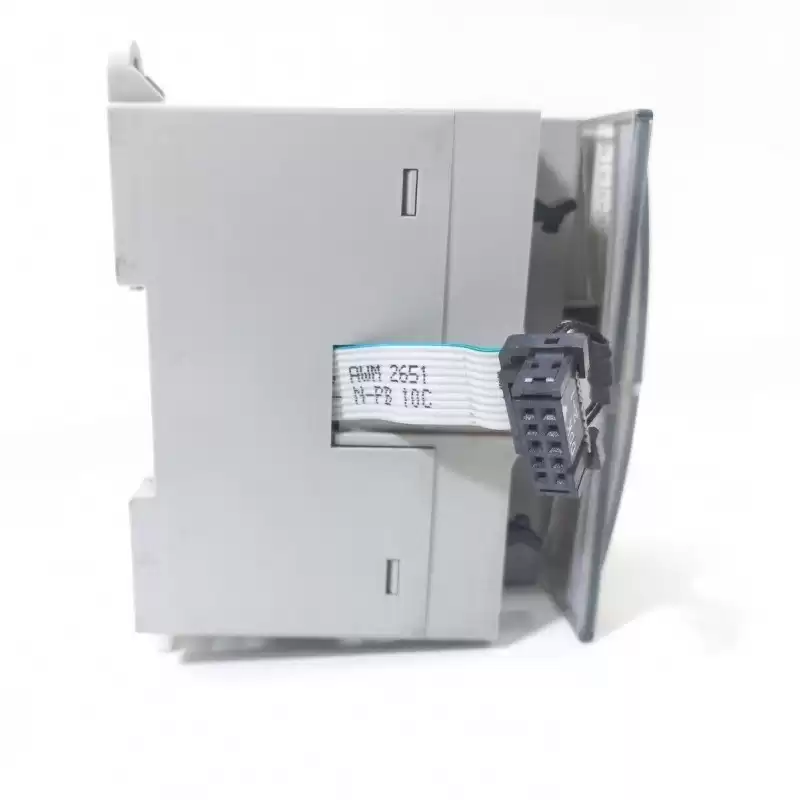

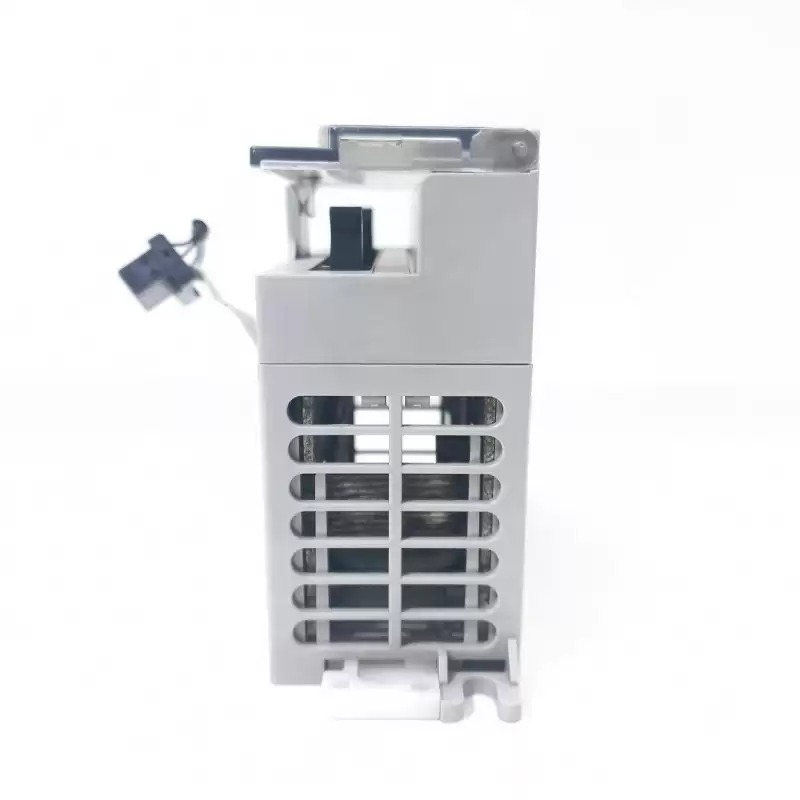

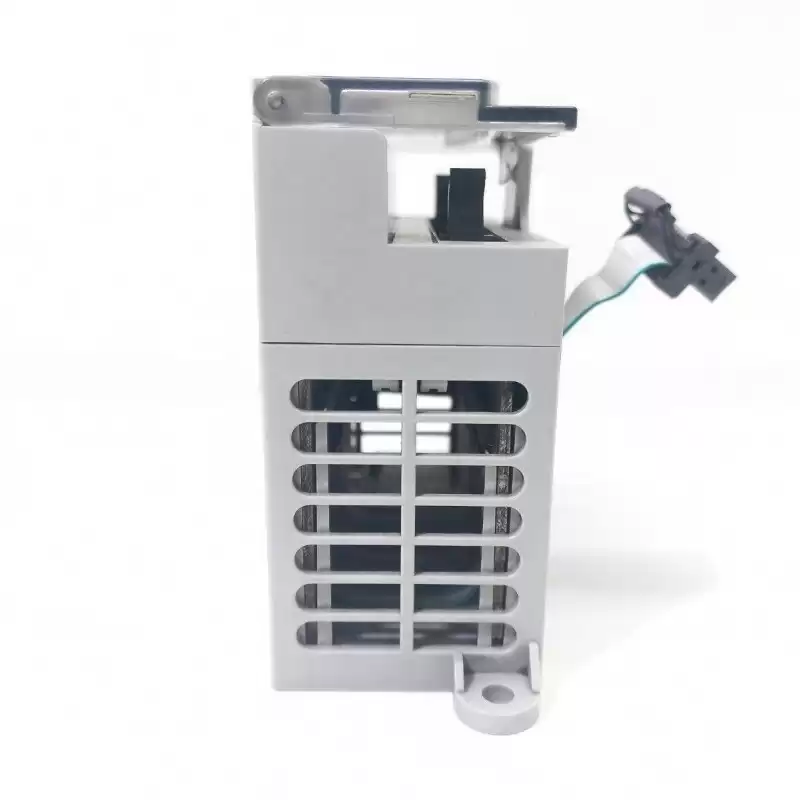

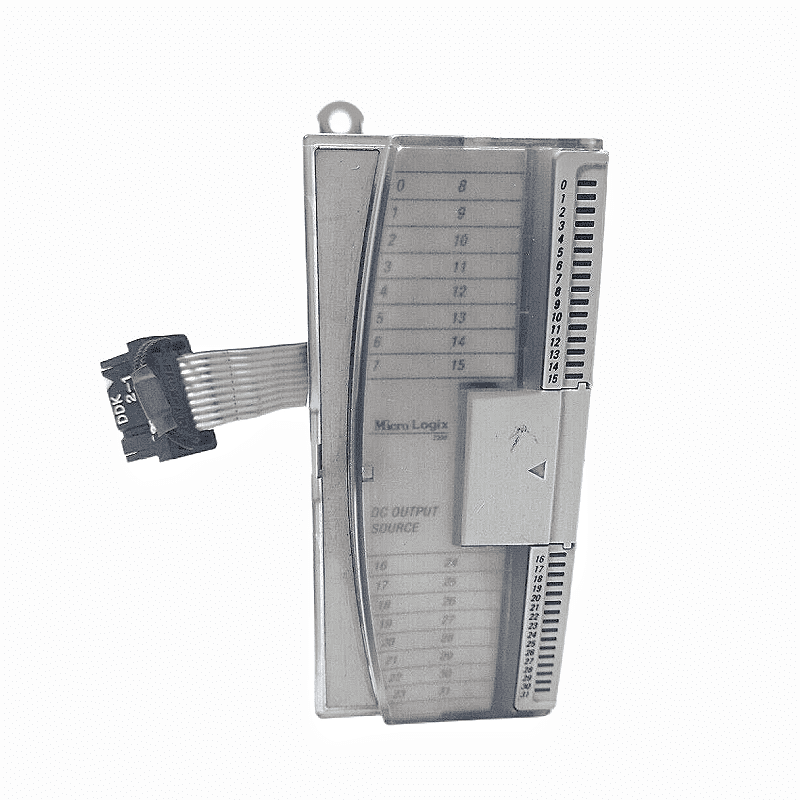

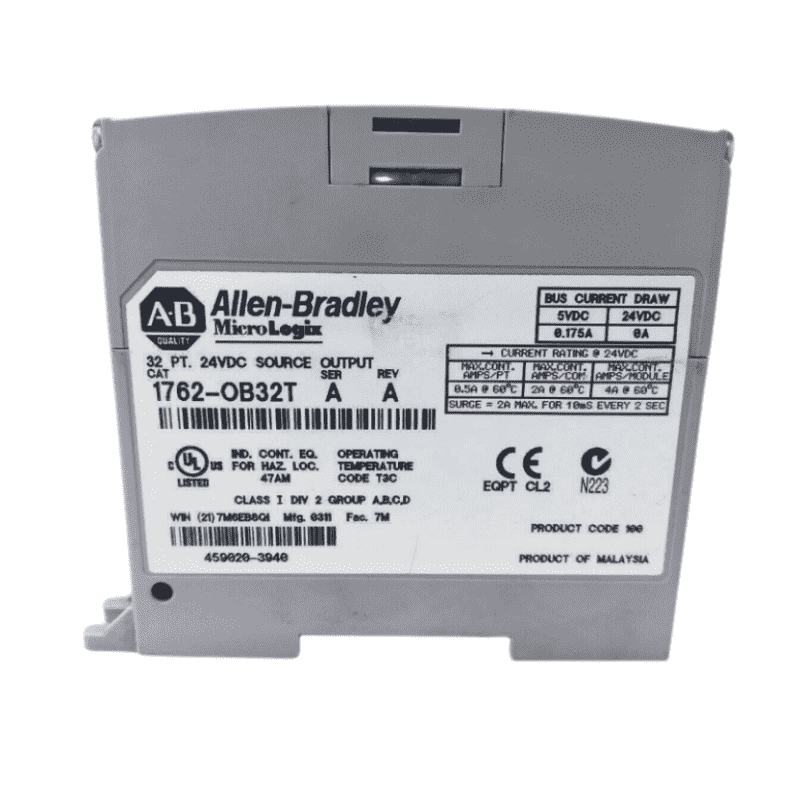

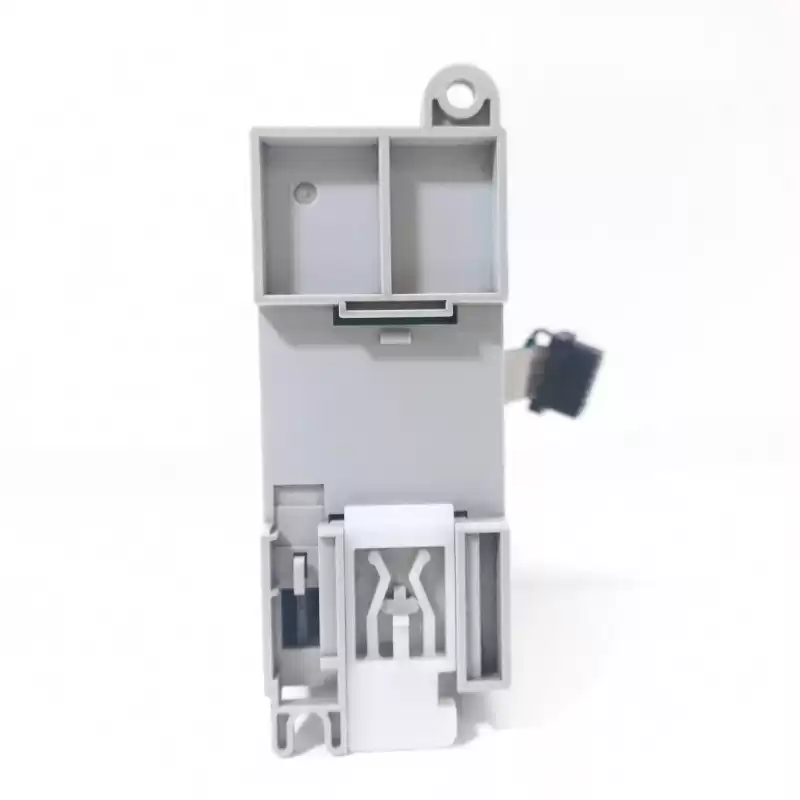

Allen-Bradley 1762-OB32T Output Module

Module NO:1762-OB32T

Brand:Allen-Bradley

Condition:New

Warranty:12 months

Regarding product price: Affected by market fluctuations, please contact us to confirm the price of the final transaction before placing an order



   Product Details:

  • Number of digital outputs: 32
  • Type of output voltage:DC
  • Type of digital output: Relay
  • Type of electric connection: Screw connection
  • Heat dissipation, max: 3.4 W @ 26.4 DC
  • Continuous current per common, max:2.0 A @ 60 °C (140 °F)
  • Continuous current per module, max: 4.0 A @ 60 °C (140 °F)
  • Continuous current per point, max:0.5 A @ 60 °C (140 °F)
  • Bus current draw, max: 175 mA @ 5V DC
  • Signal delay, resistive load:On delay: 0.5 ms Off delay: 4.0 ms
  • Power supply distance rating:6 (The module may not be more than 6 modules away from the power supply.)
  • Isolated groups:Group 1: Outputs 0...15, Group 2: Outputs 16...31 (internally, connected to common)
  • Surge current, max :2.0 A (Repeatability is once every 2 s at 60 °C (140 °F) for 10 ms.)
  • Output group to backplane isolation: Verified by one of the following dielectric tests: 1200V AC for 2 s or 1697V DC for 2 s, 75V DC working voltage (IEC Class 2 reinforced insulation)
  • Output group to output group isolation:Verified by one of the following dielectric tests: 1200V AC for 2 s or 1697V DC for 2 s, 75V DC working voltage (IEC Class 2 reinforced insulation)

1762-OB32T
