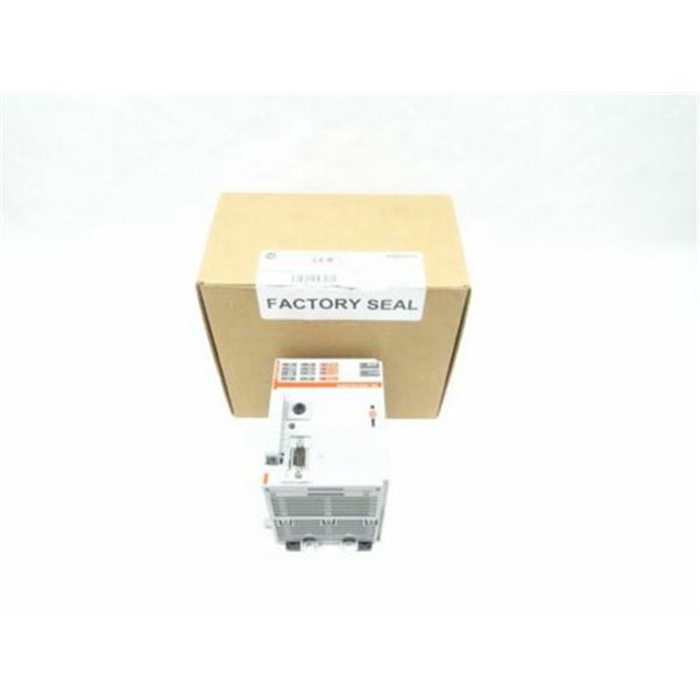

ALLEN BRADLEY 1768-L45S Brand New Allen Bradley Compact GuardLogix CPU 3M/1M In Stock

1768-L45S Compact GuardLogix Controllers User Manual

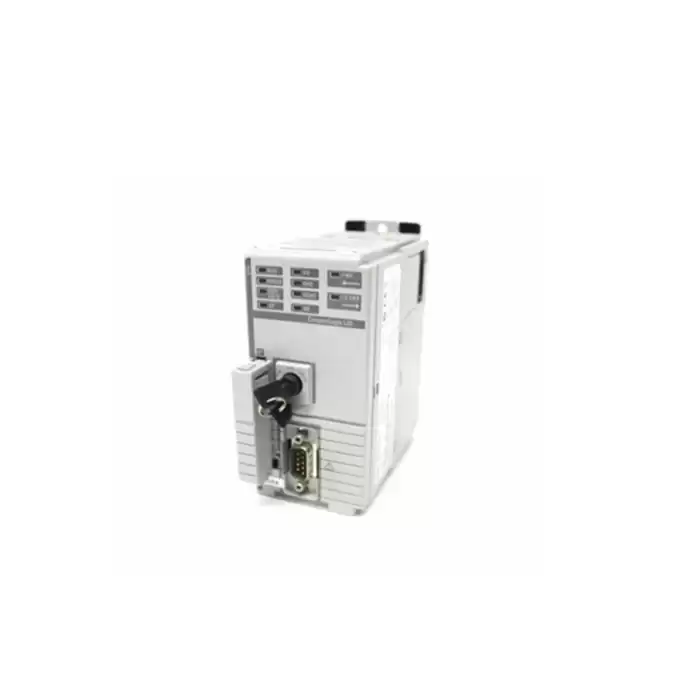

The 1768-L45S is an Allen-Bradley Compact GuardLogix controller that features the same CompactLogix capability with an integrated safety feature. This controller is compatible for use in applications that require up to Safety Integrity Level (SIL) 3 requirements and Performance Level (PLe) applications and implements 1oo2 safety architecture.

The 1768-L45S supports I/O expansion. It may can handle up to Thirty (30) I/O modules, distributed up to Three (3) I/O banks. Specifically, it may use Four (4) 1768 Local I/O modules and Thirty (30) 1769 Compact I/O modules.

The 1768-L45S has 3 MB memory allocated for standard functionalities such as automating a process or machine and another 1 MB allocated for safety tasks. It uses a 1784-CF128 CompactFlash card memory module and provided with an embedded RS232 communication interface.

The 1768-L45S supports installation of various types of communication modules such as Ethernet I/P standard and safety, ControlNet Standard and safety and DeviceNet modules.

The 1768-L45S support panel or DIN rail mounting. Appropriate mounting clearances must be followed such as 105 mm or 4.13 inches for top and bottom are of the controller and 90 mm or 3.54 inches clearance for the right and left side of the controller. These clearances should be able to promote adequate air flow for maintaining the required operating temperature of 0-60 Degree Celsius. Climate control devices such as heater and fan may also be installed.

The 1768-L45S has a 2.1A back-plane current draw at 24 V DC. The controller has a 9.5 W power dissipation and a 50.4 W power consumption. It comes with an isolation voltage of 30 V DC continuous power with a functional insulation type. The 1768-L45S has been tested to withstand 500V DC for 6 s with the RS-232 isolated communication ports at 38.4 Kbps max. It weighs approximately 0.45 kg with dimensions of 132 x 90 x 122 mm and it can be DIN rail or Panel mounted.
The 1768-L45S controller has an operating temperature 0 - 60 deg. Celsius, a -40 - 85 deg. Celsius non-operating temperature, and a 5 - 95% relative humidity. It also has an operating vibration of 5g at 10 - 500 Hz, an operating shock of 30 g, and a 50 g non-operating shock.
