Allen-Bradley 1768-PA3

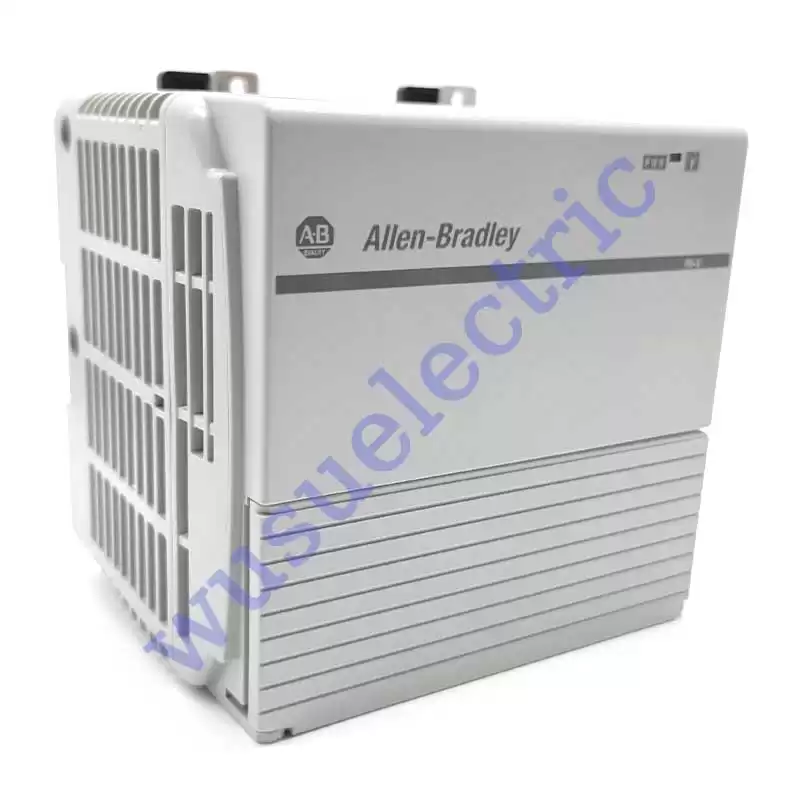

The Allen-Bradley 1768-PA3 is a CompactLogix Power Supply. This Power Supply has an input Voltage range of 85 - 265VAC or 108 -132VDC. It has an integrated Overcurrent protection of 15A. This power supply provides backplane current and energizes the modules connected the backplane.

The Allen-Bradley 1768-PA3 is a CompactLogix power supply module. It is a dual-input power supply whose primary purpose is to provide power through the CompactLogix backplane. This power supply operates at 85 - 265VAC or 108 -132VDC. Before powering up the system, install a 1768 CompactLogix controller in the same bank as the power supply. To avoid issues, never install a 1769 power supply to a 1768 CompactLogix backplane.

The 1768-PA3 module has an open-type enclosure and it can be mounted using DIN rail or panel mount. LED status indicators let the user monitor the module’s current state in real time. The 1768-PA3 can be from Series A or B and has a wiring category of 1 for the power ports. Its compatible wire sizes are 14 to 22 AWG stranded or solid copper wire rated at 167 degrees Fahrenheit with a maximum isolation of 1.2 millimeters. The 1768-PA3 has an internal overcurrent protection due to the soldered non-replaceable fuse. It also comes with a user-supplied maximum overcurrent protection of 15 Amps and its typical efficiency rate is 75%, and a maximum input power of 120 VA or 120 W. The 1768-PA3’s maximum inrush current is 50 Amps at 85 to 132 Volts AC and 80 Amps at 195 to 265 Volts AC while its power dissipation is 30 W.

The Allen-Bradley 1768-PA3 is a CompactLogix Power Supply. This Power Supply is used exclusively used for the 1768 product family. It is a power supply with selectable inputs, operating at Voltage categories of 85 - 265VAC or 108 -132VDC. This Power supply module provides backplane power which is used by the attached module to energize their individual circuitry. This power supply does not supply output power to the output modules. The 1768-PA3 features a maximum input power of 120VA / 120W, depending on the input voltage.

The 1768-PA3 power supply is compatible for use with 1768 CompactLogix Controllers such as 1768-L43, 1768-L43S, 1768-L45 and 1768-L45S. When installing modules to any 1768 rack, It is important to consider the power supply distance rating of each module. Power Supply distance rating ensures that the module will still be able to receive the necessary backplane power from the power supply. It also ensures that the power supply is appropriately sized up. If used with 1769 Compact I/O modules, the 1768-PA3 can accommodate up to Eight (8) modules in the same bank. In the 1768 system, the distance rating is the distance between 1769 I/O modules and the controller.

This power supply is provided with a single LED indicator. Ideally, when power is applied, the LED should turn Green. If the LED remained OFF, verify if the input power is active, a short or overload might be active in the 1768 system or the power supply needs to be replace. When this LED indicator turns RED, it may mean that the power output to the backplane is not valid, the controller needs to be replaced or a communication, motion module is defective.
