Allen-Bradley 1769-IF16C

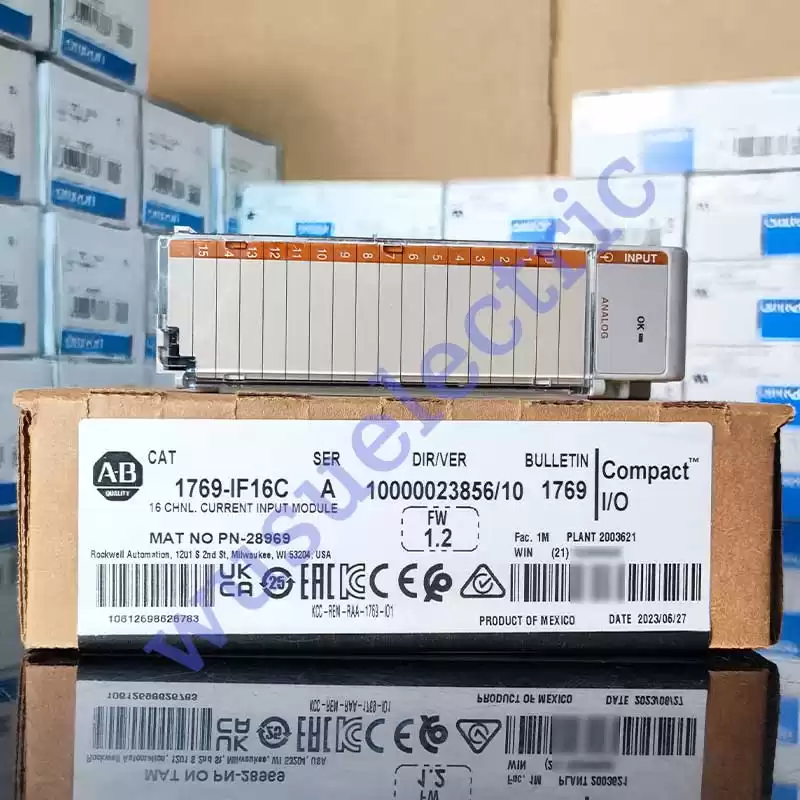

The Allen-Bradley 1769-IF16C is a Compact I/O high-density analog input module with Sixteen (16) single-ended input channels. This module is designed to accept 0-20 mA and 4-20 mA input signals with resolution of 16 bits (unipolar) and 15 bits plus sign (bipolar). This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500 controller.

The Allen-Bradley 1769-IF16C is a Compact I/O module that is compatible for use with MicroLogix 1500 Programmable Logic Controller (PLC) and CompactLogix Programmable Automation Controllers (PAC). The 1769-IF16C features Sixteen (16) single-ended input channels that are designed to interface field instruments that provides 0-20 mA or 4-20 mA analog Current signal towards the module’s input channels.

The 1769-IF16C can be used for interfacing of field instruments such as Transmitters, controllers; Accept feedback signals of Variable Frequency Drives (VFD), modulating valves, panel meters, data loggers and similar devices. It may also be used to received conditioned output signals of signal isolators or splitters.

The 1769-IF16C has an internal Signa-Delta Analog-to-Digital (ADC) converter. This converter translates the received analog signal into digital data with resolution of 16 bits when configured as unipolar and 15 bits when configured as bipolar. This module accepts full-scale analog input signal ranges of 0-21 mA and 3.2-21 mA.

The 1769-IF16C does not require calibration. By configuring an input filter, noises may be eliminated and insignificant changes are neglected by the module.

If used with CompactLogix version 20.

The 1769-IF16C has a BUS draw current of 190mA at 5 Volts DC and 70mA at 24 Volts DC and dissipates 4.0W of heat. It has an input overall accuracy of 0.5% at 25 degrees Celsius (77 degrees Fahrenheit) for 16 Hertz, 50 Hertz, and 60 Hertz selectable filters, and an input drift accuracy of ±0.0045% per degrees Celsius. It has ±0.03% non-linearity, ±0.03% at 16 Hertz filter repeatability, and 1.25% at 16 Hertz filter module error margin.

The 1769-IF16C has a maximum overload of ±28 mA at 7.0 Volts DC at the input terminal and is built with an IEC reinforced insulation with an isolation voltage of 30 Volts DC tested at 710 Volts DC/500 Volts AC for 1 minute between input group and BUS isolation. It has an operational shock rating of 30G for 11 milliseconds in a panel-mounted installation style at 20G for 11 milliseconds on a DIN rail. The 1769-IF16C has a functional temperature ranging between 0 and 60 degrees Celsius (32-140 degrees Fahrenheit) and it is shipped in a temperature range around -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). It weighs approximately 281 g (0.62 pounds) and has shipping dimensions of 118 x 87 x 35 millimeters (4.65 x 3.43 x 1.38 inches).
