Product Details:

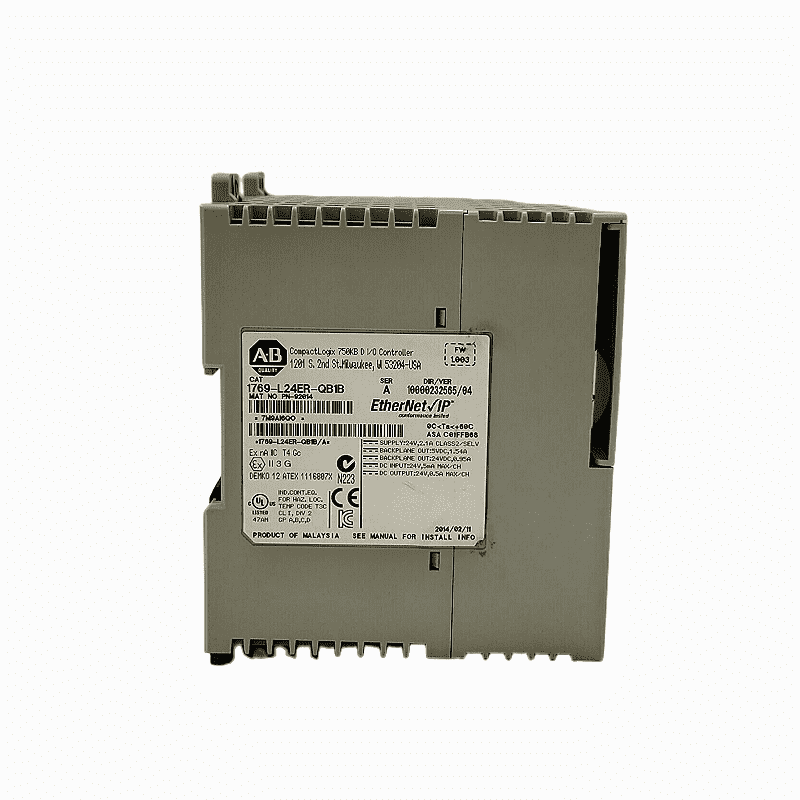

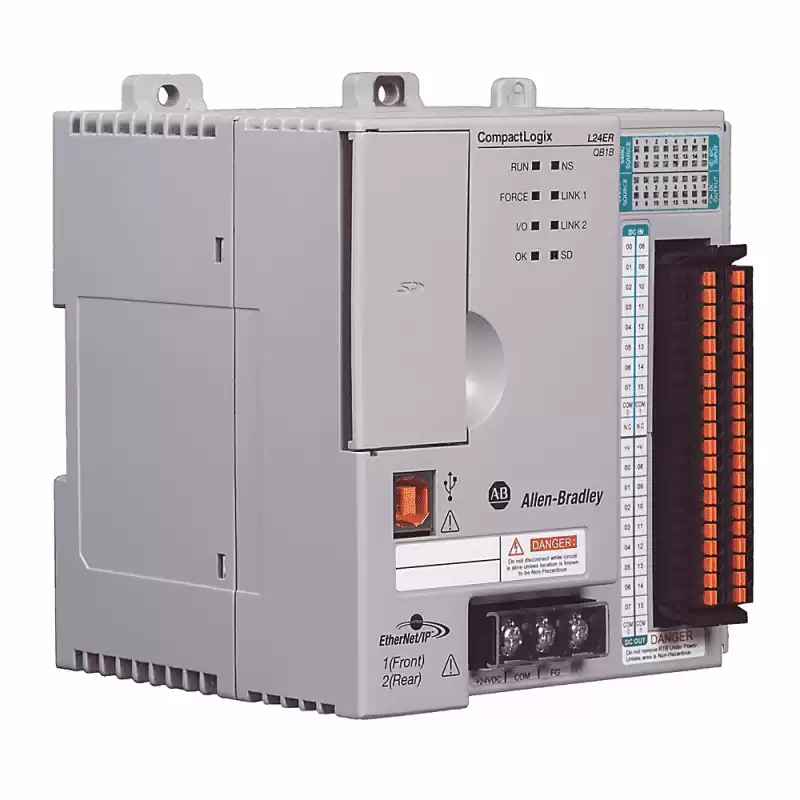

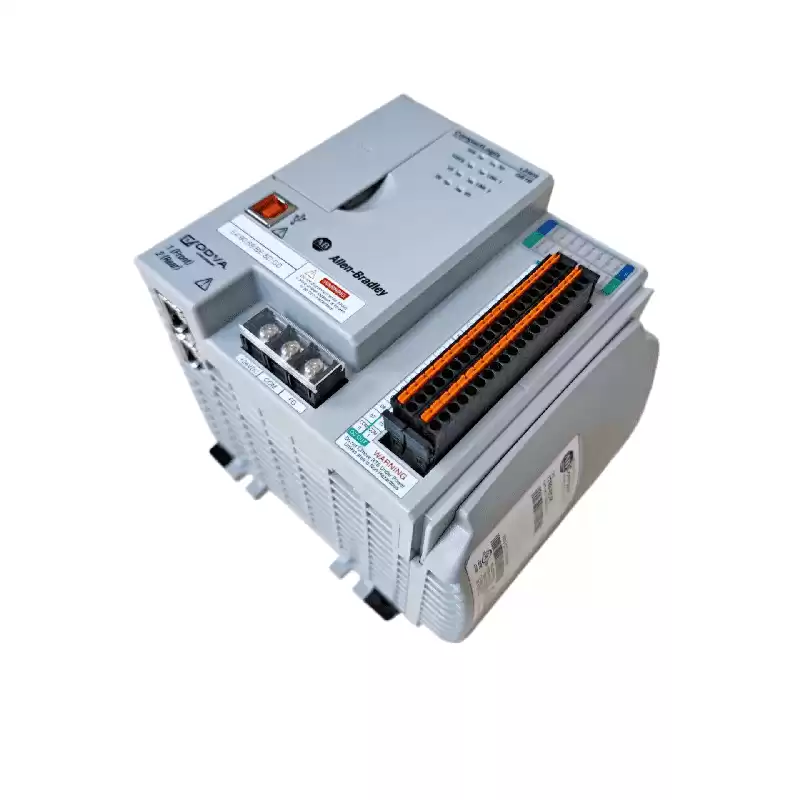

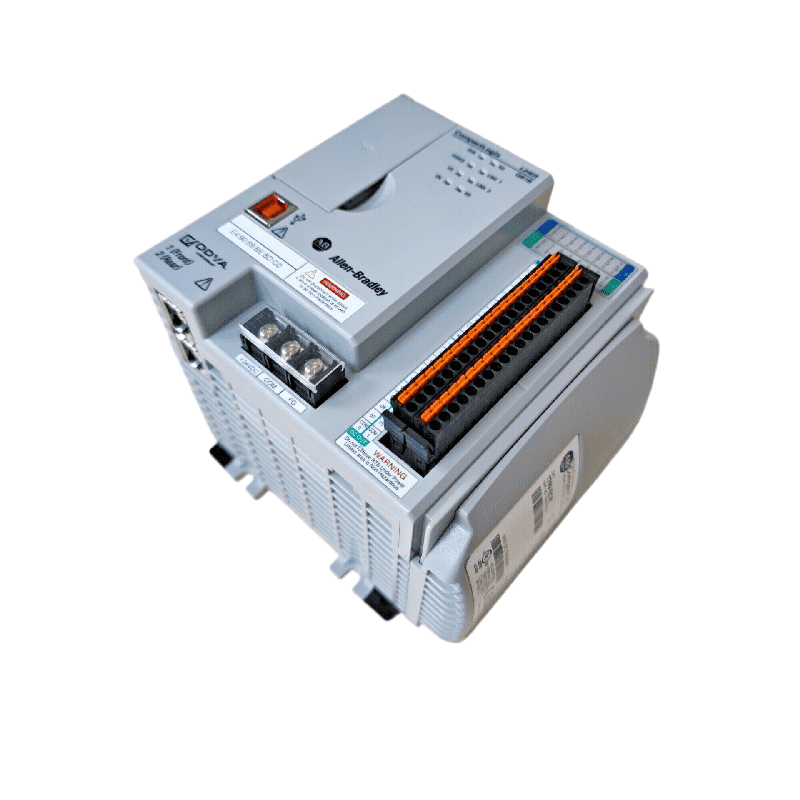

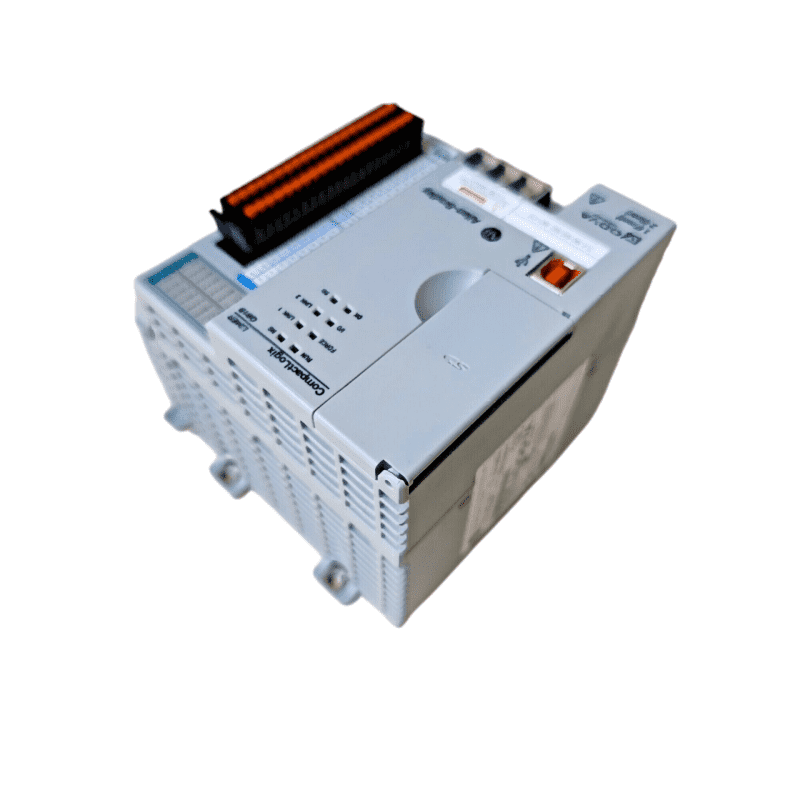

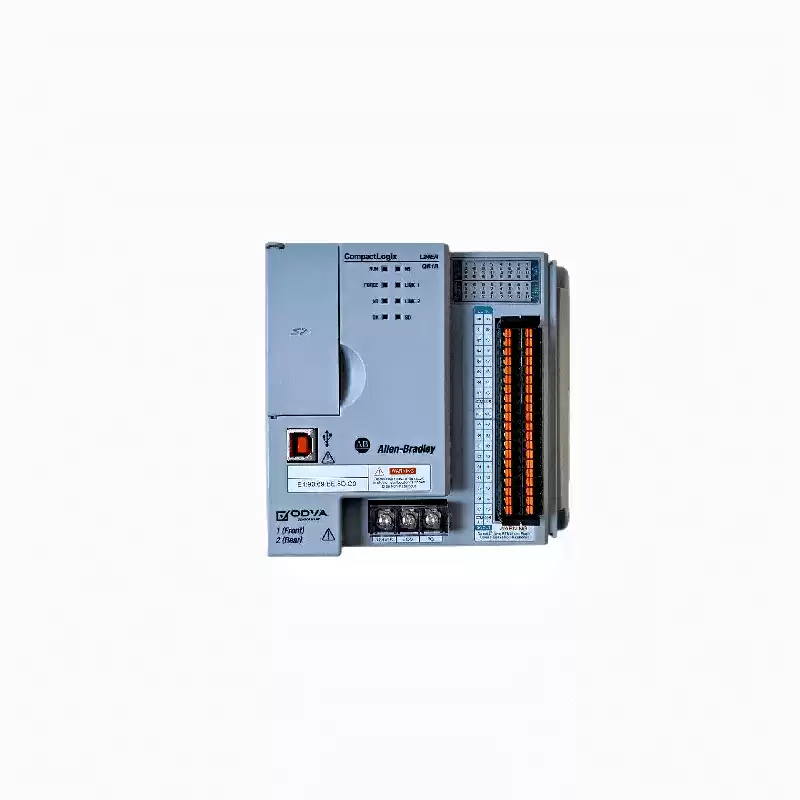

- The Allen-Bradley 1769-L24ER-QB1B is a CompactLogix 5370 L2 packaged controller that comes with Thirty-Two I/O channels and Two Ethernet communication ports. These I/O channels consists of up of Sixteen DC input and Sixteen DC output channels. For the input channels, it operates with nominal voltage of 24 Volt DC with operating range of 10 to 28.8 VDC.
- The 1769-L24ER-QB1B current draws are 1.54 A at 5 Volts DC and 0.95 A at 24 Volts DC. At an off-state, it has a maximum current of 1.5 mA and a maximum voltage of 5 Volts DC. Its on-state currents are 2 mA at 24 Volts DC per channel and 5 mA at 24 Volts DC per channel, which are the minimum and maximum respectively.
- This controller' s output channels have a nominal voltage of 24 Volts DC and an operating voltage range of 20.4 to 26.4 Volts DC. When in an on-state, it has a maximum voltage drop of 1 Volts DC at 1 A and a maximum current of 0.5 mA at 24 Volts DC per channel.
- The 1769-L24ER-QB1B current per point is 0.83 A at 40 degrees Celsius and 0.5 A at 60 degrees Celsius, while its current per module is 6.64 A at 40 degrees Celsius and 4 A at 60 degrees Celsius.
