Brand Name                 AB

Product reference      1769-OA8

The 1769-OA8 is a compact I/O module in Allen-Bradley’s 1769 I/O series. This digital A/C module runs on 120-240 volts of AC power.

Its operating temperature is between 32 and 140 degrees Fahrenheit and its storage temperature is between -40 and 185 degrees Fahrenheit. The1769-OA8 can mount onto a panel or a DIN rail, and it can operate at a shock rating of up to 30 g on a panel mount and at up to 20 g on a DIN rail mount.

Like other 1769 modules, the 1769-OA8 has no enclosure. As a result, it requires more safety precautions than other Allen-Bradley modules. Keep it away from UV radiation at all times, take care to avoid electrostatic discharge buildup, and make sure the module’s storage and operating environment are free of debris.

Despite the extra specifications, the 1769-OA8 also comes with several built-in safety features. These include a finger-safe cover for the I/O sensors and actuators, optically isolated digital and field circuits, and c-UL, CE, and C-Tick certifications. Shipping the module is also convenient because it is small (4.65 x 1.38 x 3.43 in.) and light (.61 lbs for the module alone, with a shipping weight of 2 lbs).

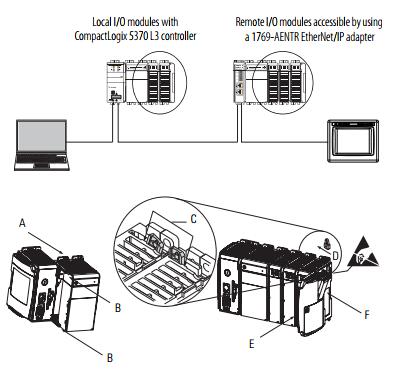

1769 Compact I/O Modules The 1769 Compact I/O modules can be used with the CompactLogix 5370 L2 and L3 controllers and 1768 CompactLogix controllers as follows: • Local I/O modules • Remote I/O modules accessible by using a 1769-AENTR EtherNet/IP adapter The modules mechanically lock together by means of a tongue-and-groove design and have an integrated communication bus that is connected from module to module by a moveable bus connector. Each I/O module includes a built-in removable terminal block with finger-safe cover for connections to I/O sensors and actuators. The terminal block is behind a door at the front of the module. I/O wiring can be routed from beneath the module to the I/O terminals.

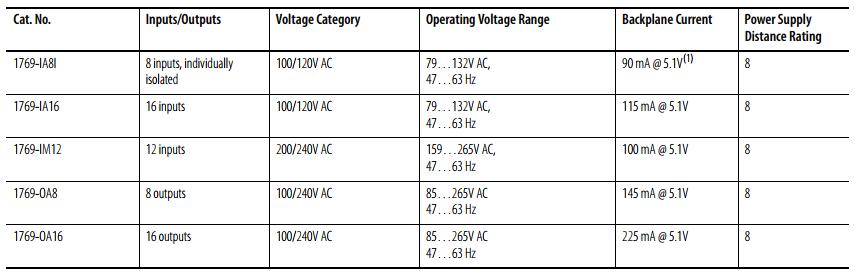

Power Supply Distance Ratings Check each module’s specification table for the power supply distance rating. This indicates how many slot positions the module can be from the power supply. 1769 AC Digital Modules
