Allen Bradley 1769-OB16 SER A Output Module Compact I/O (IN STOCK&READY FOR SHIP)
Contact: Miya
Job Title: Sales Manager
Skype: live:miyazheng520
Email: sales@amikon.cn
Tel: 86-18020776792(Whats App )
QQ :2851195450
Brand Name AB
Product reference 1769-OB16

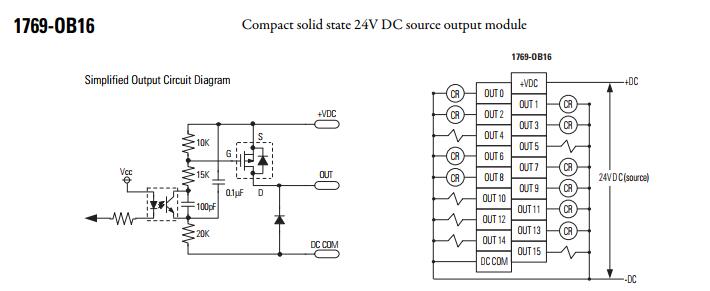

The 1769-OB16 compact solid output module is a device by Allen Bradley with 16 outputs alongside a 24-volt DC voltage source. The 1769-OB16 module has a functioning voltage range between 20.4 to 26.4 volts DC, and it has a delay output voltage of 0.1ms and an off-mode delay output of 1.0ms. The 1769-OB16 has a 200mA draw current at 5.1V, and heat dissipation at 2.11Watt. The 1769-OB16 is a module with a 1.0mA leakage current around a 26.4V DC, and an on-state minimum current of 1.0mA.
The 1769-OB16 has a 1.0V (max) drop voltage (on-state) at at 1.0mA, and with a 1.0 Ampere at 30 °C (86 °F) and a 0.5 Ampere at 60 °C (140 °F) current per point (max). The1769-OB16 also has an 8.0 A at 30 °C (86 °F) and a 4.0 A at 60 °C (140 °F) current per module (max), and a current of 2.0 A for 10ms repeatable every 2 s (surge). It is fitted with IEC Class 2 reinforced insulation, which guards against voltage as high as 75 volts DC. It has 8 modules, a single slot width, and can be mounted on a DIN rail or a panel mount. The 1769-OB16 module has dimensions of 4.65 x 1.38 x 3.43 in. (118 x 35 x 87 mm), and a weight of 0.61 lb (280 g).
Compact I/O Modules AC Digital Modules 1769-IA8I, 1769-IA16, 1769-IM12, 1769-OA8, 1769-OA16 DC Digital Modules 1769-IG16, 1769-IQ16, 1769-IQ16F, 1769-IQ32, 1769-IQ32T, 1769-IQ6XOW4, 1769-OB8, 1769-OB16, 1769-OB16P, 1769-OB32, 1769-OB32T, 1769-OG16, 1769-OV16, 1769-OV32T Contact Modules 1769-OW8, 1769-OW8I, 1769-OW16 Analog Modules 1769-IF4, 1769-IF4I, 1769-IF4XOF2, 1769-IF4FXOF2F, 1769-IF8, 1769-IF16C, 1769-IF16V, 1769-IR6, 1769-IT6, 1769-OF2, 1769-OF4, 1769-OF4CI, 1769-OF4VI, 1769-OF8C, 1769-OF8V Speciality Modules 1769-ARM, 1769-ASCII, 1769-BOOLEAN, 1769-HSC
