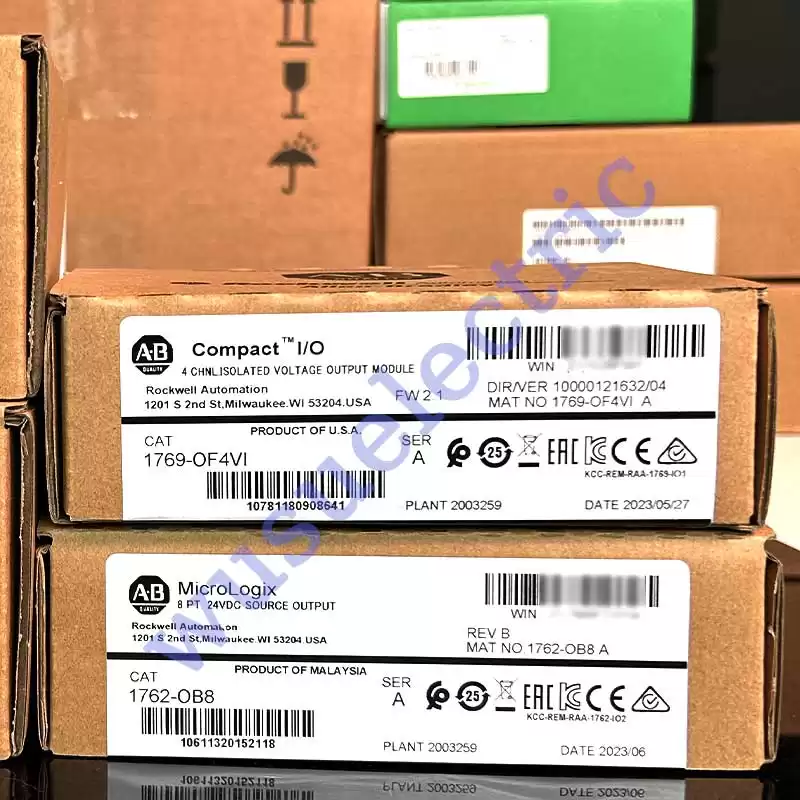

Allen-Bradley 1769-OF4VI

The Allen-Bradley 1769-OF4VI output module is a voltage type of output module that has been designed and manufactured as part of the CompactLogix series. It is an analog output module with 4 outputs that are all individually isolated. The 1769-OF4VI analog output module can support an earth ground for safety. The terminal block that this module uses can be replaced if it breaks or wears out, and so can the modules door.

The Allen-Bradley 769-OF4VI is a compact voltage output isolated module with four individually-isolated outputs. It has a voltage range between 0 to 10V, with a full-scale range of 0 to 10.5, and a 15bit 330 μV/bit resolution. It has a bus current of 165mA at 5V DC and dissipates 2.0 watts of heat. The 769-OF4VI has a 120ms maximum conversion rate and a 2.9ms limited voltage per current. The 769-OF4VI has a maximum output current load of 5mA at a resistive load range of less than or equal to 2 kΩ.

The 769-OF4VI compact voltage module has a capacitive load per output voltage of 1 μF, with no field calibration required. It has a drift accuracy margin of ±0.0086% FS per °C and an accuracy margin between ±0.5. The module error is around ±0.8% at an output ripple of ±0.05% @ 0 to 50 kHz. The 769-OF4VI is protected from short-circuiting and can sustain a maximum short-circuit current of 42mA. It has a power-up response time of less than 0.4ms and it can power down at less than 21ms.

 The 769-OF4VI module has an operating voltage of 30V DC with IEC Class 2 reinforced insulation. It has an approximate weight of 0.60 lbs and has a dimension of 4.65 x 1.38 x 3.43 in. The 769-OF4VI compact voltage module has an 8-module power supply distance with a 22 by 14 AWG solid wire size and a replacement door kit.
