Allen Bradley 1769-OV32T/A 32Pt Output Module

Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450

Brand Name                 AB

Product reference      1769-OV32T

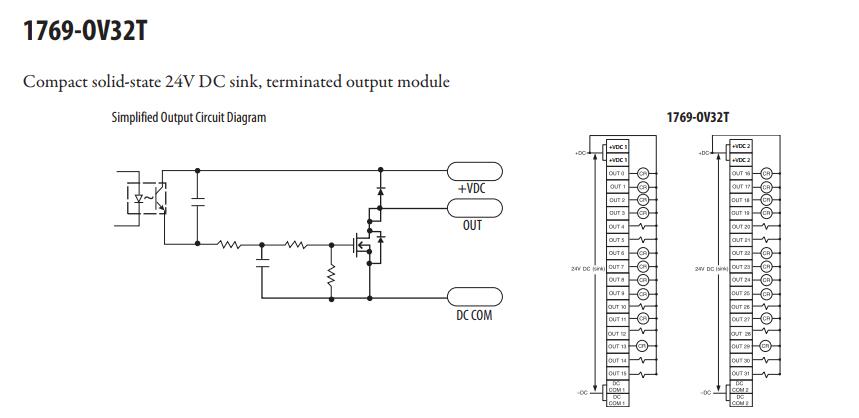

The 1769-OV32T is a DC digital Allen-Bradley CompactLogix I/O module. It is solid state and runs on 10.2-26.4 volts of DC power. The module 32 terminated outputs arranged in groups of 16. It uses 90-degree Celsius (194-degree Fahrenheit) copper wire and has no enclosure. Because the1769-OV32T has no enclosure, keep it away from debris, static, and UV radiation during installation, operation, and storage.

The 1769-OV32T is easy to mount on panel or DIN rail because of its tongue-and-groove connectors. These connectors also allow the module to connect to other I/Os in Allen-Bradley’s 1769 series.

The 1760-OV32T I/O can use a variety of applications including MicroLogix 1500 controllers, 1769-ADN DeviceNet adapters, 1769-AENTR adapters, and CompactLogix controllers. It can take wire sizes between 14-22 AWG for solid wire or between 16-22 AWG for stranded wire.

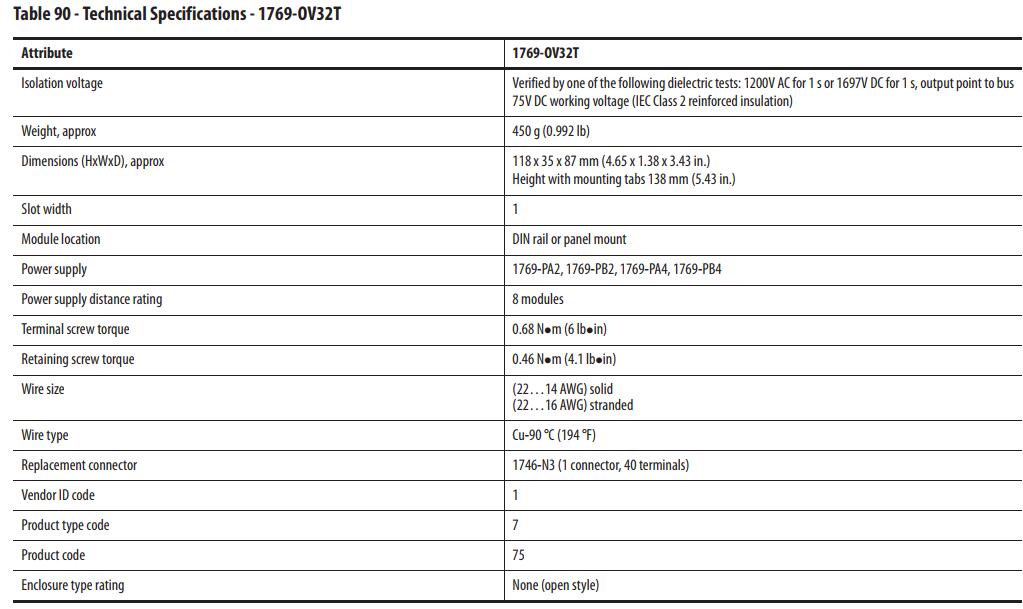

The module weighs approximately 450 g and its shipping dimensions are 118 x 35 x 87 mm.

1769 Compact I/O Modules Specifications

The 1769 Compact I/O™ modules can be used in the following applications: • With a CompactLogix™ controller • For expansion I/O in a MicroLogix™ 1500 controller assembly • In an assembly with a 1769-ADN DeviceNet adapter • In an assembly with a 1769-AENTR Ethernet adapter. Unless connected to a MicroLogix 1500 base, each bank of I/O modules must include its own power supply. Install the I/O modules on a panel with two mounting screws or on a DIN rail. The modules mechanically lock together with a tongue-and-groove design and have an integrated communication bus that is connected from module to module by a moveable bus connector.

I/O Module Overview Each I/O module includes a built-in removable terminal block with fingersafe cover for connections to I/O sensors and actuators. The terminal block is behind a door at the front of the module. I/O wiring can be routed from beneath the module to the I/O terminals.

Once the modules are locked together, the system becomes a rugged assembly. • Upper and lower tongue-and-groove slots guide the module during installation and secure the module within the system. • Removable terminal blocks help ease the wiring task. • Self-lifting, field-wire pressure plates cut installation time. • The patented bus connector with the lock function enables consistent and system communication. • A color bar is provided on the front of the module. • Digital and field circuits are optically isolated.
