When installed along a CompactLogix controller assembly, Compact I/O modules may be installed on both sides of the power supply as the power supply can supply power on both directions as well as the Power supply distance rating may also be counted in both ways. Up to Eight (8) 1769 modules may be installed on both sides of this power supply.
Required input voltage range for this power supply is 85-265VAC with frequency of 47-63 Hz. It has a current capacity of 2.0A at 5VDC and 0.8A at 24VDC. This module is equipped with an internal fuse which may be replaced with Wickmann 19195-3.15A or Littelfuse 02183.15MXP.
This power supply has a dimension of 118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) and an approximate weight of 525 g (1.16 lb). As standard to CompactLogix platform, this power supply module also support installation to a DIN or directly to a mounting plate.
This power supply is UL Listed for Class 1, Division 2 Group A,B,C,D Hazardous Locations, certified for U.S. and Canada. See UL File E10314, Australian Radiocommunications Act, compliant with: AS/NZS CISPR 11; Industrial Emissions and European Union 2004/108/EC EMC Directive compliant.

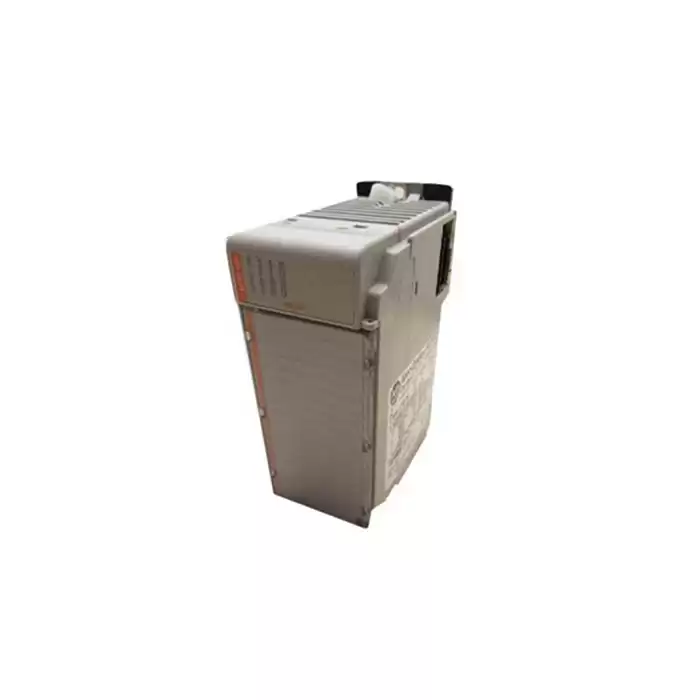

The 1769-PA2 is a 1769 CompactLogix Power supply, manufactured by Allen-Bradley. This power supply has a current capacity of 0.8A at 24 VDC.
