Allen Bradley 1771-ES Servo Encoder Feedback Expander Module Fast ship/ Brand new

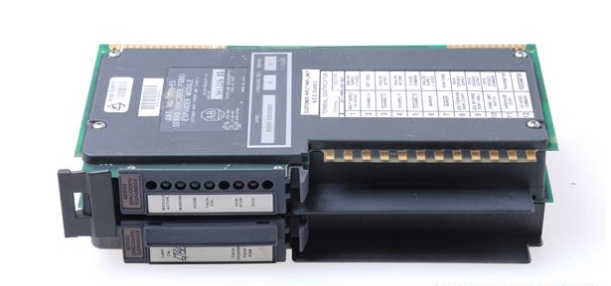

The Allen Bradley 1771-ES is a Servo Encoder Feedback Expander module. The 1771-ES is a constituent part of the Servo Positioning Assembly (SPA). The 1771-ES occupies two slots in the 1771 Input Output chassis. The Servo Encoder feedback expander module caters for digital encoder feedback incrementally and provides three encoder multipliers which are programmable, for example x4, x2, and x1. Additionally, the 1771-ES has an 11200 or 1200 resistance on each input which can be selected individually using a switch. The 1771-ES uses a DAC converter with a signed 12-bit resolution, has an isolated voltage (max) of +/-10 Volts DC and draws a current of 1.7A maximum. The 1771-ES accommodates an encoder input voltage of 1.6 Volts DC and 1 Volt DC on maximum and minimum respectively. The module has a 20K ohms input resistance and a tachometer with a 50 Volt maximum and a 3 Volt minimum full-scale input. For keying into the I/O chassis, pins 2 and 4, 14 and 16 are for the left side and pins 4 and 6, 32 and 34 are for keying it to the right side are used.
Specification:
Brand: ALLEN BRADLEY
Product Origin: USA
Warranty: 1 Year
Payment: T/T, Western Union
Condition: New with original package
Lead Time: In stock
Model: 1771-ES
Our Services:
1、 All our products are new and original, and of good quality.
2、 Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.
4、 All inquiries will be valued and will reply in 24 hours.
5、 Fast shipping, and good after-sale service
6、 We will ship the items within 1-3 working days after the payment is received.
7、 Good package to protect the products.
