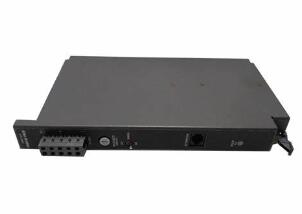

The 1771-P4S1 Power Supply Module is an AC power module by Allen-Bradley which provides power to the backplane and is installed in a single slot of the 1771 I/O chassis. It has a nominal input voltage of 120V AC and an input current of 0.88 Ampere. Its input voltage ranges between 85 and 120V AC at 47-63Hz, and the module has a real input power of 56W, and an apparent power of 89VA. It has an output rating of 5.06V DC (+-3/6% of the total output) voltage and a maximum output current of 8A at 5V DC. It dissipates 4W heat at 2A, and 17W heat at 8A and the maximum power dissipated by the adjacent slot is 10W. The 1771-P4S1 provides tested 2160V DC isolation for 1 seconds, and a branch circuit protection for a current no greater than 15A.
Weight: 0.9kg
Dimensions: 2.5 cm x 15.2 cm x 27.9 cm
Catalog Numbers: 1769-PA2,1769-PA2K,1769-PB2,1769-PB2K,1769-PA4,1769-PA4K,1769-PB4,1769-PB4K,1794-IE8,1794-IE8XT,1794-OE4,1794-OE4XT, 1794-IE12, 1794-OE12, 1794-IE4XOE2, 1794-IE4XOE2XT, 1794-IE8XOE4,1785-L40L,1785-L60B,1747-L552,1747-L553,1756-M03SE,1756-M08SE,1756-M16SE,1756-M08SEG,11756-M02AE,1756-M02AS,1756-HYD02,1756-M16SE,1756-M08SE,1756-M03SE,1756-M02AS,1756-HYD02,1756-M02AE,1756-M08SEG,1756-IA8D,1756-IA16,1756-IA16I,1756-IA32,1756-IB16,1756-IB16D,
Specification:
Brand: Allen Bradley
Product Origin: USA
Warranty: 1 Year
Payment: T/T, Western Union
Condition: New with original package
Lead Time: 1-3days
Model: 1771-P4S1
