ALLEN BRADLEY 1786-RPA CONTROL NET MODULAR REPEATER ADAPTER 1786-RPA

ControlNet Modular Repeater Adapter






























ALLEN BRADLEY 1786-RPA CONTROL NET MODULAR REPEATER ADAPTER 1786-RPA



Contact: Miya

Job Title: Sales Manager

Skype: live:miyazheng520

Email: sales@amikon.cn

Tel: 86-18020776792(Whats App )

QQ :2851195450


ATTENTION!

PAYMENT: T/T 100% IN ADVANCE

Lead Time : 3-5 Days

Minimum Order Quantity : 1 Piece

Warranty : 1 Year

Shipment: DHL,UPS,FEDEX,ARAMAX,TNT,etc.




AMIKON AUTOMATION LIMITED is an company which professional engaged in large system (DCS) spare parts sales we main in DCS,PLC,MOTOROLA,MVME,Anybus,RTU,IPC,IPC,SCSI(50,68,80Pin) AnyBus(Gateway) and so on .For the exceptionally competitive product market,we will supply client top quality product and express and safty with responsibility and credit , we look forward to work with you for our beautifull future,we have different products to supply promptly,welcome to call us all the time !


1786-RPA


Brand Name                 AB


Product reference     1786-RPA


About the Repeater Adapter Module The 1786-RPA/B ControlNet repeater adapter module, which has a 24V DC, removable power supply, can be used with 1786 repeater modules to build a ControlNet network repeater. A repeater is used to extend the length of a network, create a star, ring, or point-to-point topology, or perform network media conversion from copper to fiber, and vice versa. A maximum of 20 repeater adapter can be placed in a series.

Features and Components of the ControlNet Repeater Adapter A 1786-RPA/B repeater adapter can be used with the following modules to build a ControlNet network repeater: • 1786-RPCD repeater dual copper module • 1786-RPFS repeater short-distance fiber module • 1786-RPFM repeater medium-distance fiber module • 1786-RPFRL fiber ring repeater module • 1786-RPFRXL fiber ring repeater module ATTENTION: This equipment is sensitive to electrostatic discharge, which can cause internal damage and affect normal operation. Follow these guidelines when you handle this equipment: • Touch a grounded object to discharge potential static. • Wear an approved grounding wriststrap. • Do not touch connectors or pins on component boards. • Do not touch circuit components inside the equipment. • Use a static-safe workstation, if available. • Store the equipment in appropriate static-safe packaging when not in use. TIP If the 1786-RPA/B repeater adapter is used with the 1786-RPCD, 1786-RPFS, and 1786-RPFM repeater modules, you can attach as many as four repeaters to the repeater adapter. If the 1786-RPA/B repeater adapter is used with the 1786-RPFRL and 1786-RPFRXL repeater modules, you can attach as many as two repeaters to the repeater adapter.

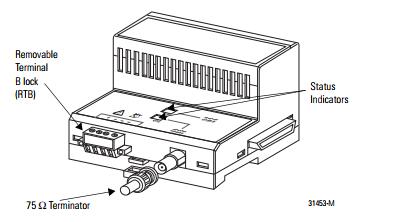

The repeater adapter also provides the following: • Digital re-timing of ControlNet network data • Power to repeater modules • One coax channel • Status indicators The repeater adapter ships with the following items: • One removable terminal block (power connector) attached to the repeater adapter. • One 75 Ω terminator for terminating an unused port. • Two DIN rail locks The illustration shows the components that comprise the 1786-RPA/B repeater adapter module.
