Brand Name                 AB

Product reference     1794-IE4XOE2

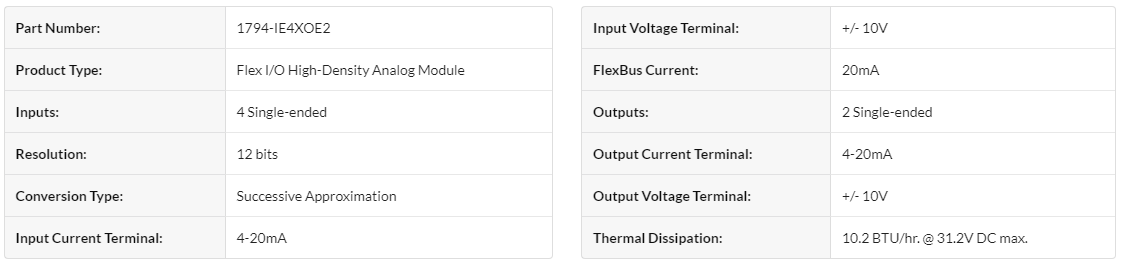

The Allen-Bradley 1794-IE4XOE2 Flex I/O High-Density Analog Module has 4 Single-ended Inputs, a 12 bits Resolution, and a Successive Approximation Conversion Type. It also operates with a +/- 10V Input Voltage Terminal and a 20mA FlexBus Current.

Connecting Wiring for the 1794-IB16XOB16P 1. Connect individual input wiring (IN0 to IN15) to numbered terminals on the 0-15 row (A) as indicated in the table below. 2. Connect the associated power to the +V1 terminal (35, 37, 39 or 41) on the 34-51 row (C) as indicated in the table below. 3. Connect the associated common (-V1) for IN0 to IN15 to COM1 (terminal 36, 38, 40 or 42) on the 34-51 row (C). 4. Connect individual output wiring (OUT0 to OUT15) to terminals 17 thru 32 on the 16-33 row (B) as indicated in the table below. (Note: Do not connect to terminals 16 or 33.) 5. Connect the associated power to the +V2 terminal (43, 45, 47 or 49) on the 34-51 row (C) as indicated in the table below. 6. Connect the associated common (-V2) for OUT0 to OUT15 to COM2 (terminal 44, 46, 48 or 50) on the 34-51 row (C). 7. If continuing input wiring to the next terminal base unit, connect a jumper from terminal 41(+V1) to the power terminal on the next base unit; connect a jumper from terminal 42 (COM1) to the common terminal on the next base unit. 8. If continuing output wiring to the next terminal base unit, connect a jumper from terminal 49 (+V2) to the power terminal on the next base unit; connect a jumper from terminal 50 (COM2) to the common terminal on the next base unit.

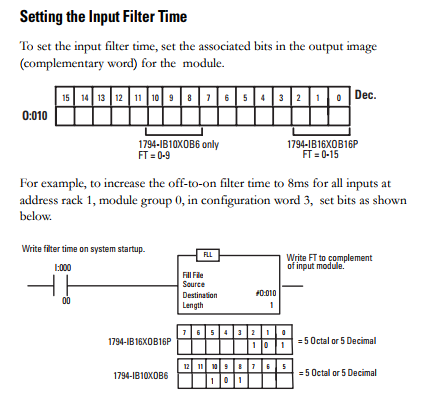

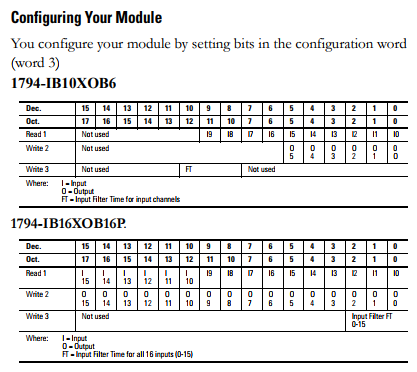

General Specifications Module Location 1794-IB10XOB6 - Cat. No. 1794-TB2, -TB3, -TB3S Terminal Base Unit 1794-IB16XOB16P - 1794-TB32, -TB32S Terminal Base Unit Input Filter Time2 Off to On On to Off 0.25ms, 0.5ms, 1ms, 2ms, 4ms, 8ms, 16ms, 32ms 0.25ms, 0.5ms, 1ms, 2ms, 4ms, 8ms, 16ms, 32ms 0.25ms default - Selectable Terminal Base Screw Torque 7 pound-inches (0.8Nm) Dimensions (with module installed) 3.7H x 3.7W x 2.7D inches 94H x 94W x 69D mm Keyswitch Position 2 Environmental Conditions Operating Temperature IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): 0 to 55°C (32 to 131°F) Storage Temperature IEC 60068-2-1 (Test Ab, Un-packaged Non-operating Cold), IEC 60068-2-2 (Test Bb, Un-packaged Non-operating Dry Heat), IEC 60068-2-14 (Test Na, Un-packaged Non-operating Thermal Shock): –40 to 85°C (–40 to 185°F) Relative Humidity IEC 60068-2-30 (Test Db, Un-packaged Non-operating Damp Heat): 5 to 95% non-condensing Vibration IEC60068-2-6 (Test Fc, Operating): 5g @ 10-500Hz Shock IEC60068-2-27 (Test Ea, Unpackaged shock): Operating 30g Non-operating 50g Emissions CISPR 11: Group 1, Class A (with appropriate enclosure) ESD Immunity IEC 61000-4-2: 4kV contact discharges 8kV air discharges Radiated RF Immunity IEC 61000-4-3: 10V/m with 1kHz sine-wave 80%AM from 30MHz to 1000MHz EFT/B Immunity IEC 61000-4-4: ±2kV at 5kHz on signal ports Surge Transient Immunity IEC 61000-4-5: ±1kV line-line(DM) and ±2kV line-earth(CM) on signal ports Conducted RF Immunity IEC 61000-4-6: 10Vrms with 1kHz sine-wave 80%AM from 150kHz to 30MHz Enclosure Type Rating None (open-style) Conductors Wire Size Category3 22-12AWG (0.34-2.5mm2 ) stranded copper wire rated at 75°C or higher 3/64 inch (1.2mm) insulation maximum 2 Certifications (when product is marked)4 UL UL Listed Industrial Control Equipment (1794-IB10XOB6) CULUS UL Listed Industrial Control Equipment, certified for US and Canada (1794-IB16XOB16P) CULUS UL Listed for Class I, Division 2, Groups A, B, C and D Hazardous locations certified for US and Canada (1794-IB16XOB16P) CSA CSA certified for Class I, Division 2, Groups A, B, C and D Hazardous locations (1794-IB10XOB6 only) EEx4 European Union 94/9/EEC ATEX Directive, compliant with: EN 50021; Potentially Explosive Atmospheres, Protection “n” (Zone 2) - (1794-IB10XOB6 only) CE5 European Union 89/336/EEC EMC Directive, compliant with: EN 61000-6-4; Industrial Emissions EN 50082-2; Industrial Immunity EN 61326; Meas./Control/Lab., Industrial Requirements EN 61000-6-2; Industrial Immunity (1794-IB10XOB6, 1794-IB16XOB16P) C-Tick4 Australian Radiocommunications Act compliant with AS/NZS CISPR 11, Industrial Emissions (1794-IB10XOB6, 1794-IB16XOB16P)
