Product Details:

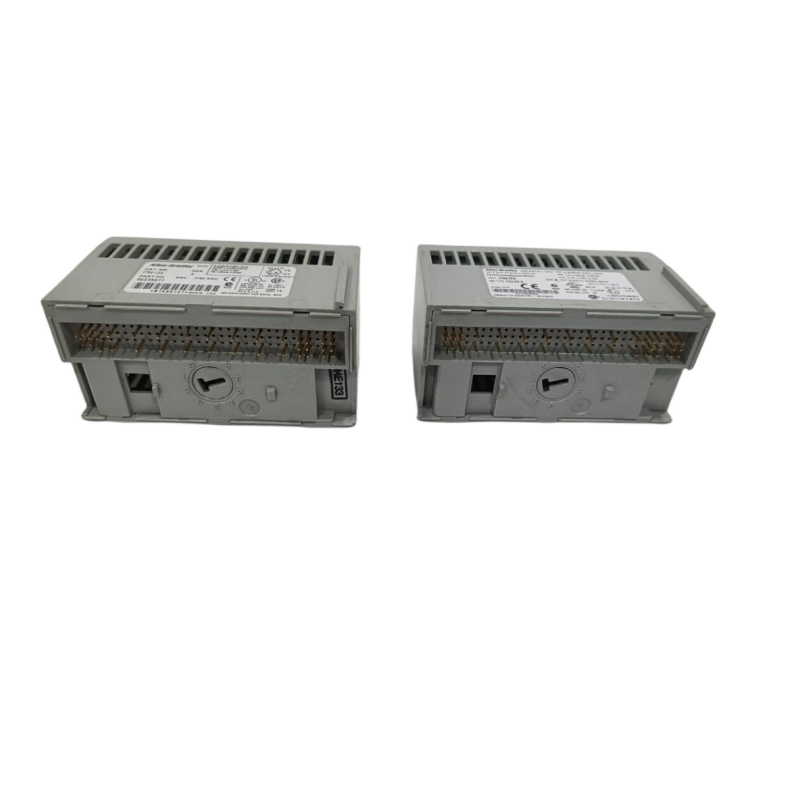

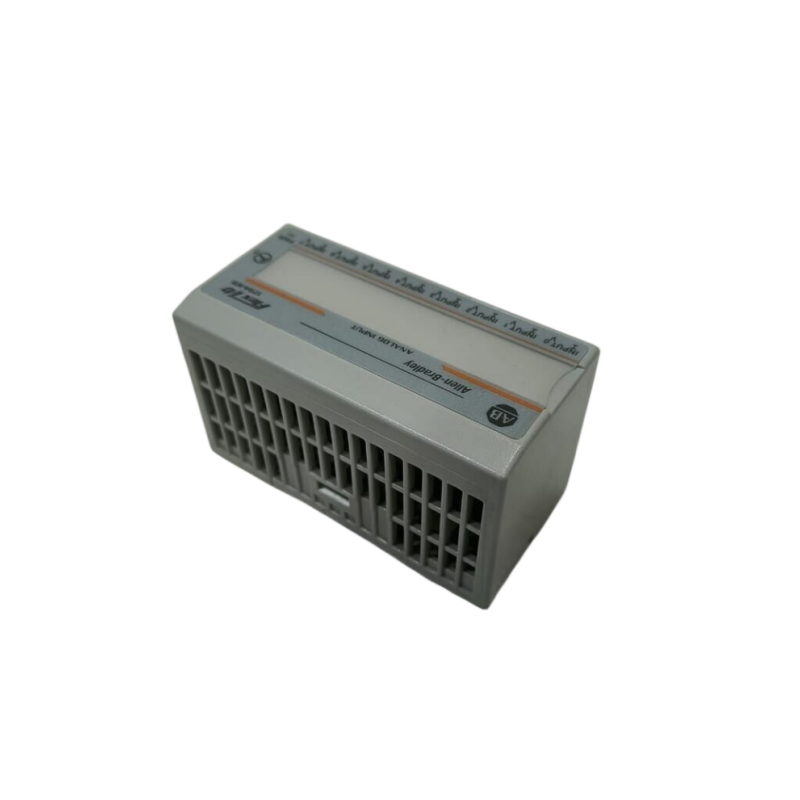

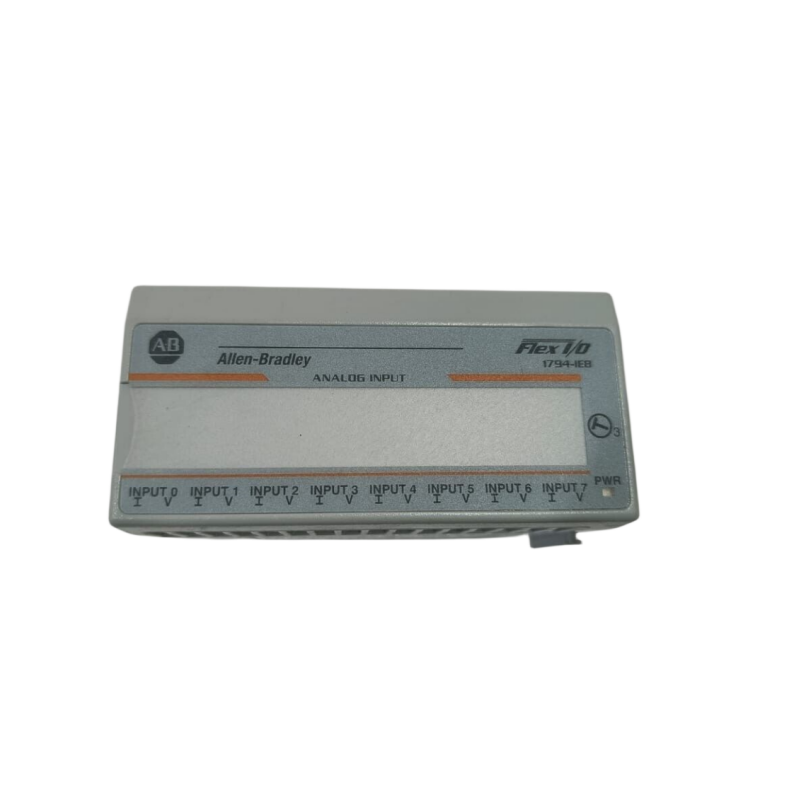

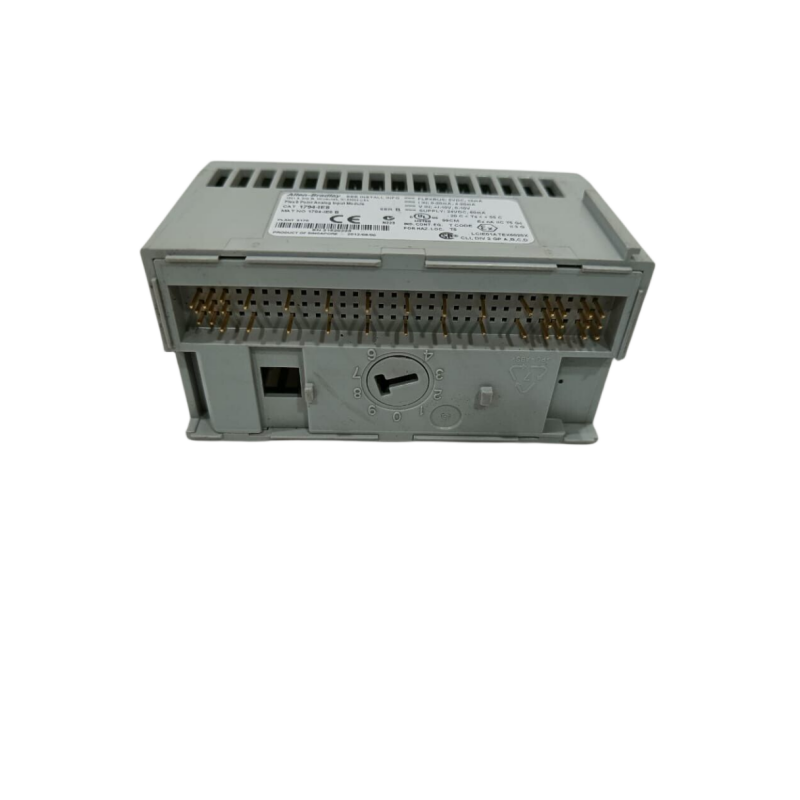

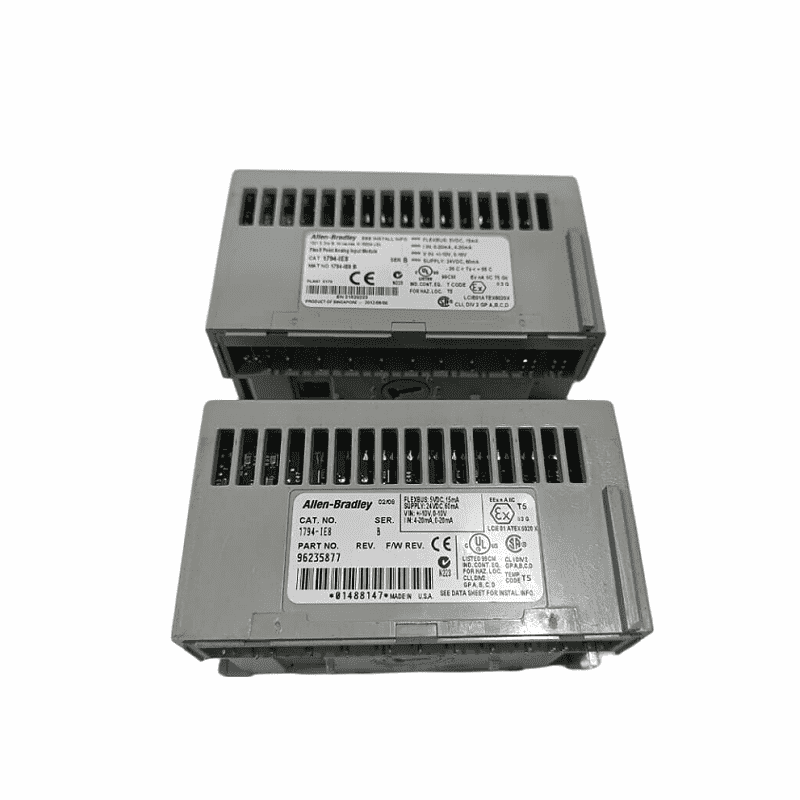

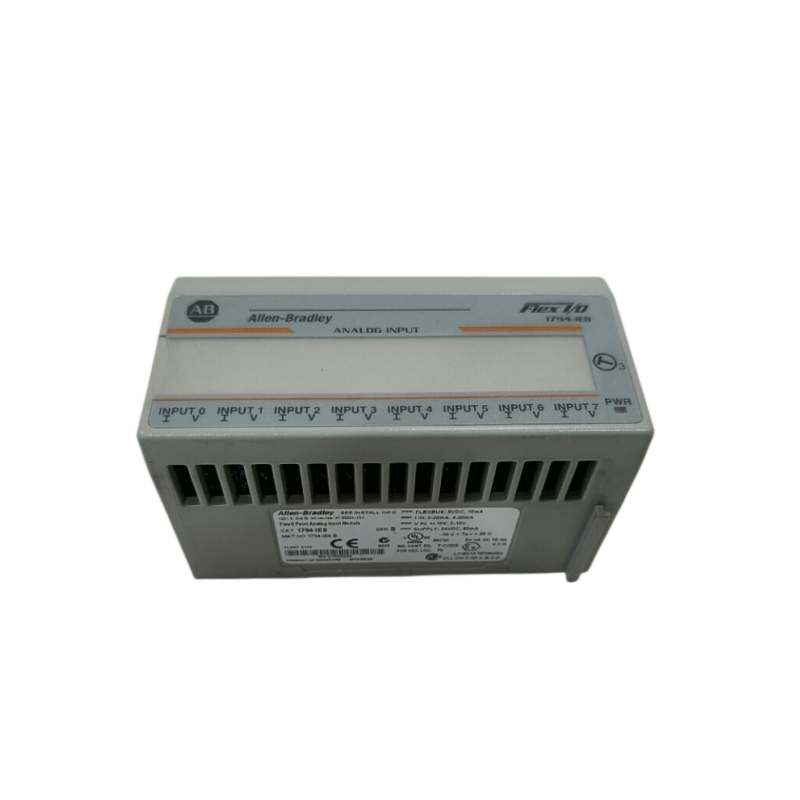

- Product Type：Flex I/O High-Density Analog Module
- Inputs：8 Single-ended
- Resolution Voltage Current： 5.13 Amps/cnt
- Conversion Rate： 256 seconds
- Input Current Terminal：4 to 20 mA
- Input Voltage Terminal：+/- 10 Volts
- FlexBus Current：60 mA
- External DC Power Supply：60 mA at 24 Volts DC
- Isolation Voltage： 50 Volts Continuous
- Power Dissipation： 3.0W at 31.2 Volts DC
- Thermal Dissipation: 10.2 BTU/hour at 31.2 Volts DC
- Indicators: 1 green/red power/status indicator
- Input type: 0 to 20 mA; 4 to 20 mA; +/- 10VDC; 0 to 10 VDC
- Conversion Type: Successive Approximation
- Data Format: 16 bit 2’s complement, left justified
- Resolution: 12 bits unipolar; Voltage: 11 bits plus sign bipolar 2.56mV/cnt unipolar; Current: 5.13mV/cnt bipolar 5.13?A/cnt
- Absolute Accuracy: 0.20% full scale @ 25 °C
- Accuracy Drift with Temperature: Voltage Terminal - 0.00428% Full Scale/°C Current Terminal - 0.00407% Full Scale/°C
- Terminal base: 1794-TB2, 1794-TB3, and 1794-TB3S, 1794-TB3T, 1794- TB3TS
- External DC supply, nom: 24V DC
- External DC supply range: 10.0…31.2V DC (includes 5% AC ripple)
- Mounting: DIN Rail
- Wire Size: Determined by installed terminal base
- Operating Temperature: 0 to 55°C (32 to 131 °F)
- Storage Temperature: –40…85 °C (–40…185 °F)
- Vibration: 5g @ 10 to 500 Hz
