Allen-Bradley 1794-IRT8

The Allen-Bradley 1794-IRT8 is a Flex I/O combination module. This module supports both RTD and Thermocouple sensors. It has Eight (8) channels in Two (2) groups of Four (4) with nominal input ranges of -40…100 mV dc for thermocouples for Thermocouple and 0…325 mV for RTDs for RTD. This module has a resolution of 14 bits.

The 1794-IRT8 module is an Allen-Bradley FLEX I/O millivolt, thermocouple, and RTD module. In a FLEX I/O system, the 1794-IRT8 module is connected to a terminal base and a power adapter.

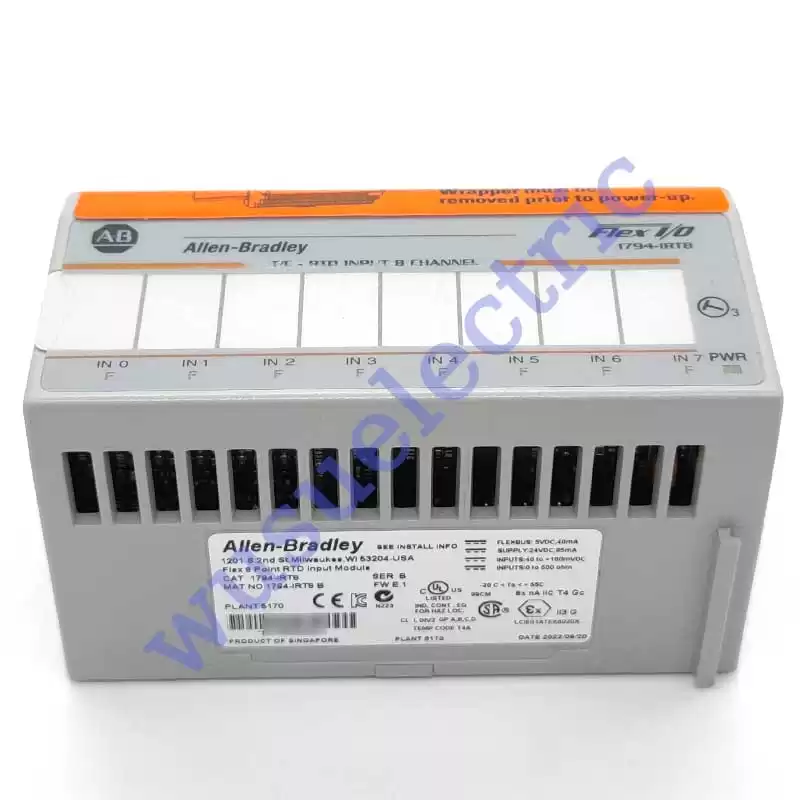

The Allen-Bradley 1794-IRT8 is shipped with 2 cold junction compensators. This cold junction compensator increases the accuracy of the module for Thermocouple mode. 1794-IRT8 module has a nominal voltage rating of 24 Volts DC and 8 analog inputs. It can connect to up to 8 RTD or thermocouple inputs. The front panel of the 1794-IRT8 module has a nameplate that identifies the module, a removable label that the users can customize, a keyswitch position indicator, and LED status indicators.

Compatible RTD sensors for this module are 2-wire, 3-wire and 4-wire RTDs such as 100 ? Pt ? = 0.00385 Euro -200…870 °C (-328…1598 °F) 200 ? Pt ? = 0.00385 Euro -200…400 °C (-328…752 °F) 100 ? Pt ? = 0.003916 U.S. -200…630 °C (-328…1166 °F) 100 ? Pt ? = 0.003916 U.S. -200…400 °C (-328…752 °F) 100 ? Nickel -60…250 °C (-76…482 °F) 200 ? Nickel -60…200 °C (-76…362) °F) 120 ? Nickel -80…320 °C (-112…608 °F) 10 ? Copper -200…260 °C (-328…470 °F). While supported Thermocouple sensors by this module are Thermocouple Type B, E, J, K, TXK/XK(L), N, R, S, and T.

This module has a resolution of 14 bits with selectable data formats such as °C (implied decimal point XXX.X) °F (implied decimal point XXX.X) °K (implied decimal point XXX.X) -32767…32767 0…65535 0…5000 ohms mode (implied decimal point XXX.X) -4000…+10000 millivolt mode (implied decimal point XXX.XX).

The 1794-IRT8 has diagnostic functions embedded including an open circuit detection wherein module reading upscales or defaults to max value when in RTD and Thermocouple mode. It also has an open input detection time of 2 scans, overvoltage capability of 15V DC continuous at 25 °C.

When wiring signal wirings, recommended wires are Thermocouple wires as specified by the TC manufacturer and Belden 8761 for millivolt signal.
