Brand Name AB
Product reference 1794-TB3G
Connect Wiring to the FLEX
I/O Module

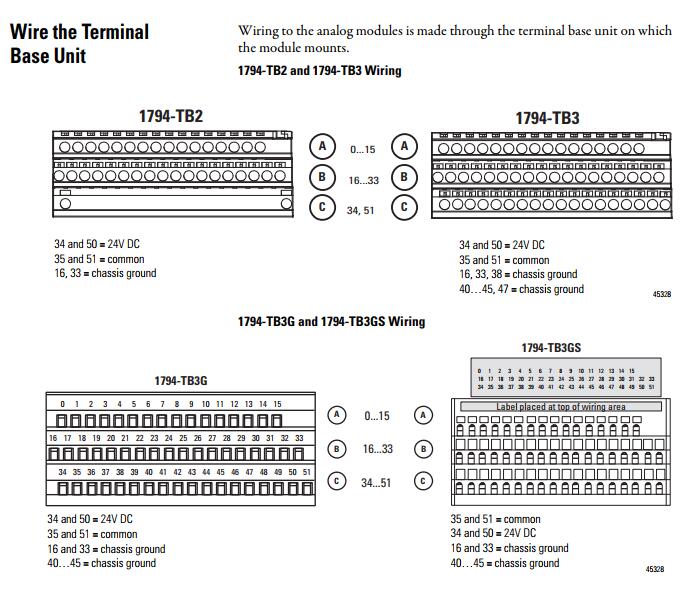

Wiring to the analog module is made through the terminal base unit on which
the module mounts.

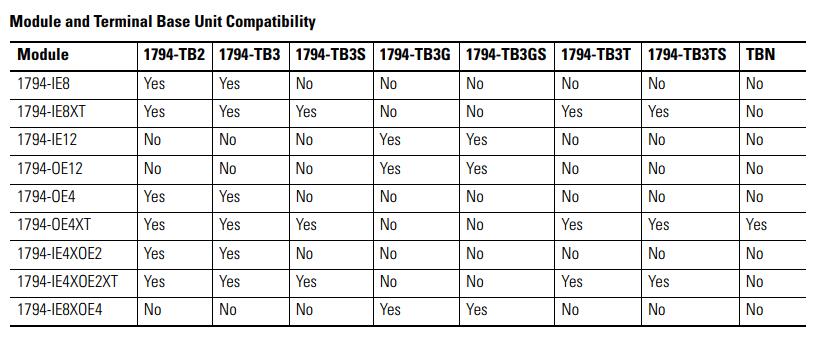

Verify which terminal base units your module is compatible with in table
Connect Wiring Using a 1794-TB2 or 1794-TB3 Terminal Base Unit

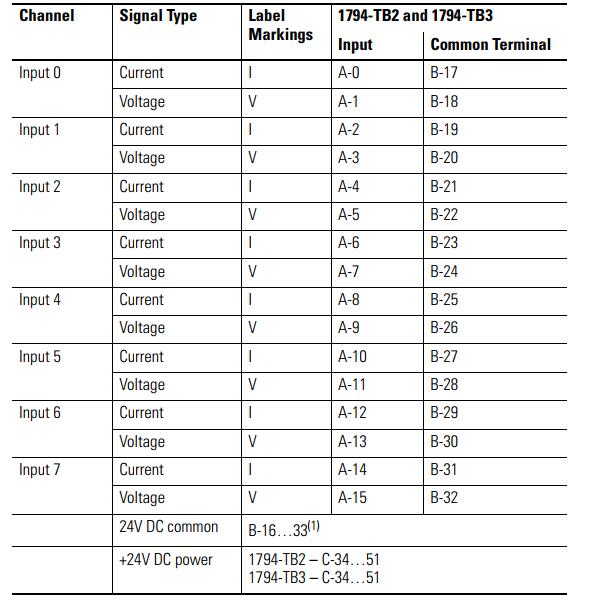

1. Connect the individual signal wiring to numbered terminals on the 0…15
row
(A) on the terminal base unit. Use Belden 8761 cable for signal wiring
ATTENTION: Connect only one current or one voltage signal per
channel. Do not connect both current and voltage on one channel.
2. Connect each channel signal return to:
• 1794-IE8 – the associated terminal on row (B).
• 1794-OE4 – the corresponding terminal on the same row (A).
