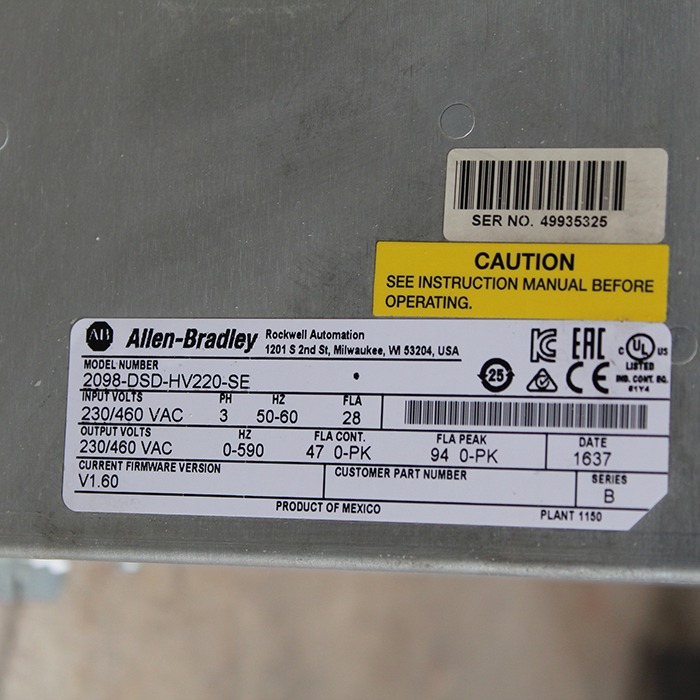

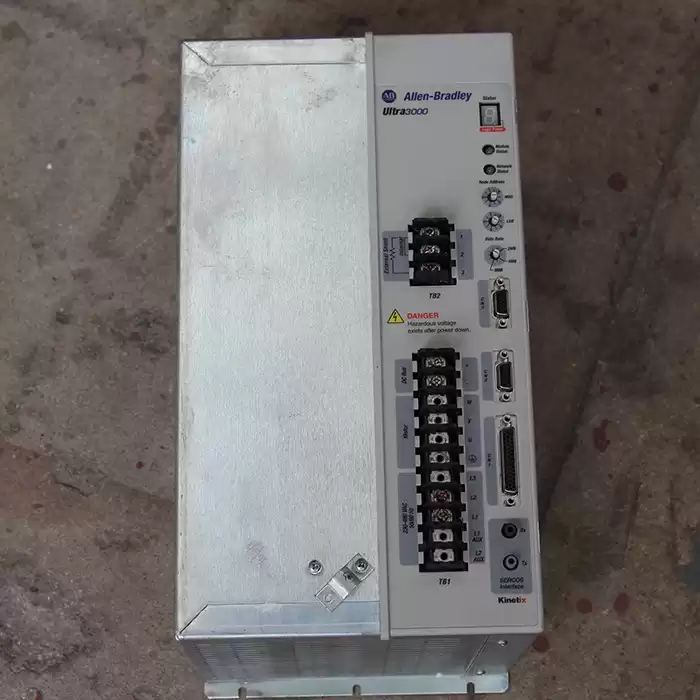

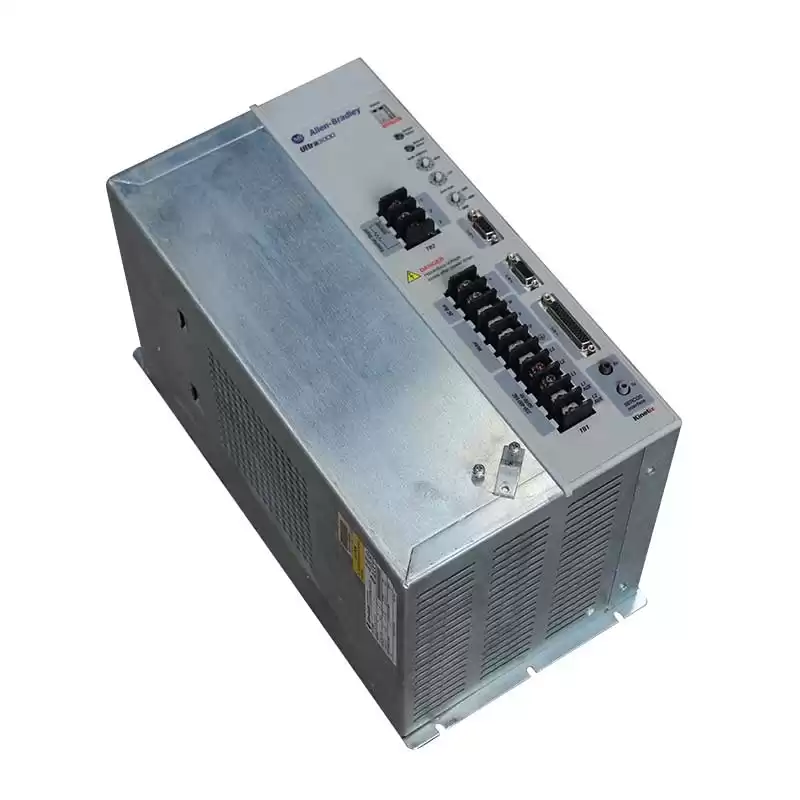

Allen-Bradley 2098-DSD-HV220-SE Servo Drive

         About 2098-DSD-HV220-SE

• The Allen-Bradley 2098-DSD-HV220-SE is a high voltage 460V-rated Ultra3000-SE Digital Servo Drive for integrated motion. It is part of the Bulletin 2098 Ultra3000 Drive Systems series. This SERCOS interface drive has 22 kW continuous output power and 33.2 A RMS continuous output current. Its 3-phase input voltage range is between 230 and 480 AC RMS with a nominal input current of 28A RMS. It comes with a 47A Continuous Output Current and 94A Intermittent Output Current with both specifications at 0-peak. Plus, it requires an external 12-24V power supply for the digital I/O’s proper operation.
• Technical Description of 2098-DSD-HV220-SE
• The Allen-Bradley 2098-DSD-HV220-SE Servo Drive has a 94 Amps (0-peak) Output Current (Intermittent), a 47 Amps (0-peak) Output Current (Continuous), and a 47-63 Hz Input Frequency (AC). It also has a 230-480 Voltage Root Means Square (Three Phase) Input Voltage (AC) and a 1880 ?F Bus Capacitance.
