Allen-Bradley 20AC060A0AYNANC0 PF70 Inverter

      Description:

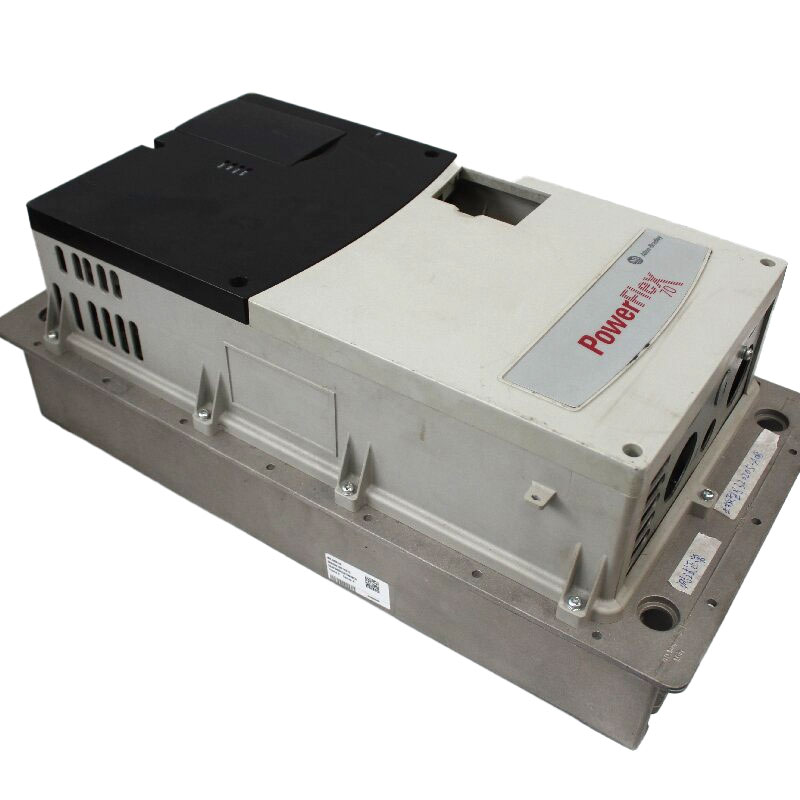

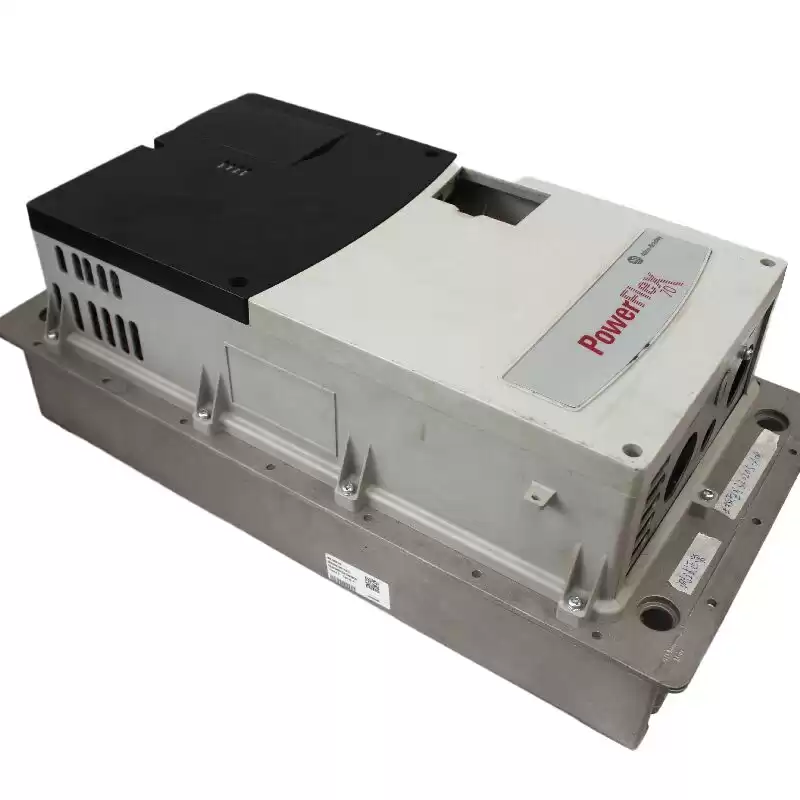

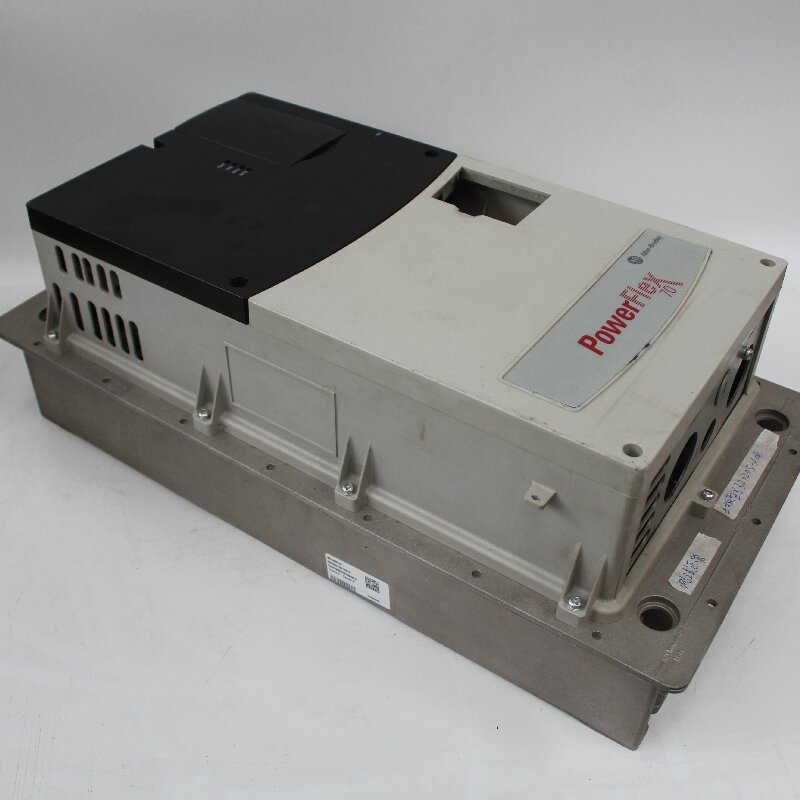

• The 20AC060A0AYNANC0 is a PowerFlex 70 series Allen-Bradley drive.

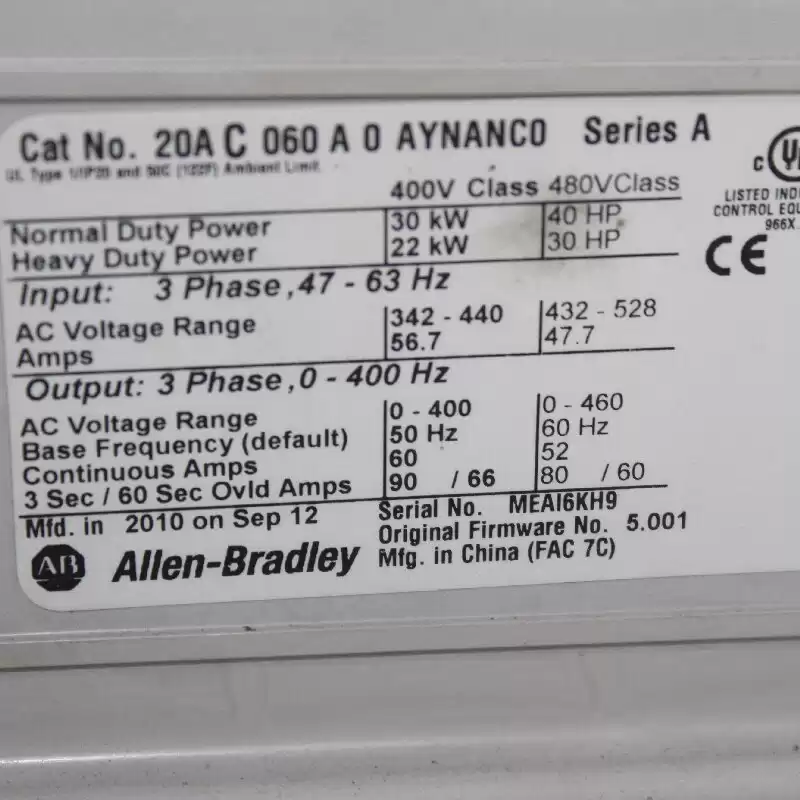

• The 20AC060A0AYNANC0 comes with an input voltage of 400 Volts AC and it is a 3-phase drive.
• The 20AC060A0AYNANC0 has an output current of 60 Amps and built with the panel-mounted IP20 NEMA Type 1 with a conformal coating.
• The 20AC060A0AYNANC0 is also available in a Frame Size E. The drive features the base plus option and it is designed with a blank HMI slot.
• The 20AC060A0AYNANC0 features no communication module. This PowerFlex 70 drive features the Brake IGBT with no brake resistor and it is designed with the second environmental filter per the CE EMC directive.
• The 20AC060A0AYNANC0 supports a Human-Machine Interface. Generally, the PowerFlex 70 drive series supports the LCD HMI. The HMI comes with support for a large and easy-to-read 7 line backlit display. The display also supports various languages and it features alternative control keys.
• These include the PowerFlex HMI that is mounted on the respective drive where the 20-COMM-H is installed.
