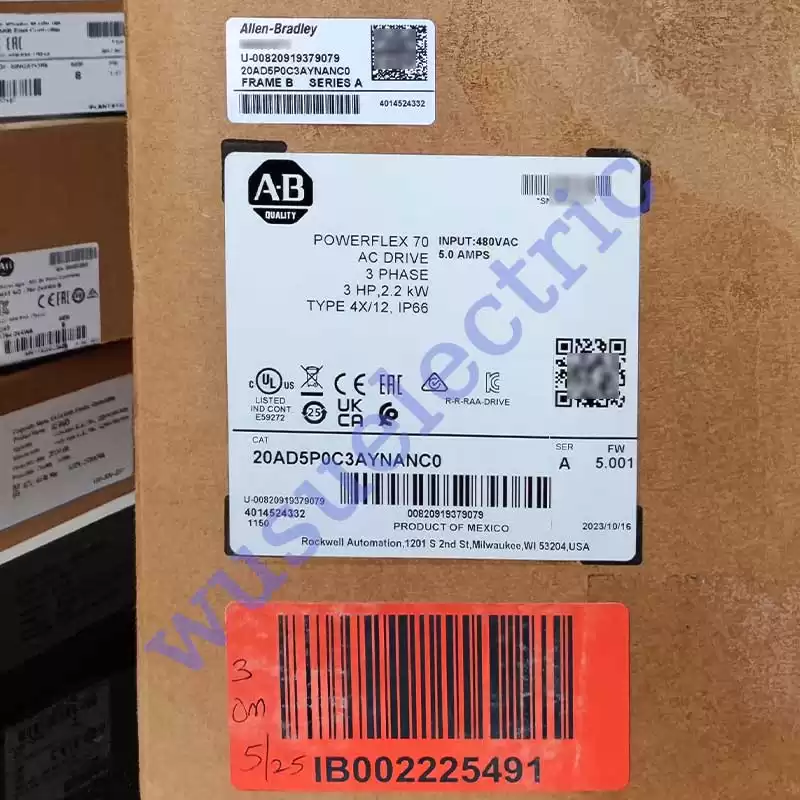

Allen-Bradley 20AD5P0C3AYNANC0

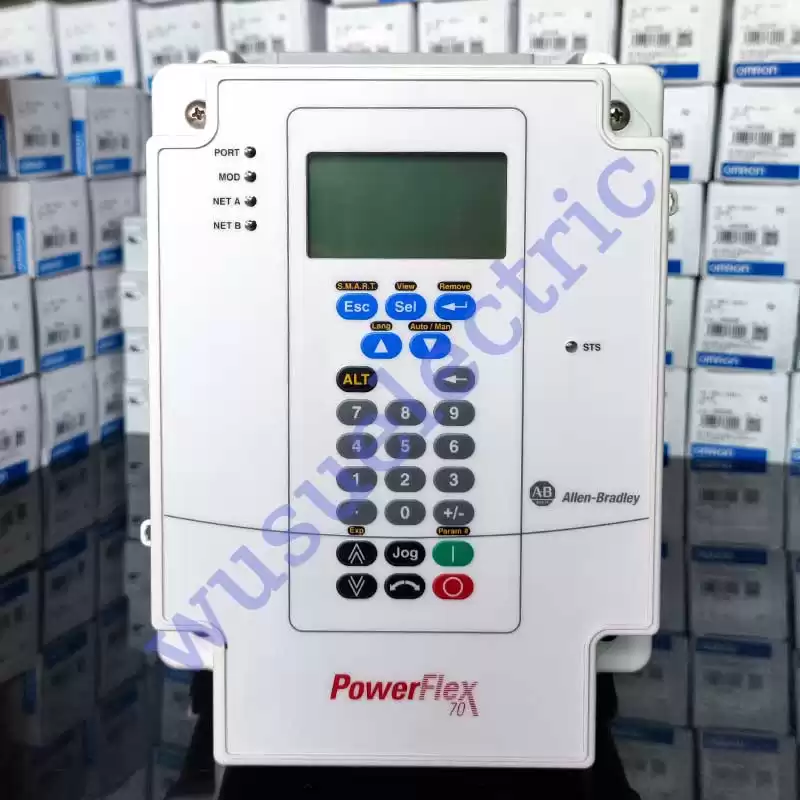

This Allen-Bradley/Rockwell Automation 2.2 kW AC drive is a 3 horsepower drive. This VFD comes with an amperage output rating of 5 A, is powered by 480 VAC (50 Hz), and comes with a LCD and numeric keypad inferface module on this drive. Also, this PF70 is a size B frame drive. It comes with an enhanced control board installed. This PowerFlex 70 is housed in a wall/machine mount (IP66) enclosure.

The Allen-Bradley 20AD5P0C3AYNANC0 is part of the PowerFlex 70 range of AC drives. It features 3-phase power, 5 Amps current, 3 Horsepower normal duty output, and a machine mount - IP66/NEMA Type 4X/12 enclosure. This drive has a conformal coating with an LCD and a full numeric keypad that help users to key in data and information. It features an installed brake IGBT without a drive-mounted brake resistor. It also features a Second Environment Filter per the CE EMC directive (89/336/EEC). The PowerFlex 70 AC drives are compact packages of control, power, and operator interface designed to meet demands for simplicity, reliability, and space conservation. This drive is easy to interface and configure. The 20AD5P0C3AYNANC0 helps in the provision of additional power, control, and enclosure options in the standardized designs.

It uses the Logix control platform in simplifying parameters and tag programming. This leads to reduced development time. The device also features the safe torque-off option, which helps in the removal of power from the drive for faster start-up after a demand on the safety system. It enables torque and speed control with and without encoder feedback.  This part supports multiple languages. This helps users to adjust it in different languages. This feature helps them to interface with their machines with ease. It also has advanced bus regulation and drive overload protection. The 20AD5P0C3AYNANC0 is a cost-effective solution for speed control in variable pump applications and torque and fan applications. This drive features a common industrial protocol including the DeviceNet, ControlNet, or the Ethernet network. It also features V/Hz control, vector control with Force technology, and sensorless vector control.
