Specifications
| Manufacturer |
Rockwell Automation |
| Brand |
Allen-Bradley |
| Part Number/Catalog No. |
20F11GD077AA0NNNNN |
| Voltage Class |
480 AC Volts |
| Output Current |
77 Amperes |
| Phase Count |
Three |
| Frame Size |
5 |
| Enclosure Type |
IP54, Type 12 |
| EMC Filtering Options |
Filtered, No CM Jumper |
| Input Type |
AC Input with DC Terminals |
| Dynamic Breaking |
DB Transistor |
| Weight |
45 lbs |
| Dimensions |
25.47 x 13.70 x 8.67 in |

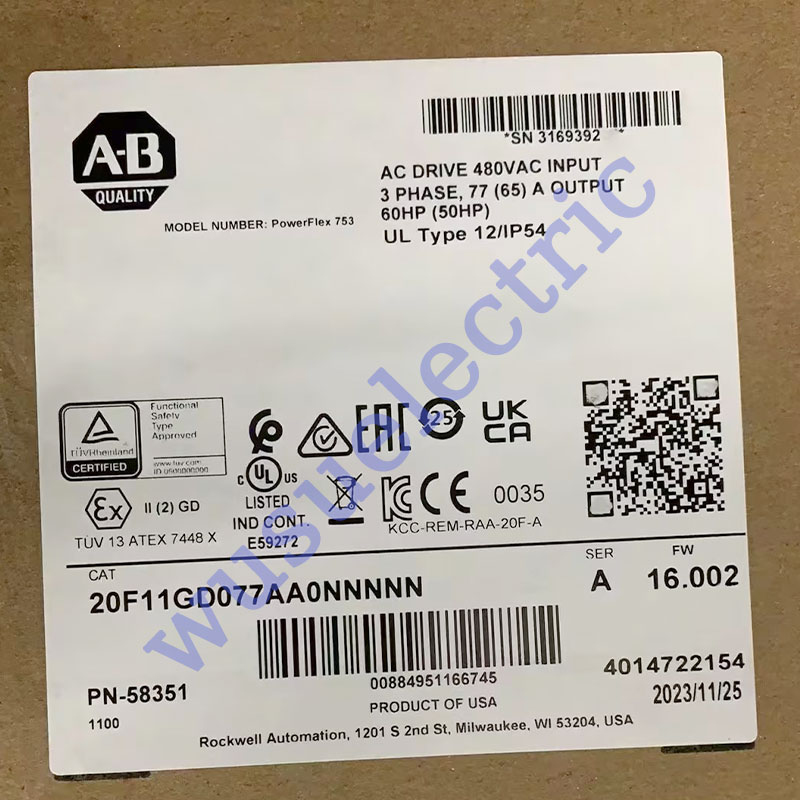

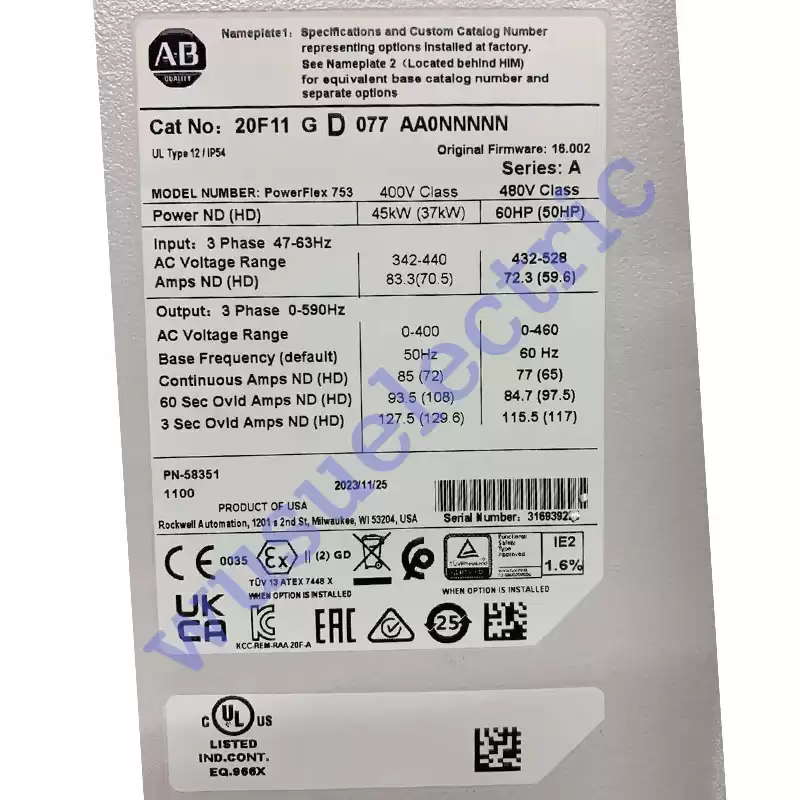

The Allen-Bradley 20F11GD077AA0NNNNN is a Powerflex 753 drive that is in a voltage class of 480 Volts AC. It has an output current of 77 Amps, 3-phase power, and a frame size of 5. The device has an IP54 Type 12 enclosure type. The device further has EMC filtering options which are filtered but no CM jumper. It has an AC input type with DC terminals and dynamic braking through a DB transistor. It has a weight of 45 pounds and dimensions of 25.47 x 13.70 x 8.67 inches. The 20F11GD077AA0NNNNN is an effective drive for a wide of range of industrial purposes. The device is designed to enhance the working conditions in industrial settings. The 20F11GD077AA0NNNNN drive holds many valuable functions.
For instance, the 20F11GD077AA0NNNNN comes in a variety of enclosure types, weights, sizes, and power rankings. Some of the features the drive has are vector control using FORCE technology, sensorless vector control, Volts per hertz control, an interior long-lasting magnet, and a double port Ethernet/IP preference component. The HMI is not fixed in the drives and it comes either with or without DB transistors and CM jumpers. The drive displays 3 accessible slots for an extra power supply communications, safety, or I/O module. The device is best for OEMs and an integrating system to reduce the engineering costs. The delivery of the device is fast and able to meet end-user requests for more useful and safer equipment. For duty resistors with limitations, they mount straight to the drive through the back surface and need no additional panel space.
