Allen-Bradley 20F11ND096AA0NNNNN

Specifications

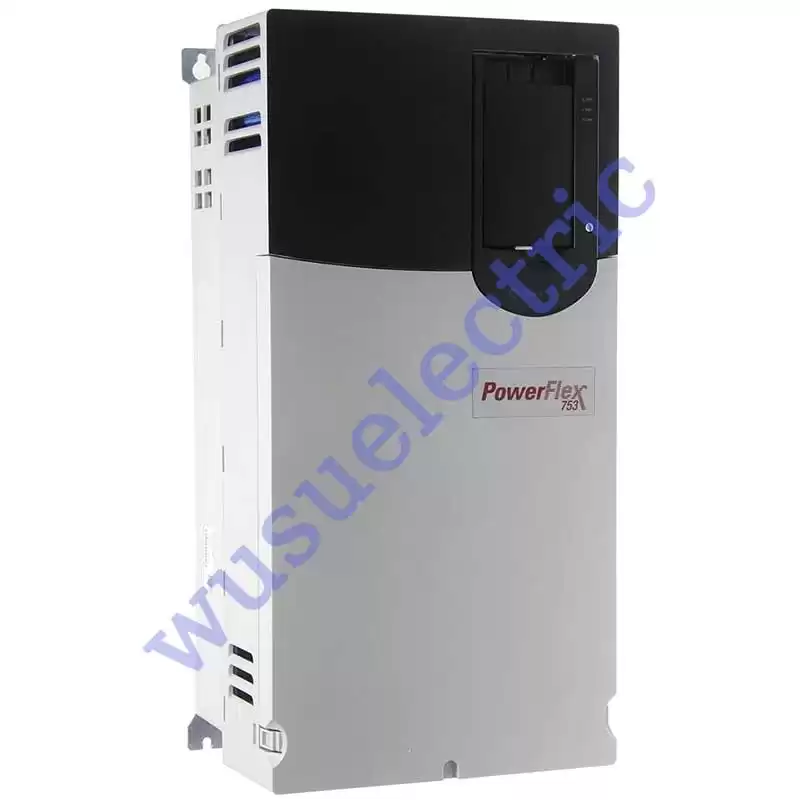

20F11ND096AA0NNNNN is a PowerFlex 753 Adjustable Frequency AC drive that is manufactured by Allen-Bradley. This drive is capable of implementing Speed and Torque control via the embedded support for Sensorless Vector Control (SVC), Volts / Hertz (V/Hz) control and Vector Control w/ FORCE technology that is applicable with or without an encoder feedback. Aside from speed and Torque control, this drive supports basic motor control functions such as START / STOP / JOG / FORWARD / REVERSE and other commands.

20F11ND096AA0NNNNN is not only used for implementing motor control. Adjustable Frequency AC drives, popularly termed as Variable Frequency Drive (VFD) and Variable Speed Drive (VSD), are electronic devices that is also utilized for motor protection and energy savings. Though the VFD such as the 20F11ND096AA0NNNNN, an AC motor may be programmed to implement controller Starting, Stopping, Ramping and even motor idle behavior.

20F11ND096AA0NNNNN normal duty outputs include continuous output current of 96 Amperes, 106 Amperes for 1 minute, 144 Amperes for 3 Seconds and continuous output power of 75 HP. For heavy duty operation, it has a continuous output current of 77 Amperes, 116 Amperes for 1 minute, 144 Amperes for 3 seconds and 60 HP continuous output power.

This drive comes with an integrated braking resistor, EMC filter, and DC Link choke. It may be installation in process areas that requires Open Loop Speed Regulation, Closed Loop Speed Regulation, Precise Torque and Speed Regulation, Accurate Positioning with PCAM, Indexer and Gearing on top of speed and Torque control.

For the input type, the 20F11ND096AA0NNNNN PowerFlex 753 Drive uses Precharge and AC input with DC terminals.

In addition, the drive uses the DB Transistor as its dynamic breaking. It is also worthy to note that 20F11ND096AA0NNNNN PowerFlex 753 Drive has an interior permanent magnet. Also, this drive has a filtered EMC filtering option without a CM Jumper. For feedback, communication, additional power supplies, and safety, the device offers three available slots. More so, it has option cards that permit the addition of more I/O capabilities. Also, for communication, the 20F11ND096AA0NNNNN PowerFlex 753 Drive may be installed with dual-port Ethernet with an IP Option Module. This device features an IP20 NEMA open enclosure type with frame size 5. On the voltage rating, it has a voltage class of 480 Volts AC at a Horsepower rating of 3 Horsepower. Additionally, the 20F11ND096AA0NNNNN PowerFlex 753 Drive has a power rating of 96 Amps operating at 75 Horsepower (Normal Duty) and 60 Horsepower (Heavy-Duty).
