Allen-Bradley 20F11ND8P0AA0NNNNN

The Allen Bradley/Rockwell Automation 20F11ND8P0AA0NNNNN variable frequency drive is a 5 Horsepower rated VFD. Furthermore, this unit also has an IP20/IP00 Open enclosure. Furthermore, this unit features 3 option slots on the VFD. Additionally, it is a 8 A VFD, has a brake in case braking is required, and is powered via 480VAC/650V DC. Also, this VFD has a plastic cover in place of the interface module but an HIM module can be added such as a 20-HIM-A6.

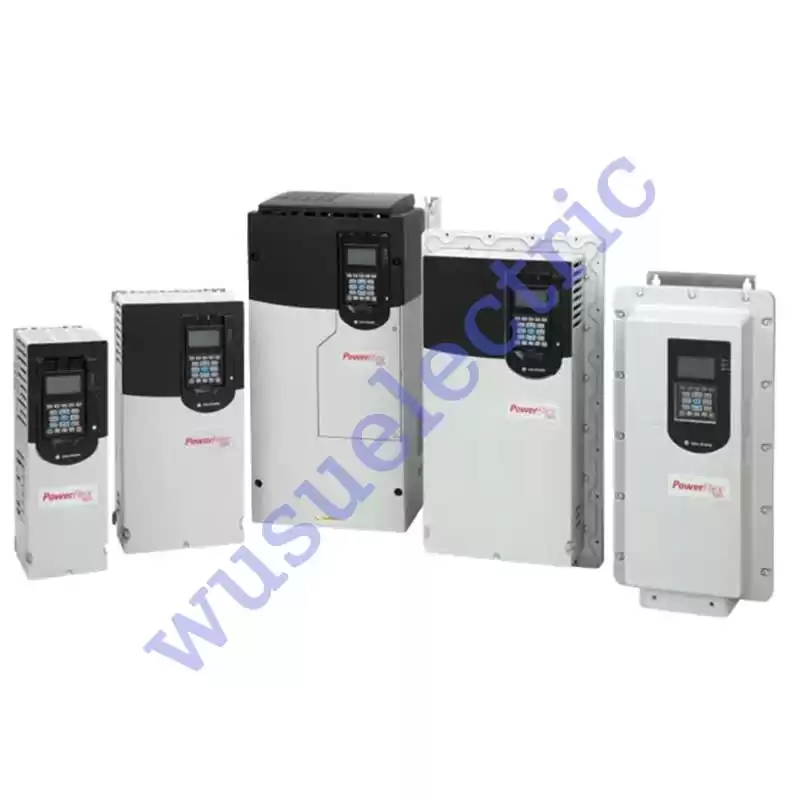

The Allen-Bradley 20F11ND8P0AA0NNNNN PowerFlex 753 Adjustable Frequency AC Drive has 6-pulse AC input with DC terminals in the PowerFlex 750 product line by Allen-Bradley used for a wide range of motor control applications in a variety of settings. It has an internal dynamic transistor brake option, and it comes in an IP20/IP00 (NEMA/UL) Type Open industrial enclosure rating. It has a drive rating of 8.0 Amps, 5 Horsepower, with a 3-phase operational AC input voltage of 480 Volts AC at 60 Hertz and a DC input of 650 Volts DC, and it has a voltage tolerance of -/+10% at a 47 to 63 Hertz frequency range. The 20F11ND8P0AA0NNNNN has a displacement power factor of 0.98 over the entire speed range, with a drive efficiency of 97.5%, and with a drive to motor power ratio of 2:1. It also offers a programmable overcurrent trip with limits of up to 200% of the rated output, and it provides a Transient Line Protection of up to 6000 Volts, with phase-to-phase, plus phase-to-ground protection at the output by using Metal Oxide Varistors (MOV). It has a maximum short circuit rating of 200,000 Amps, and it is designed to ride through a 15-millisecond short power interruption with a Logic ride thru time of 2 seconds (9 seconds typical).

The 20F11ND8P0AA0NNNNN provides exceptional motor control using the Volts per Hertz control, and the Sensorless Vector control which provides outstanding torque speed even at a low motor speed of 15 RPM, and it utilizes the Sine-coded Pulse Width Modulated signal with a 4 KHz programmable carrier frequency. It has an adjustable output voltage range of 0 to the rated voltage, influenced by the 0 to 590 Hertz output frequency range and it provides 0.1% speed regulation across a 120: 1-speed range with -/+5% torque regulation in both open and closed-loop applications. The 20F11ND8P0AA0NNNNN offers 2 independently programmable Acceleration and Deceleration times (each time is programmed independently from 0 to 3600 seconds in 0.1-second increments), and it provides Class 10 Motor Overload Protection using an Electronic Overload Relay. It has a functional temperature range of 32 to 104 degrees Fahrenheit, at 5 to 95% relative humidity, and it has a storage temperature range of -40 to 158 degrees Fahrenheit. The 20F11ND8P0AA0NNNNN has a net weight of 7.8 kilograms, with total shipping dimensions of 134.5 x 424.2 x 212.0 millimeters, and it has KCC, c-UL-us, RCM, CE, and ABS certifications.
