Specifications
| Manufacturer |
Rockwell Automation |
| Brand |
Allen-Bradley |
| Part Number/Catalog No. |
20F1AND248JA0NNNNN |
| Series |
PowerFlex 753 |
| Frames |
6...8 |
| Enclosure Type |
AC Input w/Precharge, no DC Terminals |
| Frames 2 |
2...7 |
| Enclosure Type 2 |
IP20/IP00, NEMA/UL Type Open |
| Voltage |
480V AC/650V DC |
| Filtering |
Yes |
| Default CM Cap Connection |
Jumper Installed |
| Internal Resistor |
No |
| Internal Transistor |
Yes |
Advantage Products
| Allen Bradley |
2198-E1020-ERS |
Allen Bradley |
1756-OA16IK |
| Allen Bradley |
140G-K3F4-D30 |
Allen Bradley |
20BD077A3ANNAND0 |
| Allen Bradley |
20F1AND186AN0NNNNN |
Allen Bradley |
1769-IR6 |
| Allen Bradley |
1794-IE4XOE2 |
Allen Bradley |
2711-NC13 |
| Allen Bradley |
2080-IQ4OV4 |
Allen Bradley |
2094-AM05-S |
| Allen Bradley |
1756-IF8IK |
Allen Bradley |
20F11ND011AA0NNNNN |
| Allen Bradley |
440K-T11146 |
Allen Bradley |
2711P-T7C4D8 |
| Allen Bradley |
20F11NC8P7JA0NNNNN |
Allen Bradley |
2198-D012-ERS4 |
| Allen Bradley |
20AD5P0C3AYNANC0 |
Allen Bradley |
2711P-T10C22D8S |
| Allen Bradley |
150-C37NBR |
Allen Bradley |
20F1AND186AA0NNNNN |

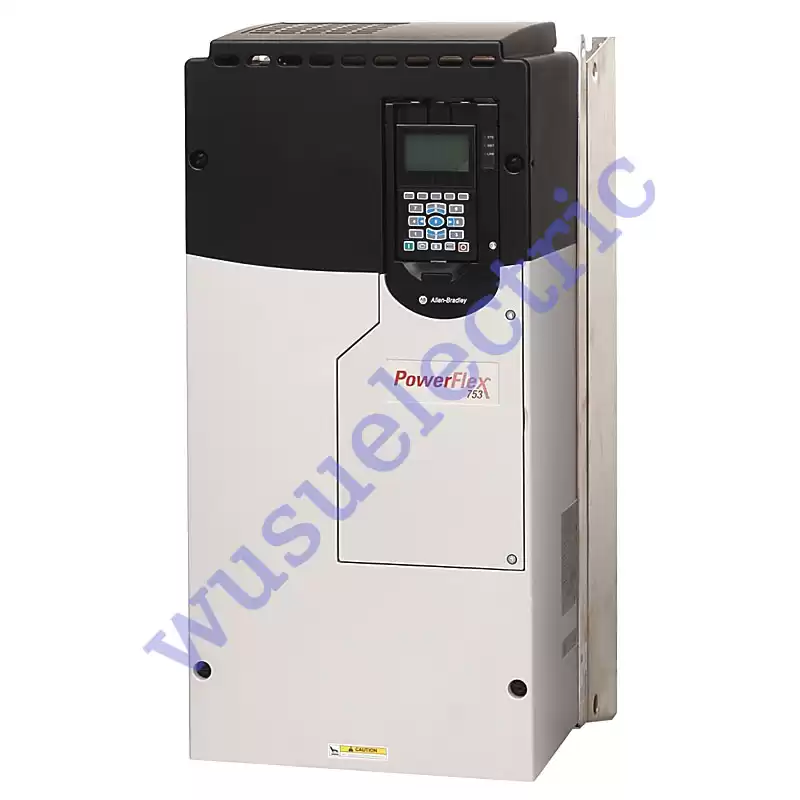

The 20F1AND248JA0NNNNN drive is a microprocessor-controlled AC drive designed and manufactured by Allen-Bradley. This intelligent motor speed controller belongs to the Allen-Bradley PowerFlex 753 product family and it offers premium speed regulation with slip compensation. It guarantees 0.5% base speed accuracy. It can support output requirements for motors rated at up to 248 kilowatts (200 Horsepower) and it has a card slots architecture which enables the extension of standard device functions. The 20F1AND248JA0NNNNN drive is 480 Volts AC power supplied (at 60 Hertz), but it operates with full power when it is supplied with 380 to 528 Volts AC voltage. It also supports a 650 Volts DC power supply. The drive has internal transistor dynamic braking, and it is equipped with an internal jumper for CM cap configuration.
The Allen-Bradley 20F1AND248JA0NNNNN drive does not include an integrated HMI, but this module can be ordered separately if needed. Several digital inputs and outputs are available to be configured for easier operation and device status acquiring. This drive is available in an IP 00 open enclosure with a frame size 6. With this AC drive, the OEMs are armed with a tool that can face many challenges from different applications as they build their machines. The supported motor control algorithms on the 20F1AND248JA0NNNNN drive are Volt per Hertz control, sensorless vector control, and vector control with FORCE technology. The drive has a wide working temperature range of 0 to 50 degrees Celsius, and its outer dimensions are 26.2 inches x 12.13 inches x13.64 inches.
