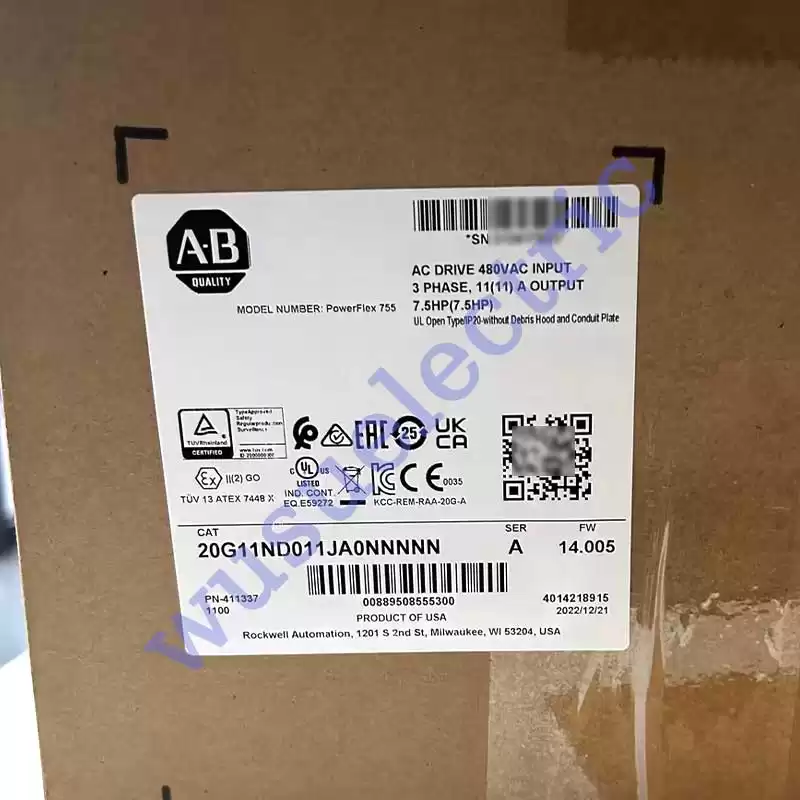

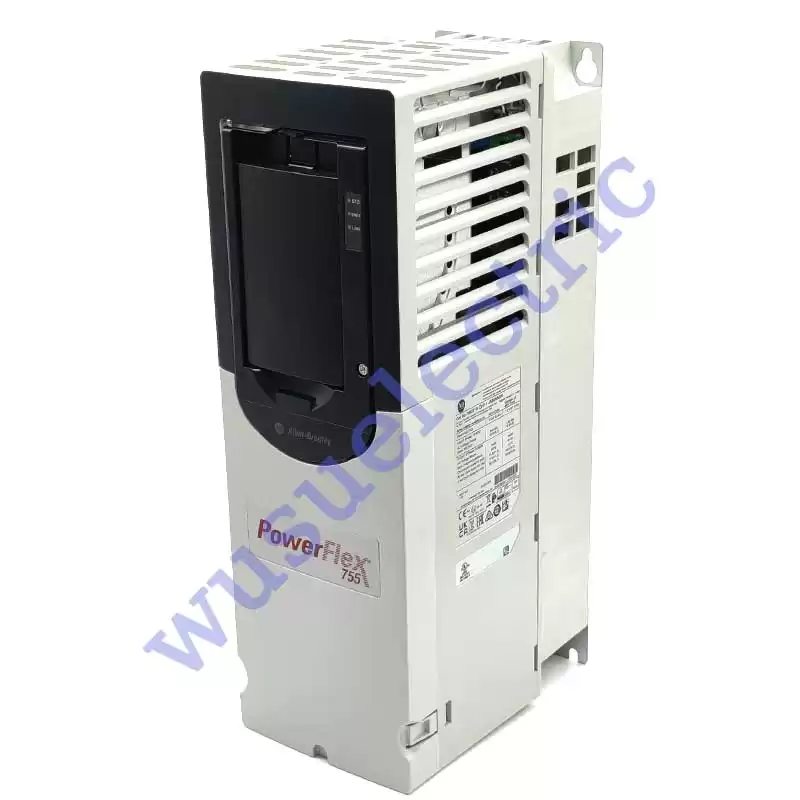

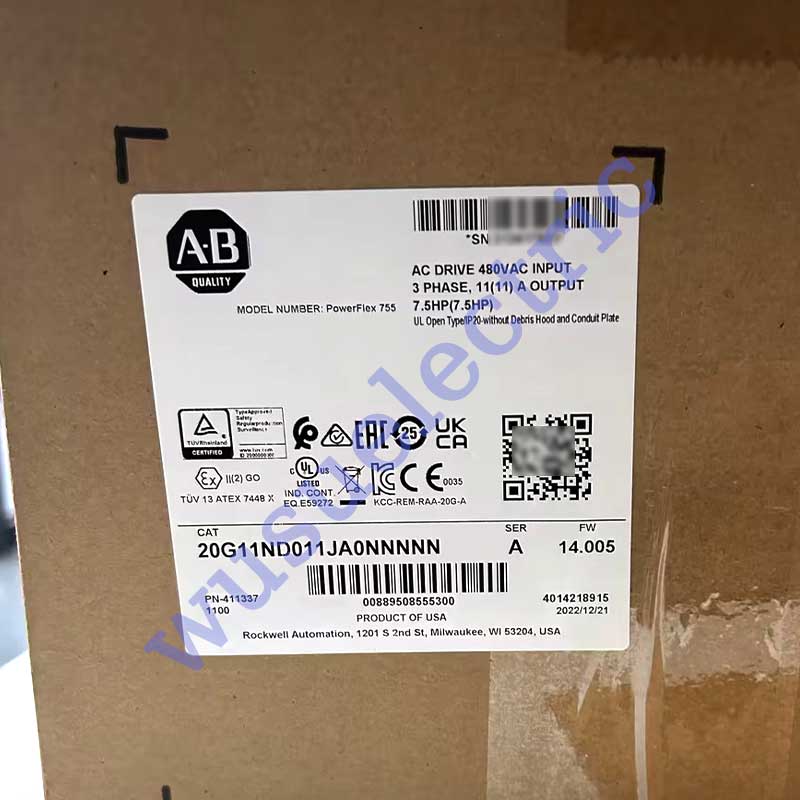

The Allen Bradley 20G11ND011JA0NNNNN drive comes with a HP rating of 7.5 horsepower. This PF 755 drive comes with embedded Ethernet included in this VAC drive. Furthermore, this module also is in an IP20 or IP00 enclosure. It has an output rating of 11A and needs 480VAC/650V DC. Additionally, it comes with a blank HIM cover instead of the keypad/LCD module but an HIM module can be added such as a 20-HIM-A6.
The Allen-Bradley 20G11ND011JA0NNNNN drive is a 60 Hertz AC drive. This drive can be mounted in an enclosure with an international protection rating of either IP 20 or IP 00. It can also be mounted in an enclosure with NEMA/UL open type rating. The 20G11ND011JA0NNNNN drive operates with both AC and DC voltages. However, when it is connected to an AC power source, the drive has a voltage rating of 480 Volts AC and the DC voltage rating stands at 650 Volts DC. The drive has a current rating of 11 Amps and a Horsepower rating of 7.5 Horsepower.
The Allen-Bradley 20G11ND011JA0NNNNN drive supports standard wire types for the power wiring. This standard wiring option can feature 4 tinned copper conductors with XLPE insulation, copper braid/aluminum foil combination shields and tinned copper drain wire, and a PVC jacket. Wires in this category should have a minimum insulation that can withstand 600 Volts AC and a temperature of 75 degrees Celsius. For signal wiring, the 20G11ND011JA0NNNNN drive can support a standard analog I/O wires that are 100% twisted with drain and 18 AWG in size. However, for the remote pot, the wire must be 18 AWG in size, and it must be the conductor and shielded wire. Note that the signal cables should be able to withstand a temperature of between 75 and 90 degrees Celsius. Additionally, their insulation material should be able to withstand a minimum voltage of 300 Volts AC. The 20G11ND011JA0NNNNN drive, like other AC drives from Allen-Bradley, should be mounted and operated in environments that are adequately ventilated with a good flow of cool air.
