The 22A-A2P1N113 AC drive is an Allen-Bradley/Rockwell Automation AC drive from the PowerFlex 4 series. It comes with an integral filter which is an S type of EMC filter, but it does not have an integral brake. The 22A-A2P1N113 AC drive is designed to operate with 240 Volts AC 1-phase input voltage at a frequency range between 50 and 60 Hertz. It can support a maximum output current rating of 2.1 Amps. The 22A-A2P1N113 AC drive is air-cooled and it can operate with 5 to 95% non-condensing relative humidity levels.

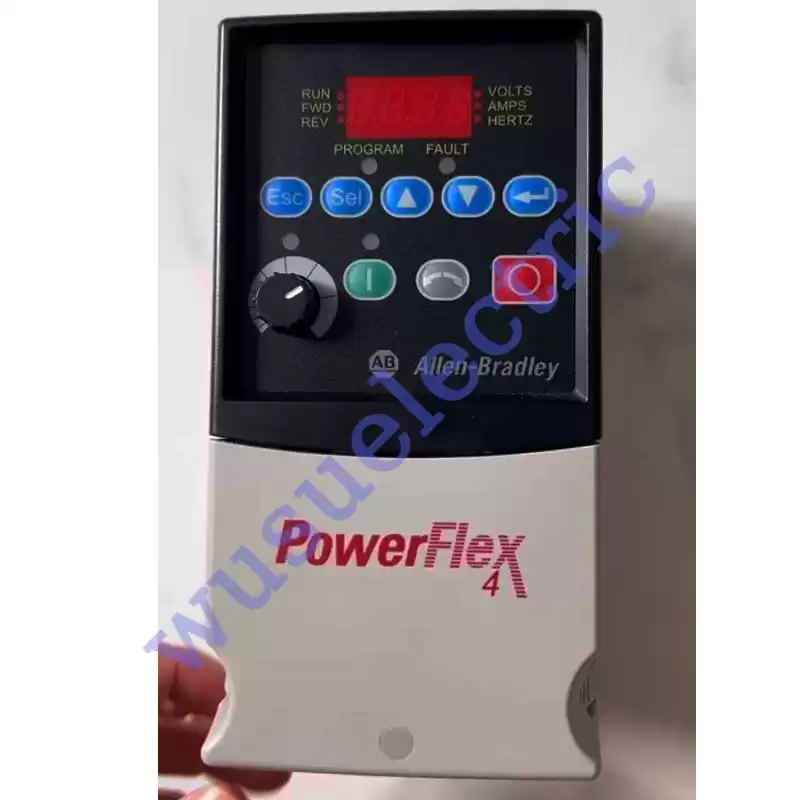

The Allen-Bradley 22A-A2P1N113 is a PowerFlex 4 AC drive. It is an air-cooled and single- phase drive that has a V/Hz control available. While this drive has no brake, it does have an integral "S Type" EMC filter that is CE-compliant to meet the EN55011 standard and an open loop speed regulation. The 22A-A2P1N113 drive comes with a fixed digital keypad and a 4-digit LED display that users can operate “out of the box.” Ten of the most common applications are preset and included in the Basic Program Group, saving programming time. Ten LED status indicators are also present in this drive, allowing users to monitor its status in real time.
Zero stacking is possible with the 22A-A2P1N113, which means that drives can be mounted side-by-side and with no air gaps in between. The 22A-A2P1N113 drive can be mounted using a DIN rail or panel mount and it has an IP20, UL-NEMA Type open enclosure, and a fixed terminal connection. It also has a Size A frame and the entire drive measures 5.98 x 3.15 x 5.35 inches. The 22A-A2P1N113’s power factor is 0.98 and its power rating is 0.4 kW or 0.5 Horsepower. It has a frequency rating of 50 to 60 Hertz, an amperage rating of 2.1 Amps, an input voltage rating of 200 to 240 Volts, and an output voltage rating of 240 Volts AC. Its relay contact has a resistive rating of 3 Amps at 30 Volts DC or 125 to 240 Volts AC and an inductive rating of 0.5 Amps at 30 Volts DC or 125 to 240 Volts AC. The drive has a maximum storage temperature of -40 to 85 degrees Celsius, a non-condensing relative humidity of 5 to 95%, and a maximum operating altitude of 1000 meters. Its operating shock is 15 g at 11 milliseconds and its operating vibration is 1 g at 5 to 2000 Hertz.
