The Allen-Bradley 22A-D8P7N104 is a PowerFlex 4 Variable Frequency Drive (VFD). This VFD is powered with an input voltage range of 342-528 VAC, 3-phase with applicable motor output of 8.7 A and Power of 3.7 kW (5.0 HP).
The Allen-Bradley 22A-D8P7N104 is an industrial equipment that is manufactured by Allen-Bradley, primarily used to implement speed control of industrial AC motors. This product is part of the PowerFlex 4, Scalar control capable Variable Frequency Drives (VFD).

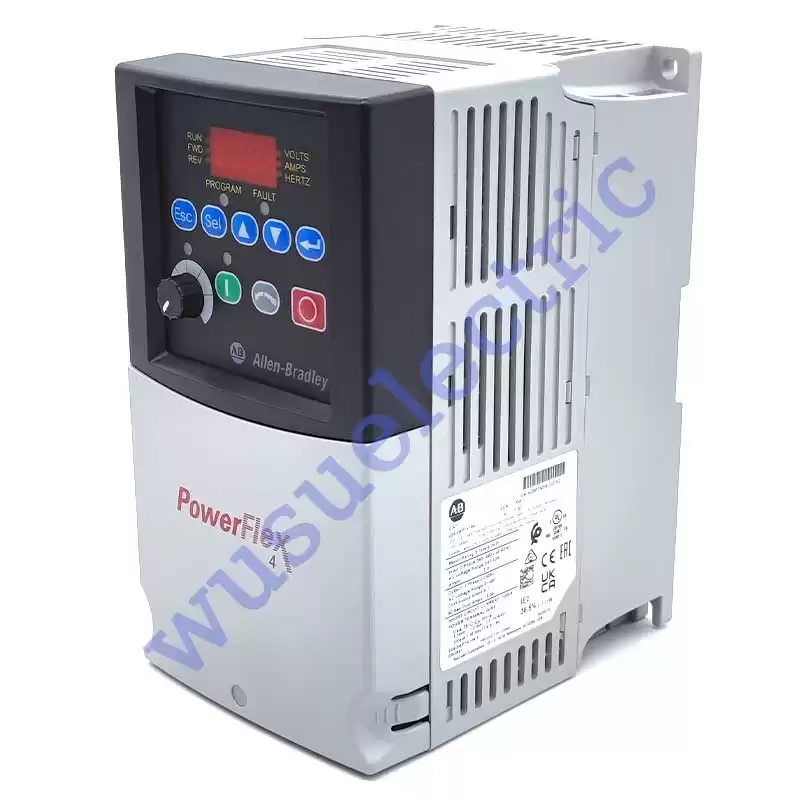

The 22A-D8P7N104 features features an integrated Insulated Gate Bipolar Transistor (IGBT) brake and a fixed keypad used for local configuration and control of the drive.
The 22A-D8P7N104 is designed to be operated with an input voltage supply range of 342-528 VAC, 3-phase, input current of 9.0 Ampere along a frequency range of 48-63 Hz. It is capable of providing output voltage ranging from 0-460VAC, frequency of 0-240Hz, and continuous output current of 8.7 Amperes. The applicable motor rating for this drive is 3.75 kW or 5.0 Horsepower.
Recommended motor circuit protection is Allen-Bradley 140M-C2E-C16 and drive contactor such as 100-C16. The minimum enclosure volume for installing this drive is 1655 in. This drive has an Overvoltage rating where Trip occurs at 810V DC bus voltage (equivalent to 575V AC incoming line) and undervoltage rating where trip occurs Trip occurs at 390V DC bus voltage (equivalent to 275V AC incoming line).
The Allen-Bradley 22A-D8P7N104 PowerFlex4 AC drive regulates the speed of machines and grants users an interface through an LED display and a locally-fixed keypad for configuration and control. The 22A-D8P7N104 is programmable by a PC through an RS-485 port. Other devices can also connect to the 22A-D8P7N104 through the same communication port. It is a drive in the PowerFlex4 drive series with output ratings of 3.7 kW (5.0 Horsepower) output power and an 8.7 Amperes. It has an input voltage between 340 to 528 Volts AC a current of 9.0 Amps and an apparent input power rated at 8.6KVA. It is recommended to be used with circuit protection such as 140M-C2E-C16 motor protector, 100-C16 contractor, and 15 UL Class J (type) fuses.
The 22A-D8P7N104 is a panel mount, IP20, NEMA/UL open-type enclosure drive with a dissipated power of 145 Watts. It has a programmable output frequency between 0 to 240 Hertz and offers an operational efficiency of 97.5%. The 22A-D8P7N104 has a digital control input that is easily switched between source mode (18 to 24 Volts = ON/0 to 6 Volts = OFF), and sink mode (0 to 6 Volts = ON/18 to 24 Volts = OFF). It also has an analog control input of 4 to 20mA (Analog)/0 to 10 Volts DC (Analog) at 100kVA input impedance. The 22A-D8P7N104 has a programmable output control of form C relay. The 22A-D8P7N104 has protection against an over current at 200% hardware limit for 60 seconds and an over voltage protection at around 575 Volts AC. It has a carrier frequency of 2 to 16 kHz and provides a Class 10 protection with speed-sensitive response protection against a motor overload of 150%. Its dimensions are 5.98 by 3.15 by 5.35 inches and weighs 2.2 kilograms (4.9 pounds).
