Product Details:

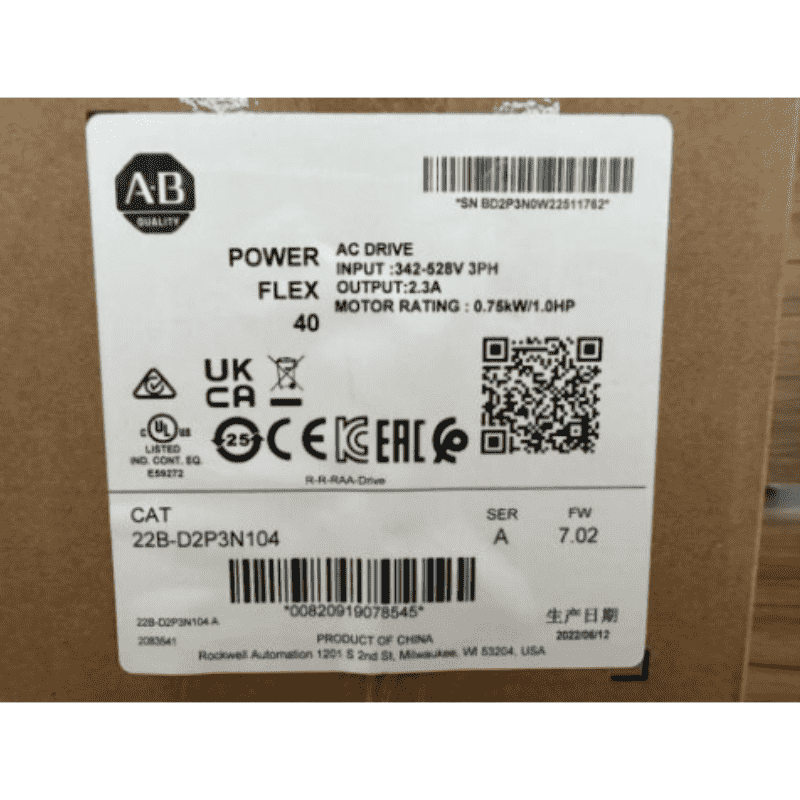

- The Allen-Bradley 22B-D2P3N104 is a 2.3 Amp, 0.75 kW (1.0 Horsepower) output rated model in the 3-phase PowerFlex 40 Adjustable Frequency AC drive family. It comes with a 480 Volts input voltage at 50 to 60 Hertz and an IP20 NEMA/UL type open enclosure. With a B frame, installation is quick and simple using a DIN rail. It offers optimized performance features including sensorless vector control, robust overload protection, relay pre-charge, removable MOV, adjustable PWM frequency for quiet operation, as well as source control for wiring flexibility.
- The 22B-D2P3N104 PowerFlex 40 Drive has an integral PID loop to control proportional, integral, and differential functions. The user can set process feedbacks like tension, flow, and pressure. These reference points will then be used by the PID loop to generate error values, enhancing application flexibility. This drive can be used for basic trim control and exclusive control.
- The 22B-D2P3N104 features UL, CUL, KCC, and EAC certifications, and approvals. It has a removable MOV that allows it to operate with ungrounded systems. Its ground fault protection ensures reliable operation in the start and running phase of the motor. It has a Class 10 motor overload protection of 150% for 60 seconds, and 200% for 3 seconds. Plus, it safeguards against overcurrent with 300% instantaneous fault and 200% hardware limit.
