Allen-Bradley 22F-D8P7N103

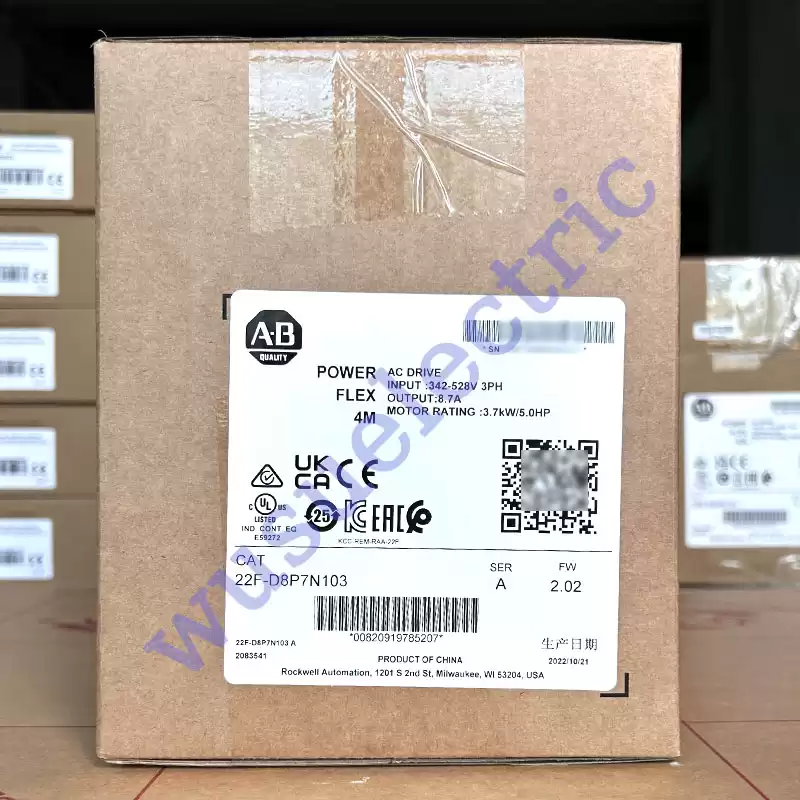

The Allen-Bradley 22F-D8P7N103 is a PowerFlex 4M Variable Frequency Drive (VFD). This VFD is powered with an input voltage range of 340-528VAC, 3-phase with applicable motor output 8.7 A and Power of 3.7kW (5.0 HP).

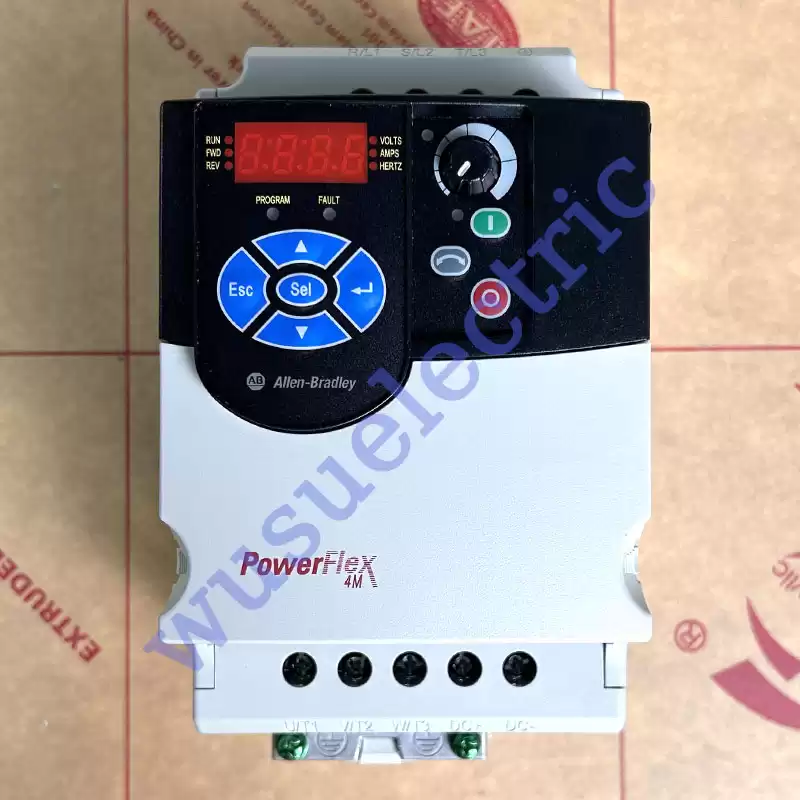

The 22F-D8P7N103 by Allen Bradley product that belongs to the PowerFlex 4M AC series. This drive is operated with a Three-Phase, 480 Volts AC input. It delivers an 8.7 Amperes output current. The 22F-D8P7N103 has a Frame Size B and an IP20 NEMA (Open Type) enclosure design. It has a LED display and fixed digital keypad.

The 22F-D8P7N103 is one of the smallest and most cost-effective members of the PowerFlex 4M AC drive series. Its wiring is remarkably easy to feed, and its programming system offers adaptability along with seamless management of a large variety of applications. The 22F-D8P7N103 drive use an Integral RS-485 communication with Volts per Hertz control and slip compensation, in addition to being equipped with ramp regulation and drive overload protection.

The 22F-D8P7N103 does not have a CE Compliant Filter or a Brake drive. Its power rating is 3.7 kW with 5 Horsepower, making it a small, cost-effective drive that provides a powerful motor speed control in a compact, space-saving design.

Additionally, the 22F-D8P7N103 supports various types of communication option cards, including EtherNet/IP and DeviceNet. It equips a feed-through wiring system for simple retrofitting into applications demanding variable speed motor control. It supports DIN rail mounting and must be operated in an ambient temperature of 50 degrees Celsius with a minimal amount of spacing between each drive. The 22F-D8P7N103 integral keypad can be operated right out of the box, allowing for simple structuring and easy operation, and eliminating the need for immediate necessary programming.

The 22F-D8P7N103 is a PowerFlex 4M adjustable frequency AC drive by Allen-Bradley. This drive is part of the most cost effective and smallest variable frequency drive product. This drive is ideally used for implementing machine level speed control, especially fitted with global Original Equipment Manufacturer (OEM) requirements.

The 22F-D8P7N103 is a Frame B drive. It delivers an output voltage range of 0-460VAC, 3-Phase, output current of 15 Amperes, output frequency of 0-400 Hz, efficiency rating of 97% and output power that is applicable for AC motors rated 3.75 kW (5.0 HP).

The 22F-D8P7N103 supports full integration to modern control systems via the Premiere Integration by Allen-Bradley. With Premiere Integration, parameters of the 22F-D8P7N103 are directly linked via communication bus to any Logix controllers such as CompactLogix and ControlLogix controllers. With premiere integration, hardwiring of signals are eliminated while connectivity is made from the 22F-D8P7N103 drive, all the way up to control systems such as Human Machine Interface (HMI), Supervisory Control and Data Acquisition (SCADA) and Distributed Control Systems (DCS).

While premiere integration is available, the 22F-D8P7N103 may still be operated locally using the embedded keypad and LCD display. Remote hardwired connection may also be established using the embedded input and output channels of the 22F-D8P7N103 such as Five (5) Sink / Source discrete inputs, One (1) Form C Contacts output, and One (1) Analog Input 0-10VDC; 0-20mA. These embedded I/O channels allow remote manual and automatic operation of the drive. This is the most common method utilized in different industries as the hardwired method proved to be robust and increases high availability.
