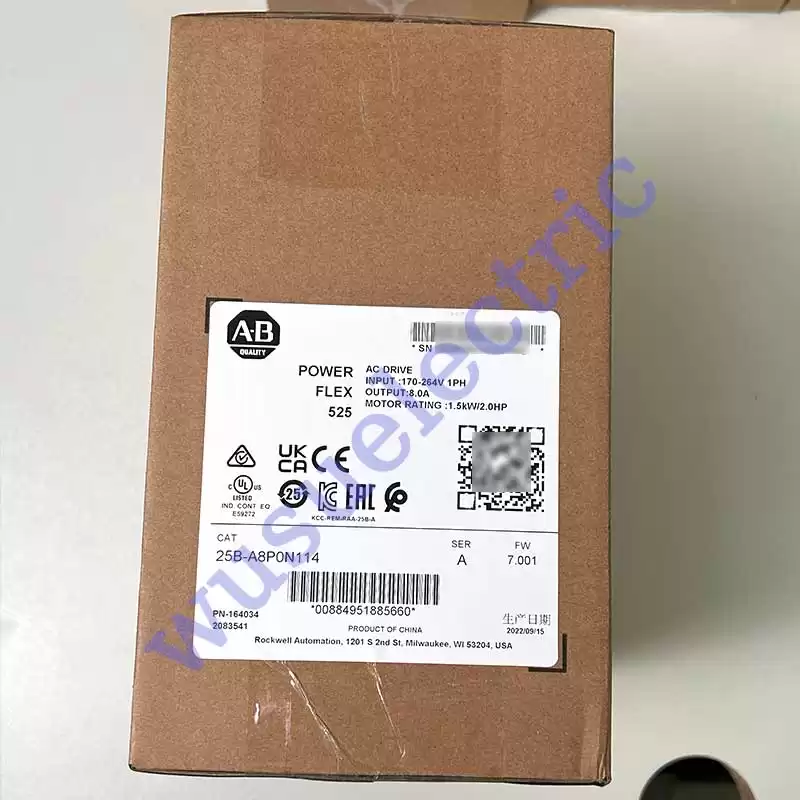

The 25B-A8P0N114 drive is an Allen-Bradley/Rockwell Automation PowerFlex 525 series drive with an EMC filter. It operates with 200 to 240 Volts AC of 1-phase input voltage and with 0 to 230 Volts AC of 3-phase output voltage. The 25B-A8P0N114 drive can generate 2 Horsepower or 1.5 kilowatts of output in both normal duty applications and heavy-duty applications. Its current rating is 8 Amps. The 25B-A8P0N114 drive supports a standard interface module and an IP 20 rated open enclosure.
The 25B-A8P0N114 is one of the more recent additions in Allen-Bradley’s popular Powerflex series family. The 25B-A8P0N114 has a sleek and compact design philosophy which helps to economize space when installing the power drive. Coming with an EMC filter, the 25B-A8P0N114 is a single-phase drive. For supporting easier input, control, and modification the 25B-A8P0N114 comes with an EtherNet IP port. The 25B-A8P0N114 also benefits from having more I/O than the previous Powerflex 523 Series drives which gives it significant performance boosts compared to previous models.
The 25B-A8P0N114 supports application-specific programming as well as the handy USB programming option that is unavailable in previous Powerflex series models. The supply voltage requirement of the 25B-A8P0N114 is 230 Volts while the current rating for the device is 8 Amps. The output frequency for the device is 500 Hertz. The only restriction that comes with the 25B-A8P0N114 is that it can be only used with networked devices and machines. The operational temperature for the 25B-A8P0N114 ranges between -20 and 70 degrees Celsius. The mounting method type for the 25B-A8P0N114 is a DIN rail system and it also comes with a filter. It requires an IP20 or IP30 enclosure type when being installed. The length, breadth, and height dimensions for the 25B-A8P0N114 stand at 87 x 180 x 172 millimeters respectively. It is also UL and TUV certified.
