Brand Name                 AB

Product reference     2706-P22R

Solid state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (publication SGI-1.1 available from your local Rockwell Automation sales office or online at http://literature.rockwellautomation.com) describes some important differences between solid state equipment and hard-wired electromechanical devices. Because of this difference, and also because of the wide variety of uses for solid state equipment, all persons responsible for applying this equipment must satisfy themselves that each intended application of this equipment is acceptable. In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams. No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual. Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited. Throughout this manual, when necessary, we use notes to make you aware of safety considerations.

Mount the 2706-P22R Display

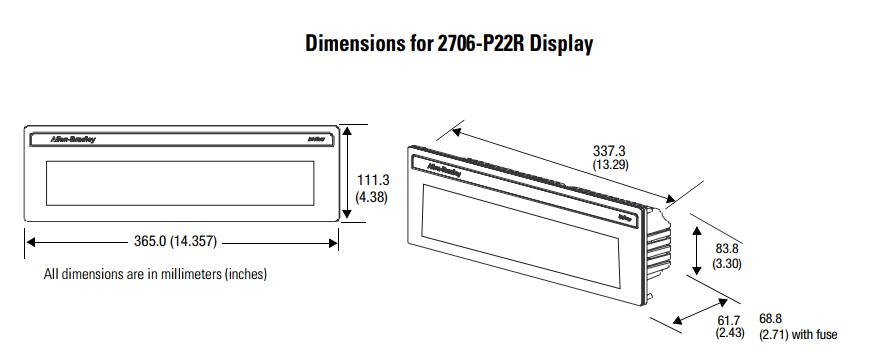

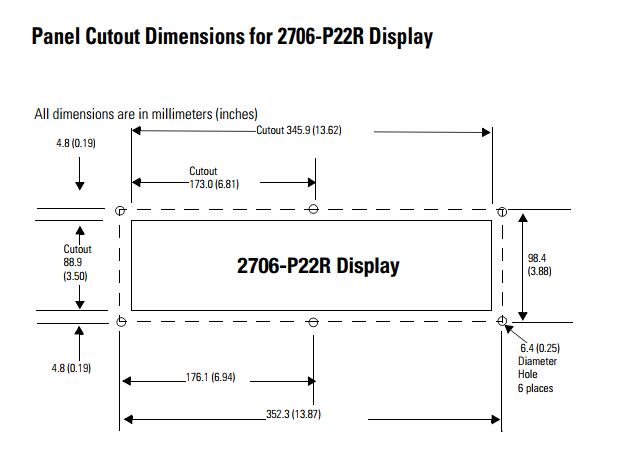

The following provides panel cutout dimensions and overall dimensions for the InView P22R panel mount display. The InView P22R mounts in a custom panel or enclosure. When it is properly installed, the faceplate provides a NEMA Type 12, 13, and 4X(indoor) rating. To mount the display: 1. Cut and drill the appropriate mounting holes in the enclosure or panel. Refer to Panel Cutout Dimensions for 2706-P22R Display on page 1-23 2. Remove the six mounting nuts and washers from the hardware bag provided with the display. 3. Position the InView Display in the panel or enclosure mounting hole. 4. Install washers and nuts and alternately tighten the nuts to a torque of 0.904 Nm (8 lb-in).

InView P22R mounting and panel cutout are identical to DL40 Plus, DL40, DL20 and DL10 two line displays.

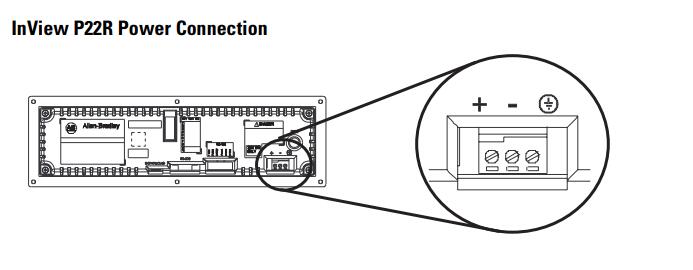

Electrical Connections for 2706-P22R Display The InView display requires 18 to 30V dc, 0.5 A at 18V dc.

Before making power connections, make sure that the power is turned off. Improper wiring of the power connections may result in personal injury or damage to the InView display. Make sure the area around the panel cutout is clear. Make sure metal cuttings or debris did not enter any components that may have been installed in the panel.

To satisfy all agency requirements and ensure proper operation, power this product using a 24V dc, class 2 SELV power supply. TIP Use a small screwdriver to remove the terminal block’s header to ease product wiring.
