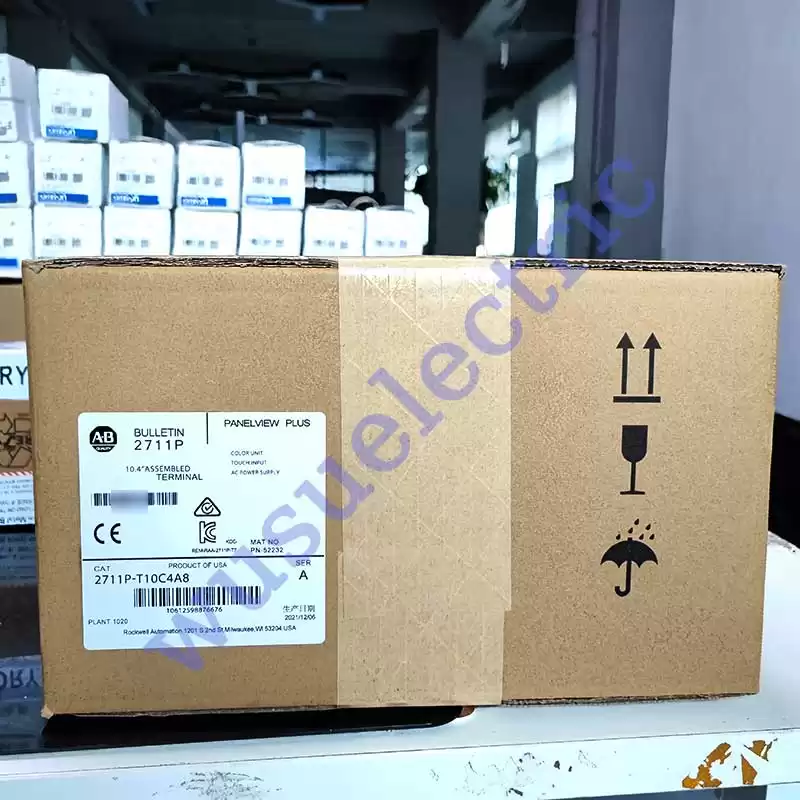

Allen-Bradley 2711P-T10C4A8

Specifications

2711P-T10C4A8 is a PanelView Plus 6 operator terminal. This operator is the predecessor of the PanelView Plus product family that is loaded with various modern specifications. It remains to be a cost effective and rugged Human Machine Interface (HMI) solution, providing real-time interface between process and machine.

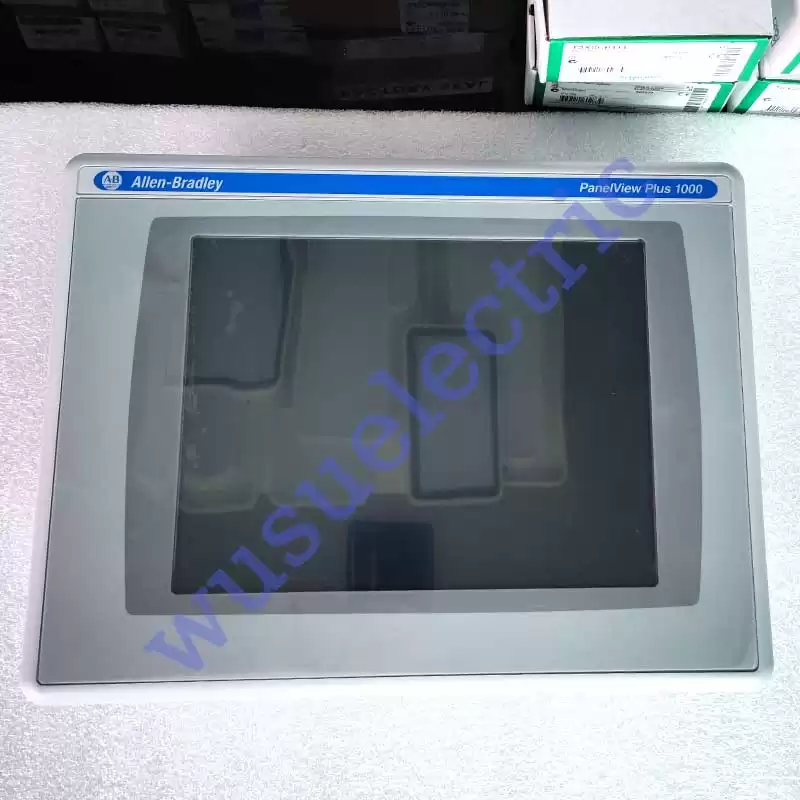

This operator terminal comes with a Color active TFT matrix screen with size of 10.4-inches. It has a resolution of 640 x 480, 18-bit color graphics and effective viewing area of 211 x 158 mm (8.3 x 6.2 in.). This operator terminal comes with a filed replaceable backlight that is designed with minimum operation life of 50,000 hours min at 25 ° C (77 °F). The display screen not only provides the process readout but also houses the input interface via the 8-wire analog resistive touchscreen designed for 1 million presses at an actuation force of 10-110 g. This operator terminal exchanges data to and from partner automation devices via the embedded 9-Pin Sub-D serial interface of the RJ45 Ethernet communication port. Additionally, this operator has Two (2) USB host and device ports which may used for inserting external input peripherals such as a mouse and keyboard as well as removable storage via a USB flash drive.

It come with 512MB Flash memory and 512 MB Random Access Memory (RAM) and powered by an external supply voltage of 100-240VAC, 50-60 Hz.

2711P-T10C4A8 Terminal has a 10.4-inch TFT display with resistive touchscreen input. The native resolution is 640 x 480 pixels with 18-bit color graphics. It has 512 MB of RAM and 512 MB of nonvolatile memory for data storage. The 2711P-T10C4A8 weighs 8 pounds and measures 16 x 14 x 8 inches. It requires an input voltage of 100 to 240 Volts AC at 50 to 60 Hertz with a 160 VA maximum power consumption. For communication, it has Ethernet and RS-232 serial ports with optional DH-485, DH+, and ControlNet module ports. The 2711P-T10C4A8 also has 2 USB ports for connecting external devices such as keyboards and flash drives. The user is able to control the 2711P-T10C4A8 operator interface by utilizing the touchscreen to input information and data.

For data backup and logging, it also supports an SD card. The 2711P-T10C4A8 includes a real-time clock for timestamping critical data. The clock is battery-backed, and it has a minimum battery life of 4 years. It has major improvements over its predecessors in the areas of speed, transition rate, system memory, storage space, and backlight illumination.

Advantage Products

FAQ

1.Q:Other suppliers have a better price than yours?

A: ''To create the greatest benefit for clients'' is our belief, if you have a better price, please let LANEN know. We will try the best to meet your target price and support you.

2.Q:What's the delivery time ?

A: Normally we have enough stock for regular models(such as PLC FX3U-64MR/ES-A ) and we can deliver immediately at the same day after payment received. For some products that is not in stock, we normally deliver within one week.

3.Q:What is the standard of package?

A: Export standard package or special package according to customer requirement.

4.Q: Could Wusu provide technology support?

A: We're in this field for more than 15 years and we have our own technical team. Our engineer could give suggestion and help to solve the problem if there's any problem.

5.Q:Does Wusu keeps goods in stock or only trading?

A: We have warehouses in Guangzhou and HongKong and keep large stock of goods in it, that's how we promise fast delivery.
