Specifications
| Brand |
Allen-Bradley |
| Power Consumption: |
160VA max, 65VA typical |
| Power Supply Input Voltage range: |
100…240V AC, 50…60 Hz |
| Communication ports: |
Ethernet, RS-232, DH485, 2 USB host |
| Battery (real-time clock): |
Battery-backed clock timestamps critical data, accuracy is ±2 minutes per month Battery life: 4 year min at 25 °C (77 °F) Field-replaceable: cat. no. 2711P-RY2032 or equivalent CR2032 coin-cell lithium battery |
| Terminal Memory: |
512 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory) |
| Touch interface: |
8-wire analog resistive Actuation: 1 million presses; operating force: 10…110 g |
| Resolution: |
640 x 480, 18-bit color graphics |
| Display Area: |
132 x 99 mm (5.2 x 3.9 in.) |
| Display Type: |
Color active-matrix TFT |
| Operator Input: |
Touch |
| Product Family: |
PanelView Plus 6 Graphic Terminals |
| Manufacturer |
Rockwell Automation / Allen-Bradley |
| Part Number/Catalog No. |
2711P-T7C4A8 |
| Display Size |
5.5 in. |
| Product Line |
Panelview 6 Plus |
| Display Color |
Color |
| Input Type |
Touchscreen |
| Communication |
Ethernet and RS-232 |
| Input Power |
100 to 240 Volts AC |
| Memory |
512 MB RAM |
| Backlight |
2711P-RL7C2 |
| Communication Cable |
2711-NC13 |
| Shipping Weight |
8 pounds |
| Shipping Dimensions |
14 x 11 x 8 inches |
| Series |
Series A and Series B |
| UPC |
10612598876614 |

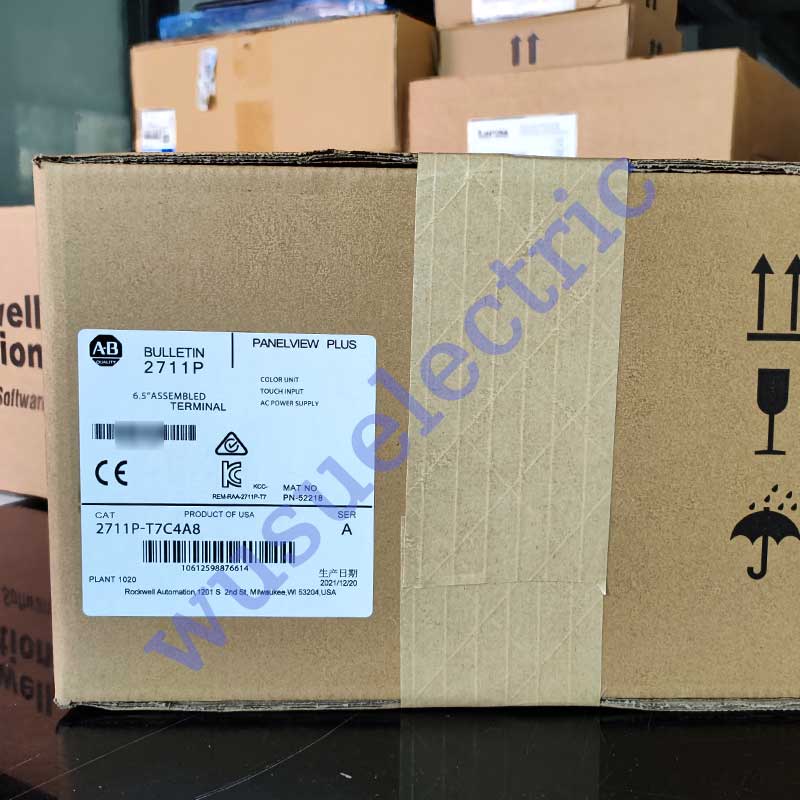

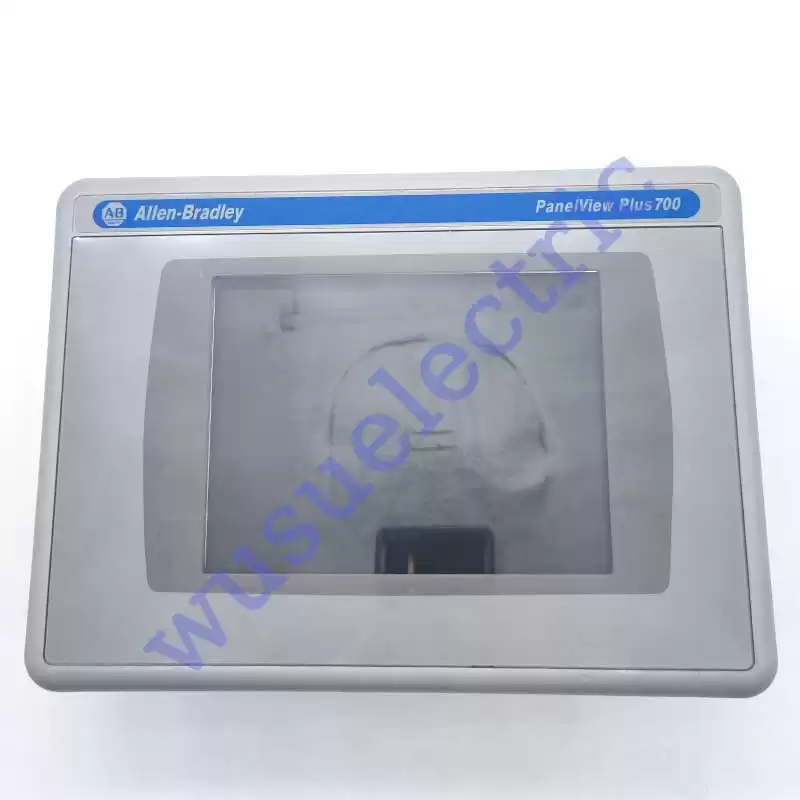

The Allen-Bradley 2711P-T7C4A8 is a PanelView Plus 6 operator terminal. This operator termina is primarily used for implementing real-time monitoring and control interface between plant operators and machines or processes being controlled.
Primary features of the 2711P-T7C4A8 includes a 6.5-inch Color active matrix, thin-film transistor (TFT) display. It has an effective display area of 304 x 228 mm (12.0 x 9.0 in.) (HxWxD) with resolution of 1024 x 768, supporting 18-bit color graphics. It comes with a replaceable backlight with minimum lifespan of 50,000 hours min at 25 ° C (77 °F). For operator input, the provided input interface is an 8-wire analog resistive touchscreen interface with actuation lifespan of 1 million presses when operated at 10…110 g while the embedded communication interfaces include One (1) Ethernet, One (1) RS-232 and Two (2) USB ports. These ports may function simultaneously which means each port can be occupied by individual partner devices. Specifically, the Ethernet port is designed for multi-node communication, supporting 10/100 Mbps transmission rate while the RS232 port supports serial communication, compatible with RS232 and DH485 communication protocol. The USB port is mainly used for insertion of peripheral devices such as keyboard, mouse and removable storage devices.
The 2711P-T7C4A8 is powered using 18 to 32 VDC and 100 to 240 Volts AC at 50 to 60 Hertz. The DC power consumption is 15 Watts maximum (0.6 Amps at 24 Volts DC), 9 Watts typical (0.375 Amps at 24 Volts DC) and the AC power consumption is 35VA maximum, and 20 VA typical. It has an internal memory of 512 MB RAM and 512 MB nonvolatile ROM. The approximate shipping weight is 8 pounds and the dimensions are 14 x 11 x 8 inches. The internal backlight of the 2711P-T7C4A8 terminal is replaceable and the replacement part number is 2711P-RL7C2.
