Allen-Bradley 6181P-12TPXPH computer

           About 6181P-12TPXPH

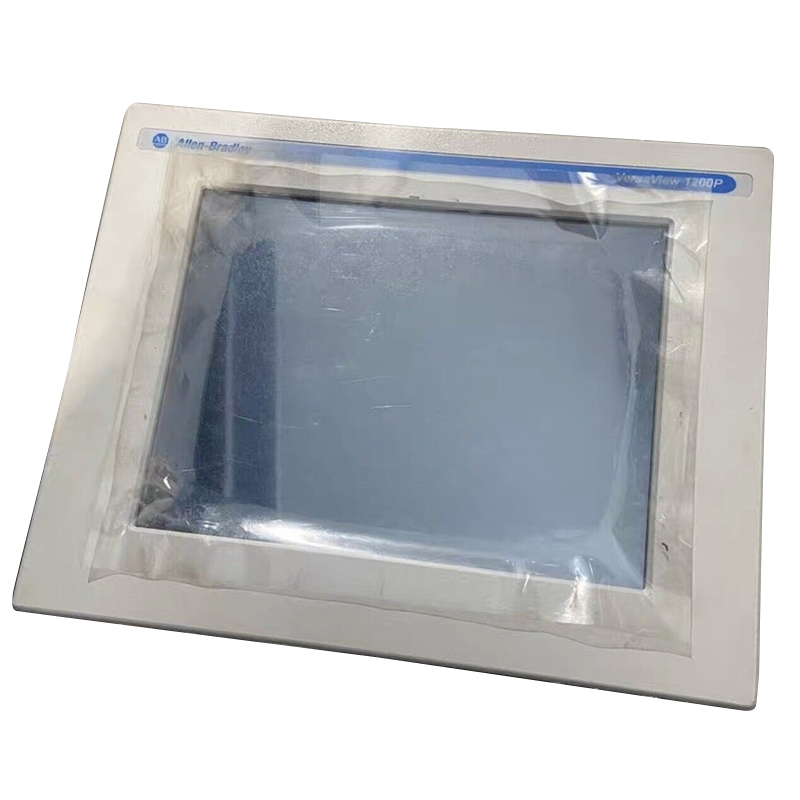

• The Allen-Bradley 6181P-12TPXPH is a VersaView 1200P display computer that has a 12.1-inch display and a touchscreen input with a typical response time of 15 ms. It uses an active matrix TFT display with 256K colors and a pixel resolution of 800 x 600. You can install an optional resistive antiglare shield to the screen. Note that the display area measures 9.7 x 7.3 inches. The entire 6181P-12TPXPH computer measures 10.99 x 13.75 x 6.93 inches and weighs 9.3 kg or 21 lbs.

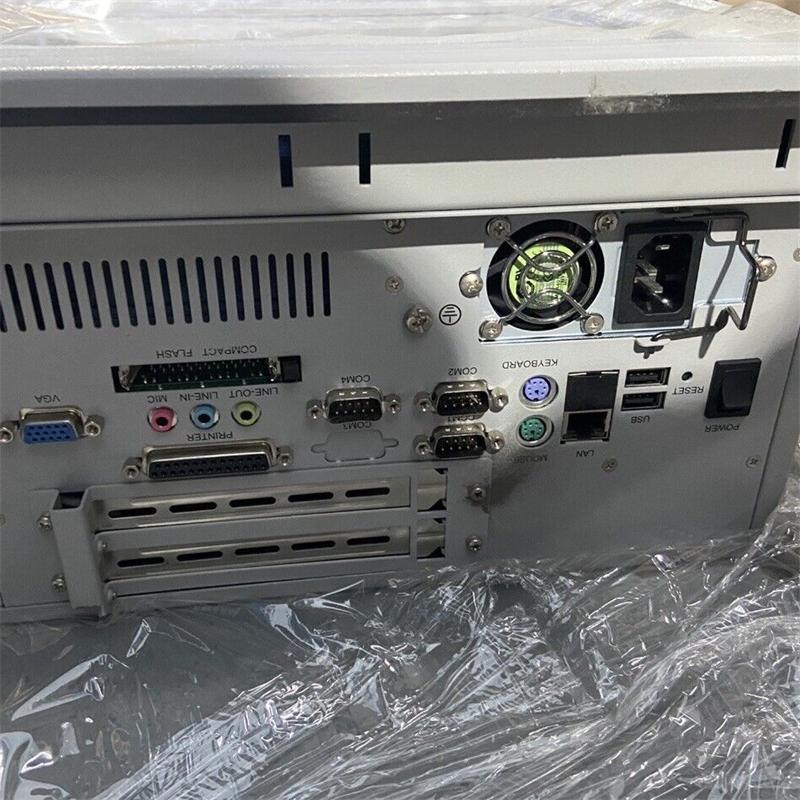

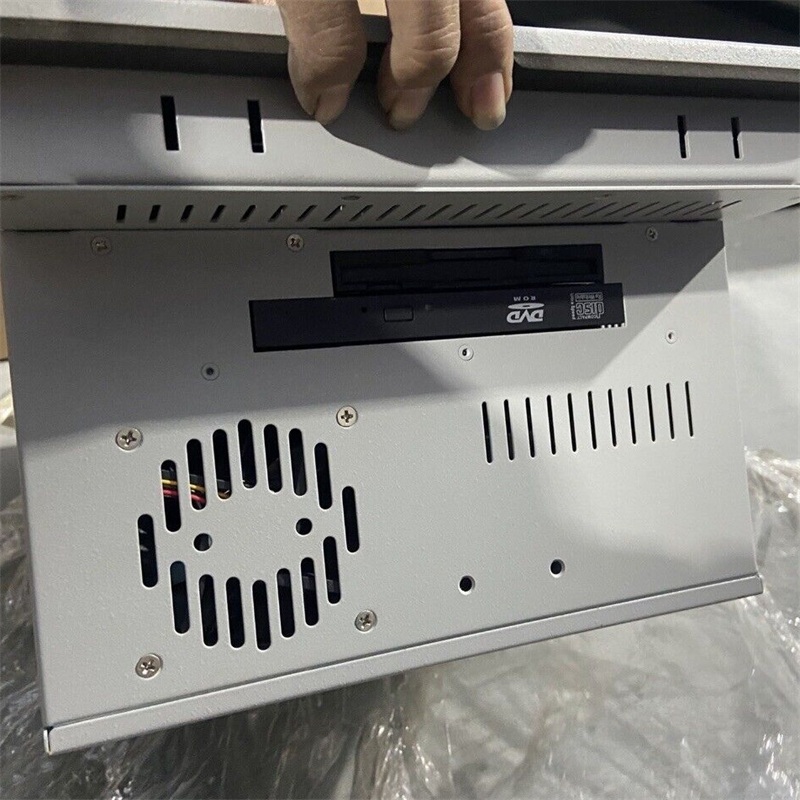

• The enclosure ratings for the 6181P-12TPXPH computer are NEMA Type 1, 12, 4, and IP66. This computer also has a rotating media hard drive, a floppy disk drive, and a CD-ROM drive. You can expand its memory through the CompactFlash expansion slot and PCI expansion slots. The 6181P-12TPXPH also has several communication ports available, such as PS2 ports for the mouse and keyboard (1 each), 1 RJ45 Ethernet 10/100 port, 1 printer port, 2 USB ports, VGA port, and 3 COM ports, which specifically are COM1, COM2, and COM3 ports.
• The 6181P-12TPXPH computer has a 47-63 Hz line frequency, a 150 VA power consumption (1.5A at 100V RMS, 0.63A at 240V RMS), and a 90-264V AC input voltage, auto-ranging. At ½ sine, 11 ms, shocks of this computer are 15g for operating and 30g for non-operating. Its vibrations are 1g and 2g for operating and non-operating respectively, both at 10-500 Hz. The 6181P-12TPXPH’s operating temperature ranges from 0-122 ËšF, the non-operating temperature ranges from -4-140 ËšF, and the non-condensing relative humidity range for both temperature ranges is 10-90%.
