Brand Name AB
Product reference 1761-NET-AIC

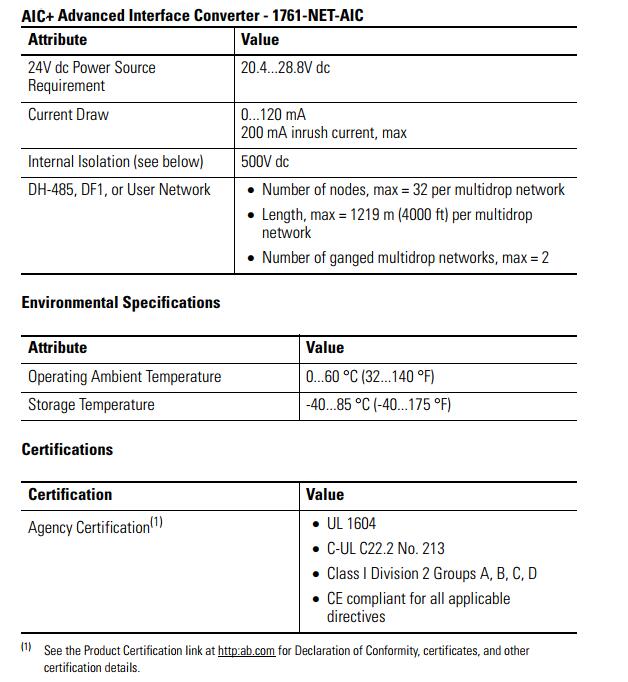

General Specifications
(1) You can connect two DF1 Full-duplex devices together with one AIC+ interface converter.
DF1 Master-slave Yes(2)
(2) Any communication coming off
of the RS-485 line will not drive the carrier detect lines on the RS-232 (DB-9,
DTE) communication port and the RS-232 (8-pin mini-DIN) communication port.
If the devices require carrier
detect high, it must be jumpered high locally at the device’s RS-232 port. Devices on RS-232 (DB-9, DTE)
communication port and
RS-232 (8-pin mini-DIN) communication port can drive the other RS-232 ports
handshaking lines and the RS-485 transmitter.

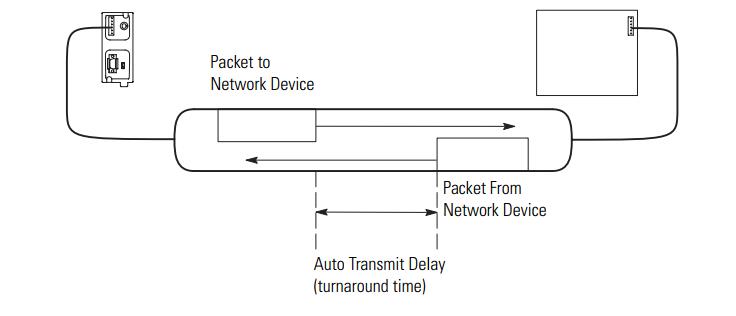

Auto-transmit Delay for AIC+ Interface Converter Using Auto-transmit Detection
(no hardware handshaking)
Auto Transmit Delay is measured from the time
the AIC+ interface
converter transmits its last mark out of the RS-485 port, until the delay
time expires. The AIC+ interface converter will not accept RS-485 port
data during the Auto Transmit Delay time.
Communication
Rate (Kbps)
Min Delay
(ms)
Max Delay
(ms)
Typical Delay
(ms)
Pre-send
Transmit Delay
Setting (ms)
(1) The pre-send transmit delay setting is used in your device’s (for example, SLC and MicroLogix controller)
communications configuration.(2) Use a pre-send value,
depending upon the network communication rate being used.

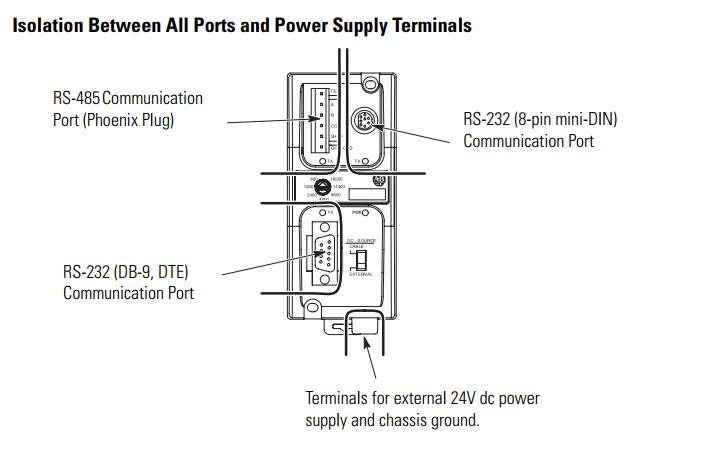

RS-485 Communication
Port (Phoenix Plug)
