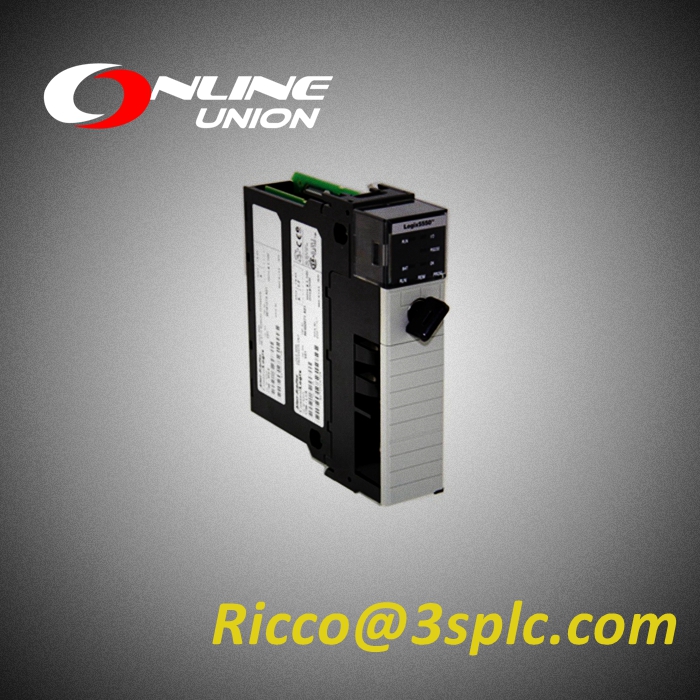

Allen Bradley Communication Modules 1756-EN2T PLC in stock

ControlLogix EtherNet/IP Network Devices



A ControlLogix system uses connections to establish communication links between devices. The types of connections include the following: • Controller-to-local I/O modules or local communication modules • Controller-to-remote I/O or remote communication modules • Controller-to-remote I/O (rack-optimized) modules • Produced and consumed tags • Messages • Controller access with the Studio 5000™ environment • Controller access with RSLinx® software for HMI or other applications You indirectly determine the number of connections the controller uses by configuring the controller to communicate with other devices in the system. The limit of connections ultimately resides in the communication module you use for the connection. If a message path routes through a communication module, the connection that is related to the message also counts towards the connection limit of that communication module



Allen-Bradley 1756-EN2T supports messaging, produced/consumed tags, and distributed I/O; Encapsulates messages within standard TCP/UDP/IP protocol; Share a common application layer with ControlNet and DeviceNet network protocols; Interfaces via RJ45, category 5, unshielded, twisted-pair cable; Supports half/full duplex 10 Mbps or 100 Mbps operation;





Allen Bradley Main Products:

SLC500:1747/1746 series
2.MicroLogix: 1761/1763/1762/1766/1764 series
3.CompactLogix: 1769/1768 series
4. The ControlLogix: 1756/1794/1760/1788 series
5. PLC-5:1771/1785 series
6.2711,2711P PanelView man-machine interface, touch screen, operation panel
7. ProSoft: MVI69 / PS69 / MVI56 / MVI94 / MVI71 / MVI46/3150

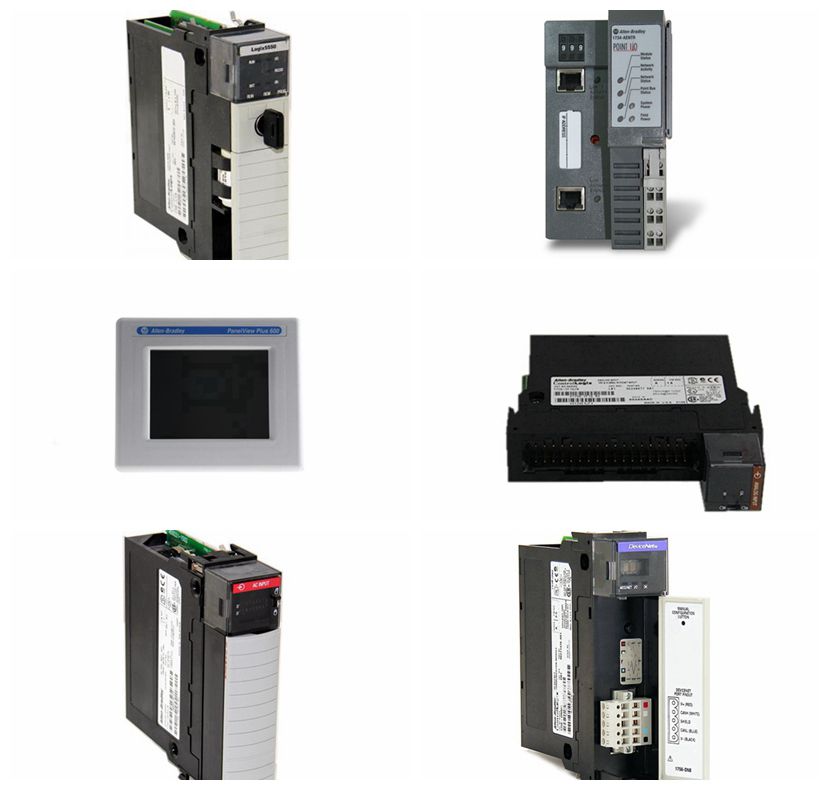

  Other Hot Products
1756-EN2T 1766-L32BXB 1771-IAN
1756-OB32 1769-L33ER/A 1746-P1
1746-P4 1756-OA8E 1756-OB16D
1768-L45S 1791-16A0 1756-PB75
1756-CNBR 1747-DCM 1771-P4S1
1746-HT 1756-PB72 2711-K5A5
1756-L1 1762-OA8 1769-PA2
1783-BMS07SA 1794-IV16 1746-NR4
1756-SYNCH 1771-PS7 1762-IT4
1761-NET-AIC 1756SC-IF8H 1756-EN2TR
1794-TB3 1783-MS06T 1783-ETAP
1794-IT9 1747-L551/A 1734-IT2I
1747-M13 1746-NT8 1756-OB16E
1756-M02AE 1769-L19ER-BB2B 1756-EN2F
1756-OB16I 1756-OX8I 1747-L532
