About 1769-ECR

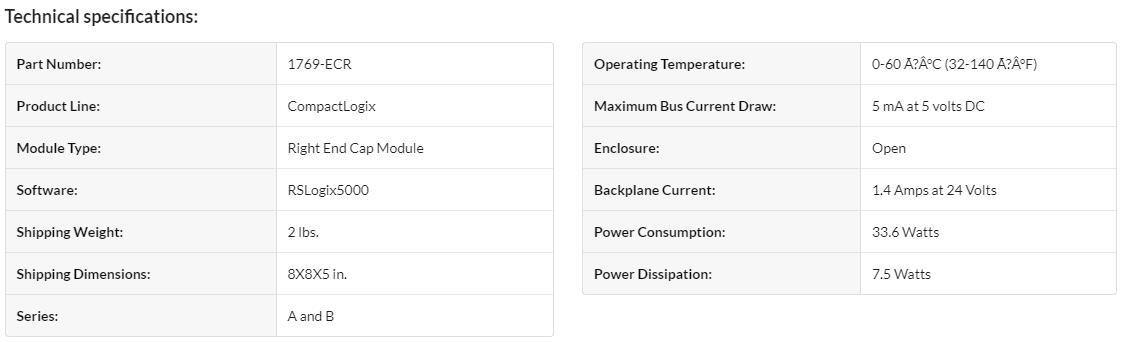

The Allen-Bradley 1769-ECR is a right end cap or terminator that terminates the end of the communication bus
of a 1769 controller. It has a maximum bus current draw of 5 mA at 5V DC. It comes with an operating altitude
of 6562 feet and an approximate shipping weight of 0.286 lbs. It has an open-type enclosure to ensure safety
and it can adapt to certain conditions to reduce the risk of fire and injury. To meet health and safety requirements,
the 1769-ECR should be installed with IP54 protection when applied in zone 2 environments because
it has no tolerance for sunlight and other UV radiation sources.
The 1769-ECR has an operating temperature of 32 - 140 °F tested in cold, dry heat, and thermal shock environments.
It has a non-operating temperature of -40 - 185 °F tested unpackaged during cold, dry heat, and thermal shock.
The also 1769-ECR has a 5 - 95% noncondensing relative humidity and its vibration reaches 5 g at 10 - 500 Hz
tested during operating. It has an operating shock is 20 g on a DIN rail mount and 30 g on a panel mount.
Its non-operating shock is 30 g on a DIN rail and 40 g on a Panel mount.

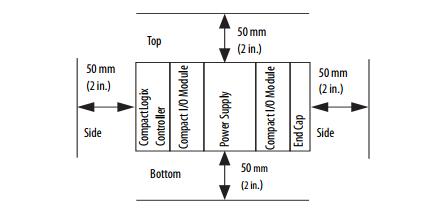

Minimum Spacing
Maintain spacing from enclosure walls, wireways, and adjacent equipment.
Allow
50 mm (2 in.) of space on all sides, as shown. This provides ventilation and
electrical isolation.
IMPORTANT Compact I/O expansion cables have the same dimensions as the end caps.
Expansion cables
can be used on either the right or left end. A 1769-ECR
right-end cap or 1769-ECL left-end cap terminates the end of the
communication bus.
