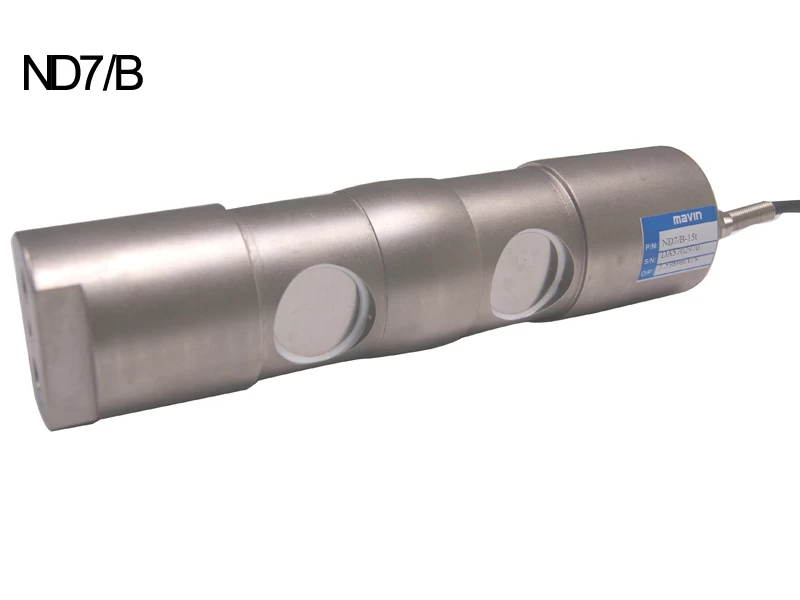

Alloy steel double shear beam Load Cell ND7/B (15T)
The ND7/B is a double shear beam load cell for a wide capacity range for Truck Scale, Industrial weighing systems, Rail scale, Hopper scale, Road scale. Alloy Steel beam load cell is made with nickel plated of stable quality.
Key Features：
Double
shear beam shaped
Steel
Alloy material with nickel plated
Capacity:
15T
Precision: 0.05-0.03%R.O.
Protection
class: IP67/PI68
Rated Output : 1.55-1.65 mV/V
Usage & Applications：
Truck scales
Rail scales
Hopper scales

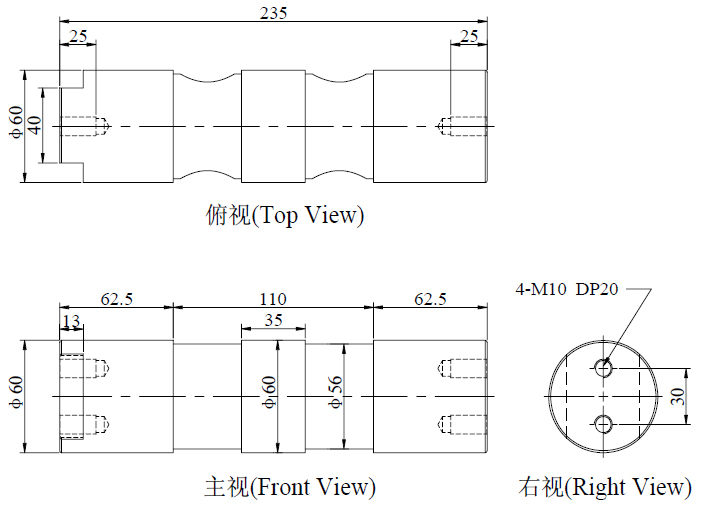

Dimension：
ND7/B Specification：
|
Rated Capacities
|
15（t）
|
|
Rated Output
|
(1.55~1.65)mV/V
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Non-linearity
|
0.05~0.03 %R.O.
|
|
Hysteresis
|
0.05~0.03 %R.O.
|
|
Repeatability
|
0.05~0.03 %R.O.
|
|
30mins Creep
|
0.05~0.03 %R.O.
|
|
30mins Return
|
0.05~0.03 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.003 %R.O./℃
|
|
Temperature Effect On Zero
|
0.003 %R.O./℃
|
|
Input Impedance
|
740±15 Ω
|
|
Output Impedance
|
700±5 Ω
|
|
Insulation Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Steel Alloy
|
|
Protection Class
|
IP67 / IP68
|
|
Cable
|
φ6×4m
|
|
Recommended Platform Size
|
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
