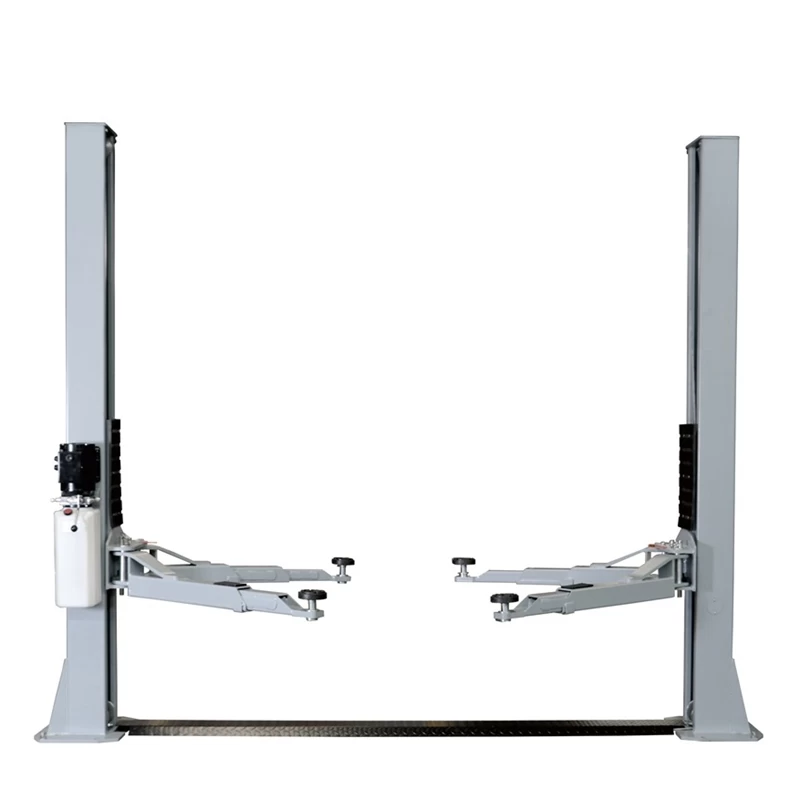

Ausland ALT-240SB 4T Economical Clearfloor Two Post Lift
ALT-240SB Capacity

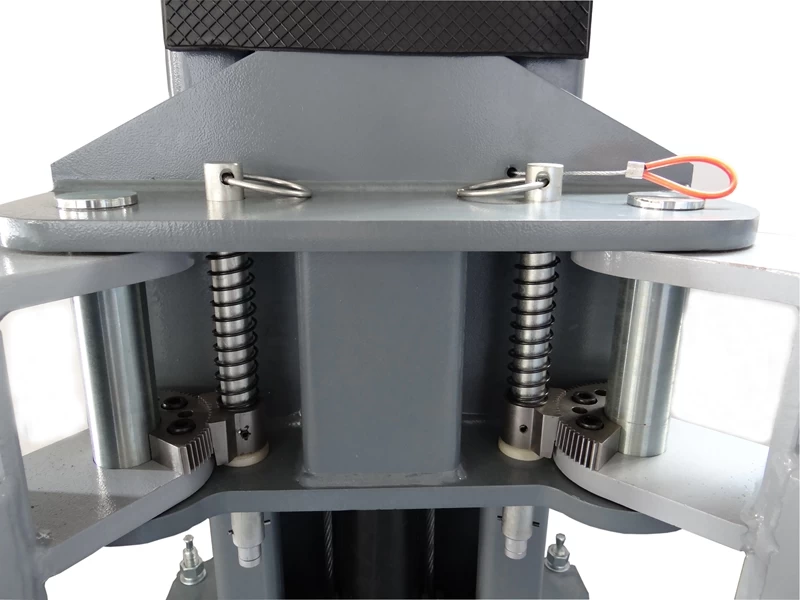

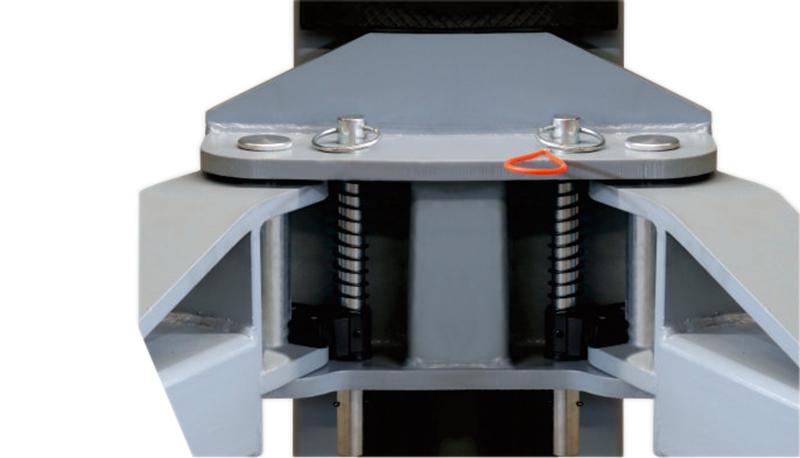

Bilateral manual safety unlocking system.
The cable and oil pipe are fully concealed; with decent and elegant appearance.
Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.
Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle form tilting.

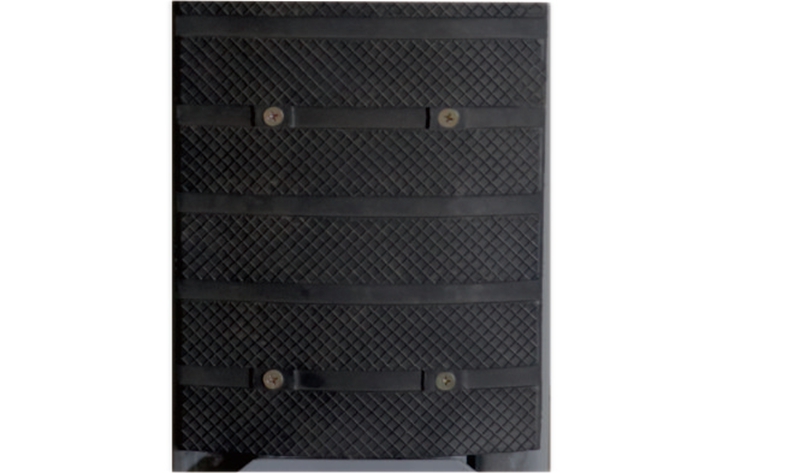

Door rubber pad protects car door from being damaged in collision.

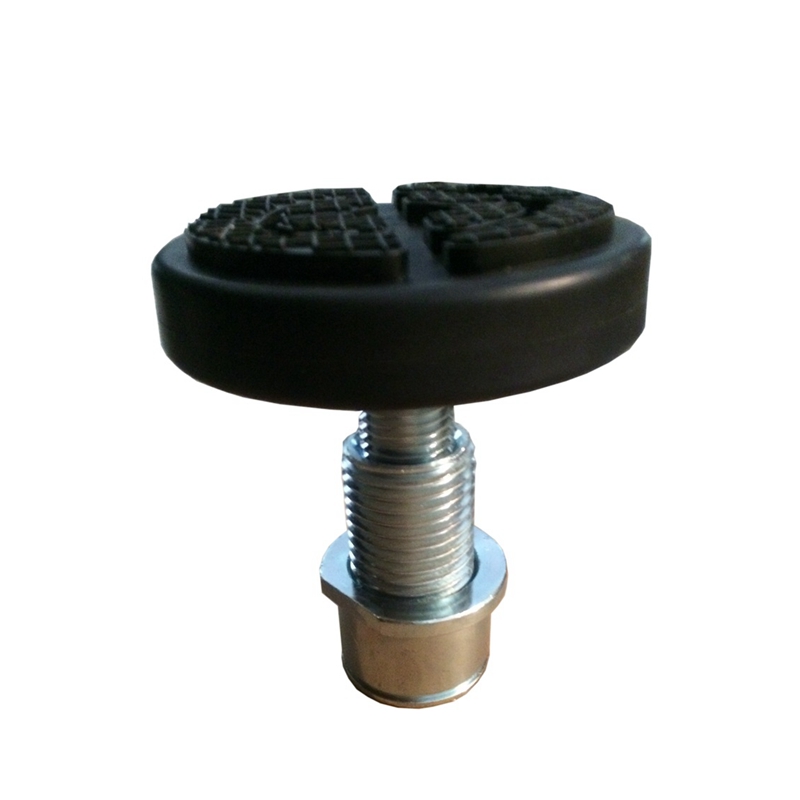

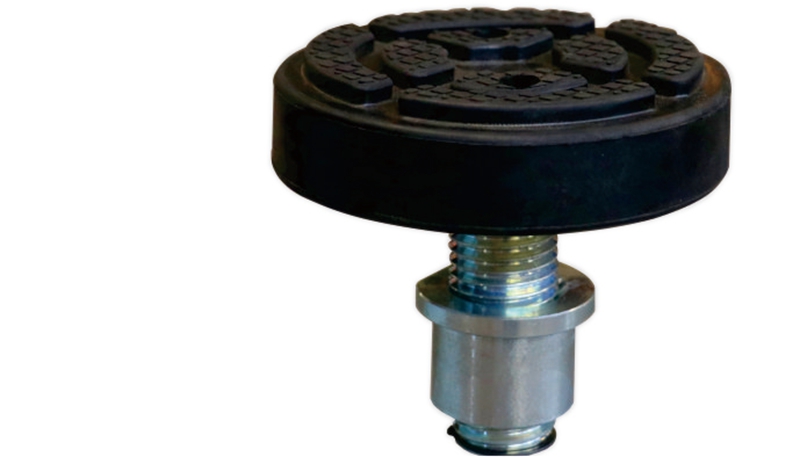

More lifting pads with different height meets the requirements for light Lorries and SUVs.
Passed 115% dynamic loading test and 150% static loading test .
ALT-240SB Standard Configuration:
Supporting arms: 2×2 stage Long Arms & 2×2stage Short Arms
Capacity: 4000kg
Weight: 600kg
A. Max. lifting: 1900mm
B. Overall height: 2826mm
C. Overall width: 3400mm
D. Drive through clearance: 2480mm
E. Supporting arm length front min: 685mm
F. Supporting arm length front max: 1100mm
G. Supporting arm length rear min: 845mm
H. Supporting arm length rear max: 1330mm
I. Adapter height min: 110mm
J. Adapter height max: 155mm
K. Clear size column spacing: 2760mm

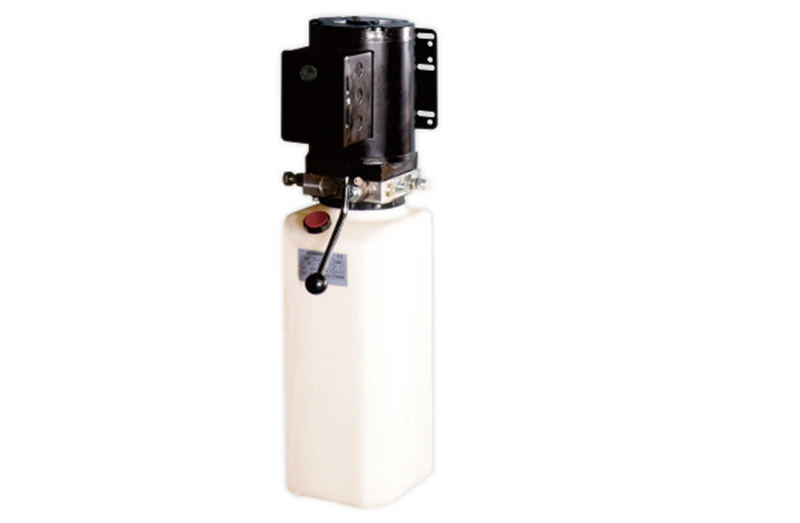

Motor performance: 2.2kW
Electrical connection: 380V-415V
(3 phases): 50-60Hz
Electrical connection : 215V-240V
(1 phases): 50-60Hz
Lifting time: ≤60 sec
Lowering time: 20-60 sec
ALT-240SB Optional:
1. Extension Adapter 150mm & 80mm
2. Eco-Alu-Shell Motor
3. δ16mm Reinforce Plates
4. 3 Stage Adapter
5. Foot Protections 1
6. Foot Protections 2
