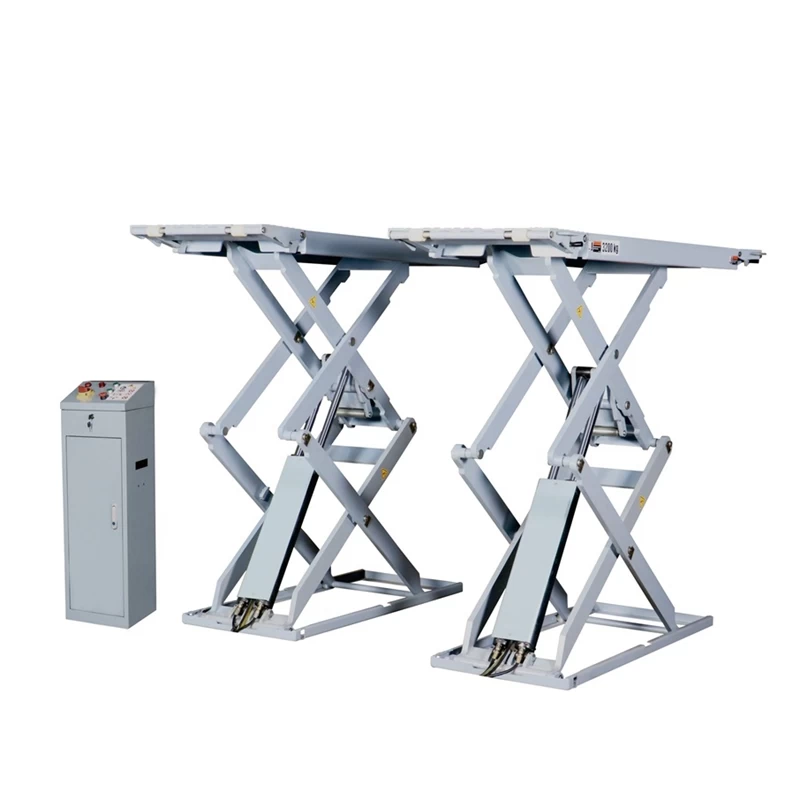

ALT-635AF Scissor Lift Standard
Configuration
|
Model ALT-635AF
|
|
|
Capacity
|
3500kg
|
|
|
Weight
|
875kg
|
|
|
A. Max.
Lifting
|
1930mm
|
|
|
B. Drive
on height
|
105mm
|
|
|
C. Overall
Width
|
2220mm
|
|
|
D. Overall
Length
|
2105mm
|
|
|
E. Runway
width
|
660mm
|
|
|
F. Interval
|
800mm
|
|
|
G. Platform
Length
|
1485mm
|
|
|
H. Ramp Length
|
310mm
|
|
|
Adaptor pads L×W×H
|
147×125×35
|
|
|
Motor performance
|
2.2kw
|
|
|
Electrical connection
|
380-415V
|
|
|
(3 phases)
|
50-60Hz
|
|
|
Electrical connection
|
215-240V
|
|
|
(1 phases)
|
50-60Hz
|
|
|
Lifting time
|
≤60 sec
|
|
|
Lowering time
|
≥20 sec
|
|
|
OneKeyLeveling
|
|
|
ALT-635AF Scissor Lift Optional:
1. Addptor pads: L×W×H 180×118×75mm
2. Optional
runways-01
3. Optional
ruways-02
