Product Item:Alumina Ceramic Flange for Precision Machining
Trpe of Ceramic Flange:
1.Threaded (threaded) flange
2.Welded flange
3.Clamped flanges

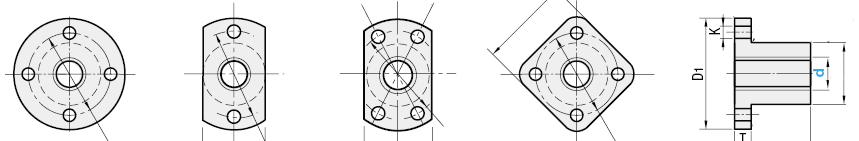

Drawing for referance:
Special type and sizes can be customized
Size range :
|
Ceramic flange size rang
|
|
Diameter(mm):
|
DN10--DN250
|
Outer Diameter(mm):
|
395
|
|
Bolt Spacing(mm):
|
350
|
Flange Thickness(mm):
|
0.5-35
|
|
Bolt diameter(mm):
|
14-36
|
OEM
|
By Drawing
|
Technical reference
|
CS Ceramic's products accuracy
|
|
Shaft part:
|
0.0015mm for axial dimensions
|
|
0.001mm for circular degree
|
|
0.0025mm for concentricity
|
|
0.01 for roughness
|
|
The minimum processing aperture:
|
0.3mm, and depth limit 3mm
|
|
0.002mm for axial dimensions of diameter 1mm aperture
|
|
0.02~0.04 for roughness
|
|
Tolerance of plane processing:
|
0.002 for flatness
|
|
0.0015mm for measuring tolerance
|
|
Ceramic processing thread:
|
processing internal thread size limit M2
|
|
Thread accuracy gb-7h
|
|
Unlimited size for external thread
|
|
Thread accuracy gb-6g
|
Plange Properties :
wear resistance
super strength
ultra-hard
high temperature resistance (refractory)
super corrosion resistance
never rust
antioxidant
insulation
environmental protection
Plange Application:
Ceramic Flanges are the parts connected between shafts and are used for connecting pipe end.Flange connection or flange joint, refers to the flange, gasket and bolt three mutual connection as a group of assembled sealing structure of the removable connection.There are holes in the flange and bolts make the two flanges close together.
Why choose CS CERAMIC
6 Steps Inspection Processes
15+ Years Oversea Market experience
30+ Years Manufacturer
300+ Members Professional Team
8000+ Kinds of alumina ceramic parts in Stock
Shipping：We do international shipping .
OEM : All sizes can be customized,Can be made into various of complex shapes, high dimension accuracy.
Please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
