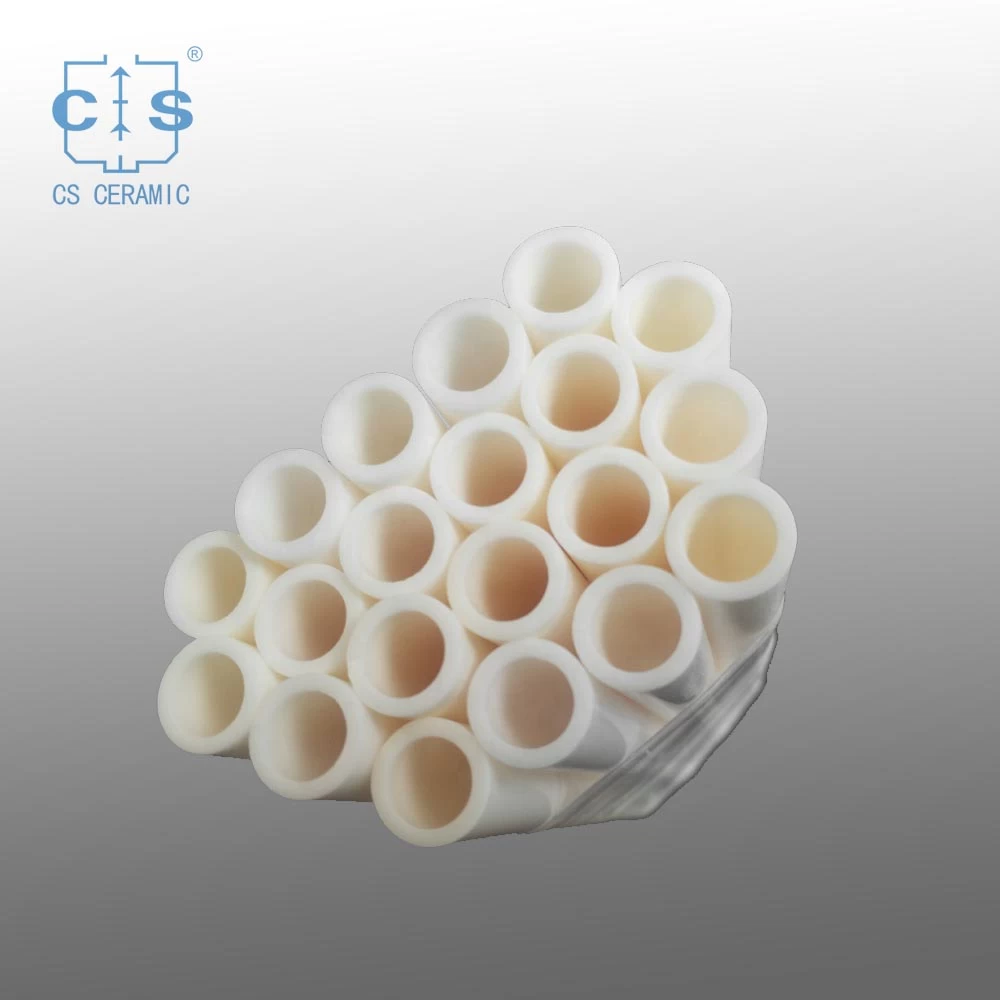

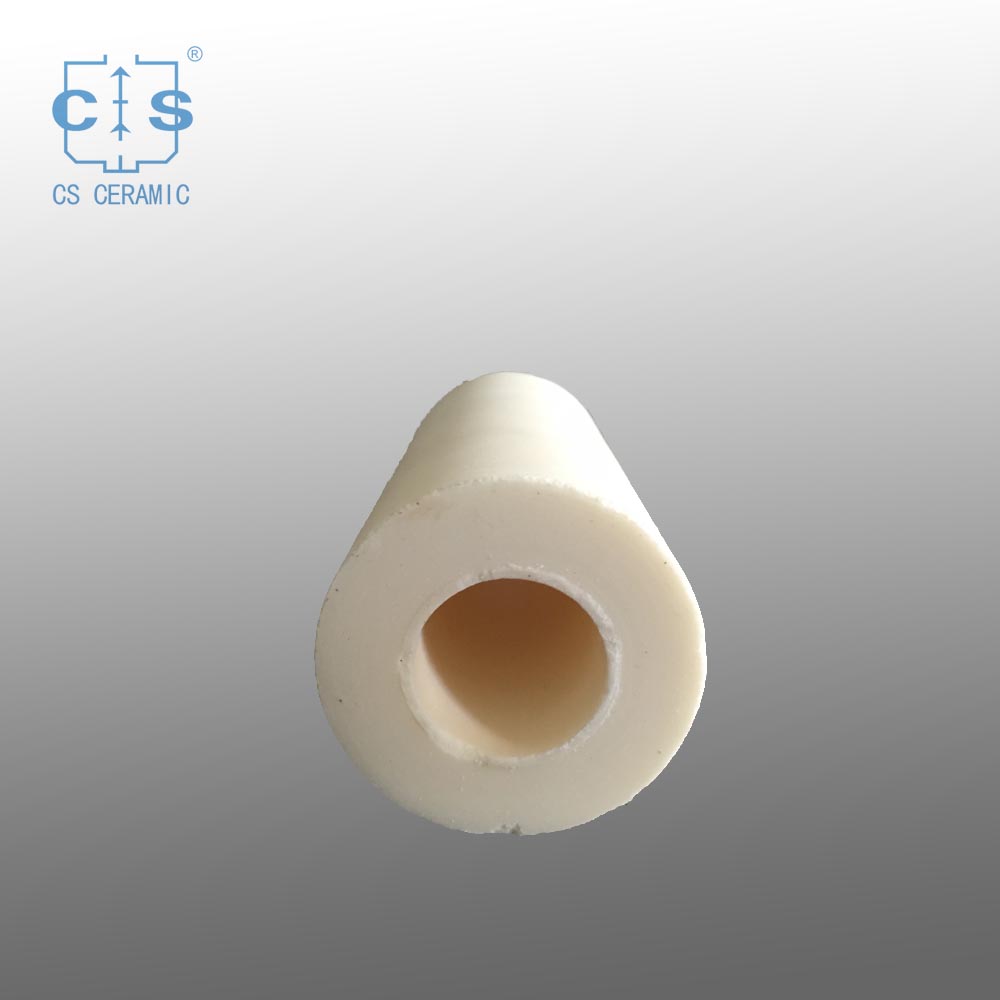

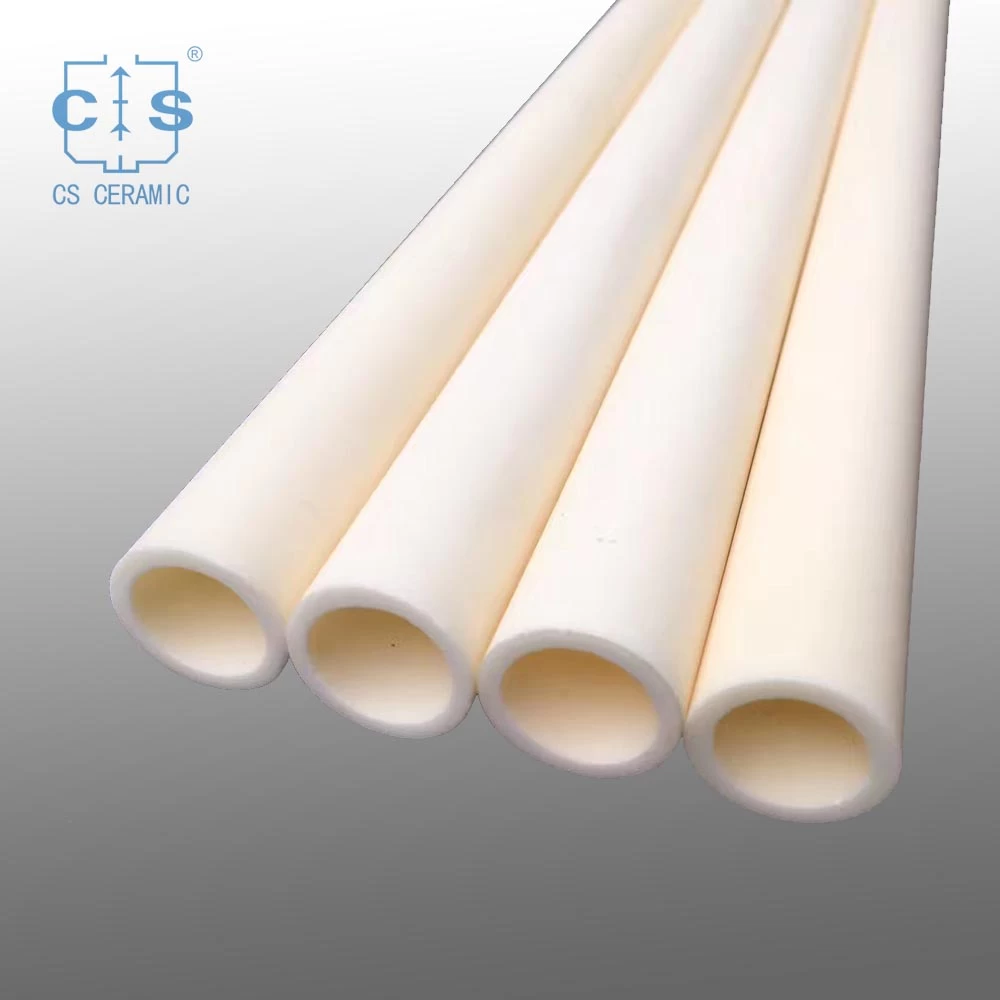

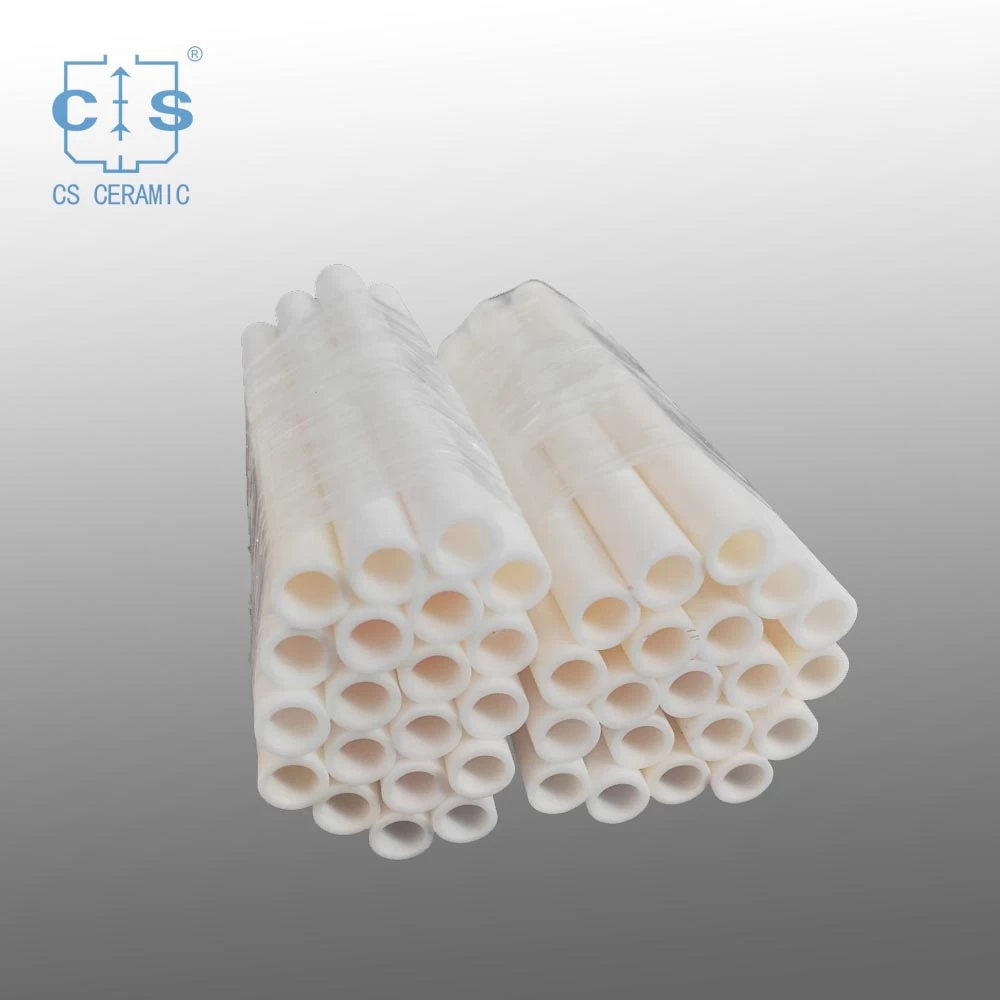

Product Item: Alumina Ceramic Tubes/Pipes Both Open Length 1mm--2500mm
Product Description
1. Protector tube series
Use: Protector tube and temperature tube of thermocouple thermometer, carbon determinator, sulfur deteminator and combustion pipe of metallurgy, iron and steel, chemical analysis.
2. Insulation tube series
Material: Corundum

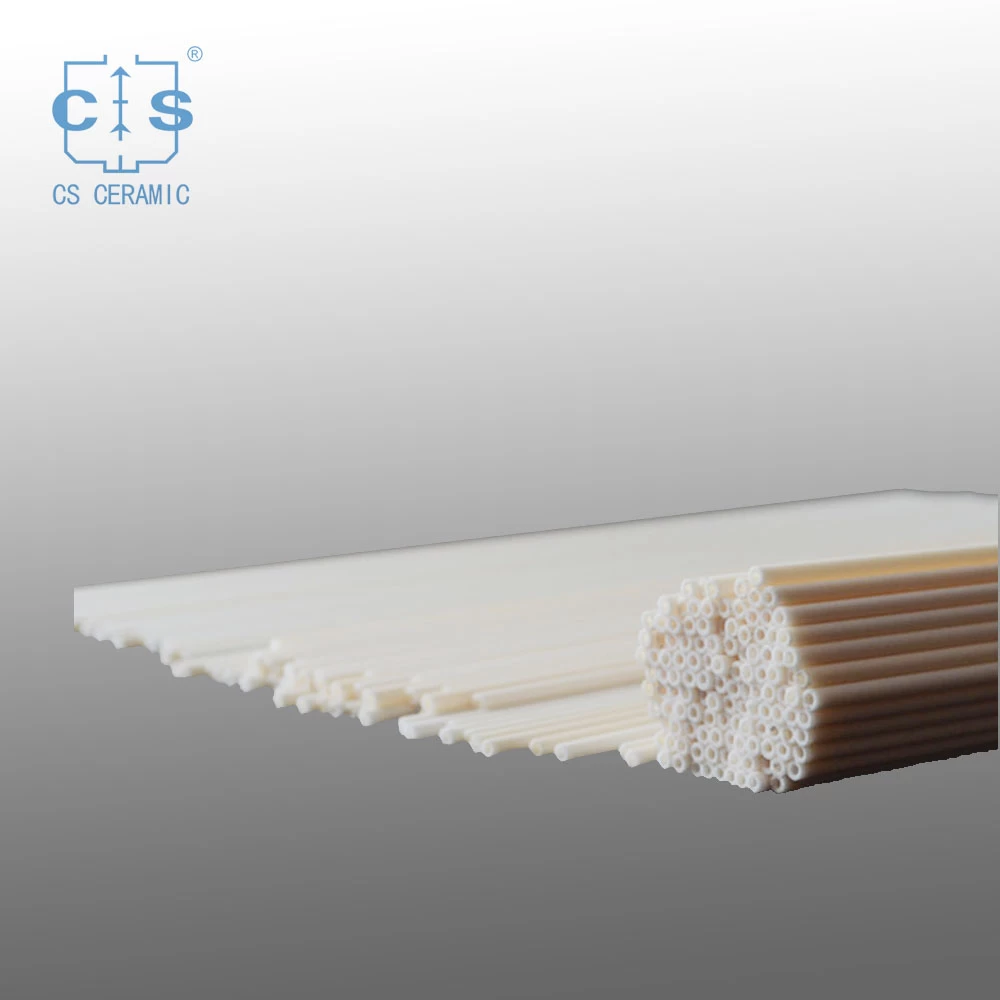

Use: For thermocouple, interval and insulation between couple wires. For specifications, there are single hole, double holes, four holes and multi-holes. For form, there are round and oval pipes.
3. Through tube series
Use: Inner liner tube and heating tube in electric furnace, heat treatment furnace and toughened furnace, chlorine pipe for production of alchlor and electric heating pipe in the tin trough in the production line of float glass.
Size details:
|
Alumina Tube (both sides open)
|
|
Item NO.
|

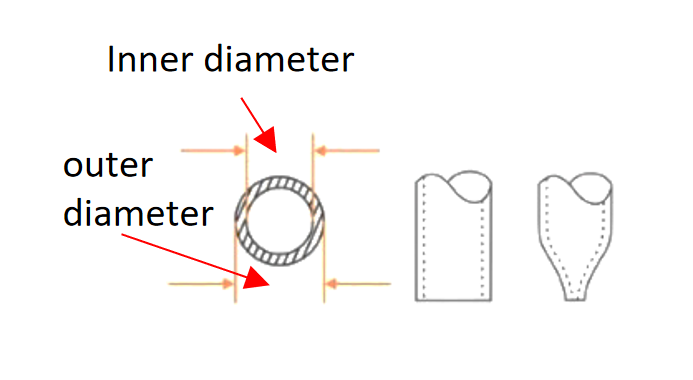

0uter diameter * inner diameter (mm)
|
Length/Purity Available
|
Item NO.
|
0uter diameter * inner diameter (mm)
|
Length Available
|
Item NO.
|
0uter diameter * inner diameter (mm)
|
Length/Purity Available
|
|
CS-AT-001
|
0.7*0.3
|
L≤1000mm Al2O3=95% Al2O3=99%
|
CS-AT-018
|
7.0*4.5
|
L≤2500mm Al2O3=95% Al2O3=99% Al2O3=99.5%
|
CS-AT-035
|
40*30
|
L≤2500mm Al2O3=95% Al2O3=99% Al2O3=99.5%
|
|
CS-AT-002
|
0.8*0.4
|
CS-AT-019
|
8.0*4.0
|
CS-AT-036
|
44*38
|
|
CS-AT-003
|
0.9*0.4
|
CS-AT-020
|
8.0*5.0
|
CS-AT-037
|
50*40
|
|
CS-AT-004
|
1.0*0.5
|
CS-AT-021
|
9.0*6.0
|
CS-AT-038
|
60*50
|
|
CS-AT-005
|
1.1*0.6
|
CS-AT-022
|
10.0*4.0
|
CS-AT-039
|
70*60
|
L≤2000mm Al2O3=95% Al2O3=99% Al2O3=99.5%
|
|
CS-AT-006
|
1.2*0.6
|
CS-AT-023
|
10.0*6.0
|
CS-AT-040
|
80*70
|
|
CS-AT-007
|
1.3*0.7
|
CS-AT-024
|
10.0*7.0
|
CS-AT-041
|
90*80
|
|
CS-AT-008
|
1.4*0.8
|
CS-AT-025
|
12.0*4.0
|
CS-AT-042
|
100*90
|
|
CS-AT-009
|
1.5*0.8
|
L≤2500mm Al2O3=95% Al2O3=99% Al2O3=99.5%
|
CS-AT-026
|
12.0*8.0
|
CS-AT-043
|
110*100
|
|
CS-AT-010
|
2.0*1.0
|
CS-AT-027
|
14.0*4.0
|
CS-AT-044
|
120*110
|
|
CS-AT-011
|
3.0*1.5
|
CS-AT-028
|
14*10
|
CS-AT-045
|
150*140
|
L≤1500mm Al2O3=95% Al2O3=99% Al2O3=99.5%
|
|
CS-AT-012
|
3.0*2.0
|
CS-AT-029
|
15*11
|
CS-AT-046
|
200*190
|
|
CS-AT-013
|
4.0*2.0
|
CS-AT-030
|
16*12
|
|
|
|
|
CS-AT-014
|
4.0*3.0
|
CS-AT-031
|
18*14
|
|
|
|
|
CS-AT-015
|
5.0*3.0
|
CS-AT-032
|
20*15
|
|
|
|
|
CS-AT-016
|
5.0*3.5
|
CS-AT-033
|
25*19
|
|
|
|
|
CS-AT-017
|
6.0*4.0
|
CS-AT-034
|
30*25
|
|
|
|
Alumina Ceramic Tube Applications
1. Furnace work tubes
2. Kiln furniture, components & accessories
3. Thermocouple protection tubes
4.Heater Support Elements
5. High Temperature Electrical Insulators
6. Extreme temperature measurement components
7.Ceramic Laser components
8. High voltage electrical insulators
Why choose CS CERAMIC
6 Steps Inspection Processes
15+ Years Oversea Market experience
30+ Years Manufacturer
300+ Members Professional Team
8000+ Kinds of Molds in Stock
Special offer:
Most of our Ceramic products are produced to order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
