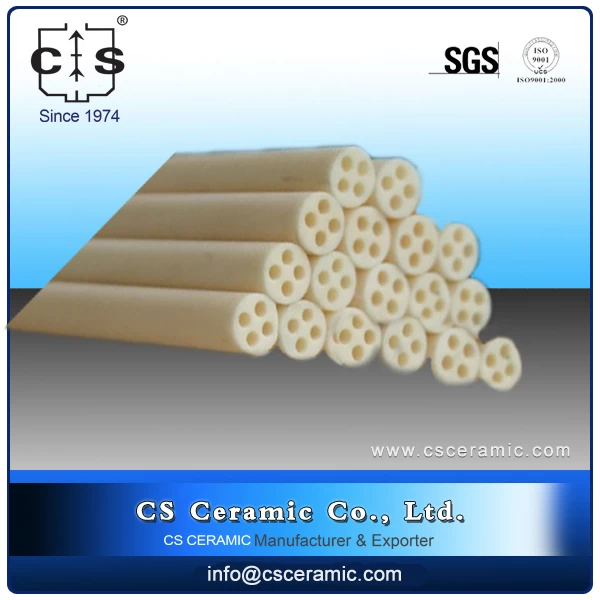

Product Item: Alumina Ceramic Tubes -Round 4 Bore

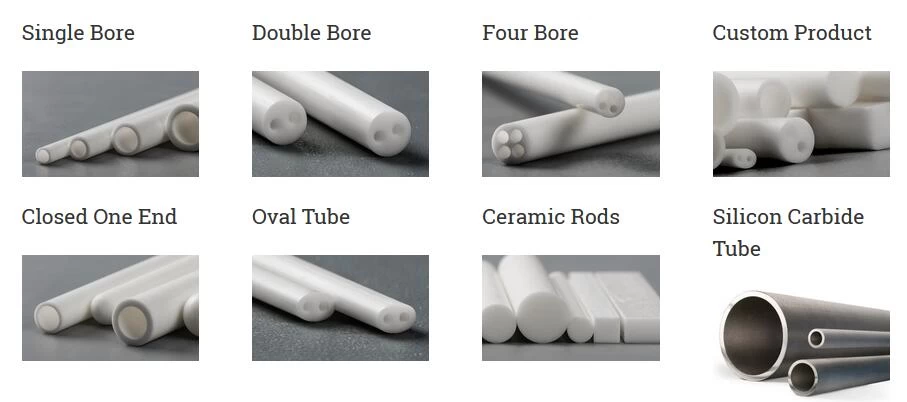

Product Range
Extruded Tubing
Round Double Bore Tubing
Oval Double Bore Tubing
Round Four Bore Tubing
One End Closed Ceramic Tubes
Both End Closed Ceramic Tubes
Alumina Tubes
CS CERAMIC'S tubes are high strength, zero porosity, fully fired, 99.7% Alumina Ceramic that can be used continuously to 1800°C.This grade of Alumina is extremely wear resistant and can be machined only with special tooling. No additional heat treatment is required.
CS CERAMIC'S Alumina has the chemical, thermal and electrical resistance required for applications in the electronic, metallurgical fixture and vacuum industries.
Size:
|
Dimension
|
Outer dia. mm
|
Inner dia.mm
|
Length mm
|
Remark
|
|
Item
|
|
Thermocouple protection tube
|
7-120
|
1-110
|
10-2000
|
If you need others,we can
customize for you.
|
|
Insulated tube
|
Single hole
|
2-120
|
1-110
|
10-2000
|
|
(inner core)
|
Double holes
|
1-10
|
0.4-2
|
10-2000
|
|
|

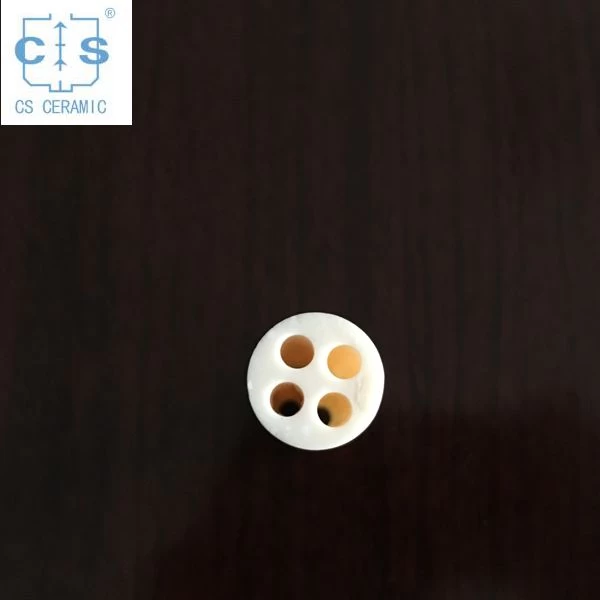

Four holes
|
2-10
|
0.5-2
|
10-2000
|
CS Ceramic CO.,Ltd Ceramic Engineering specialises in all types of High temprature scientific laboratory Alumnia.
