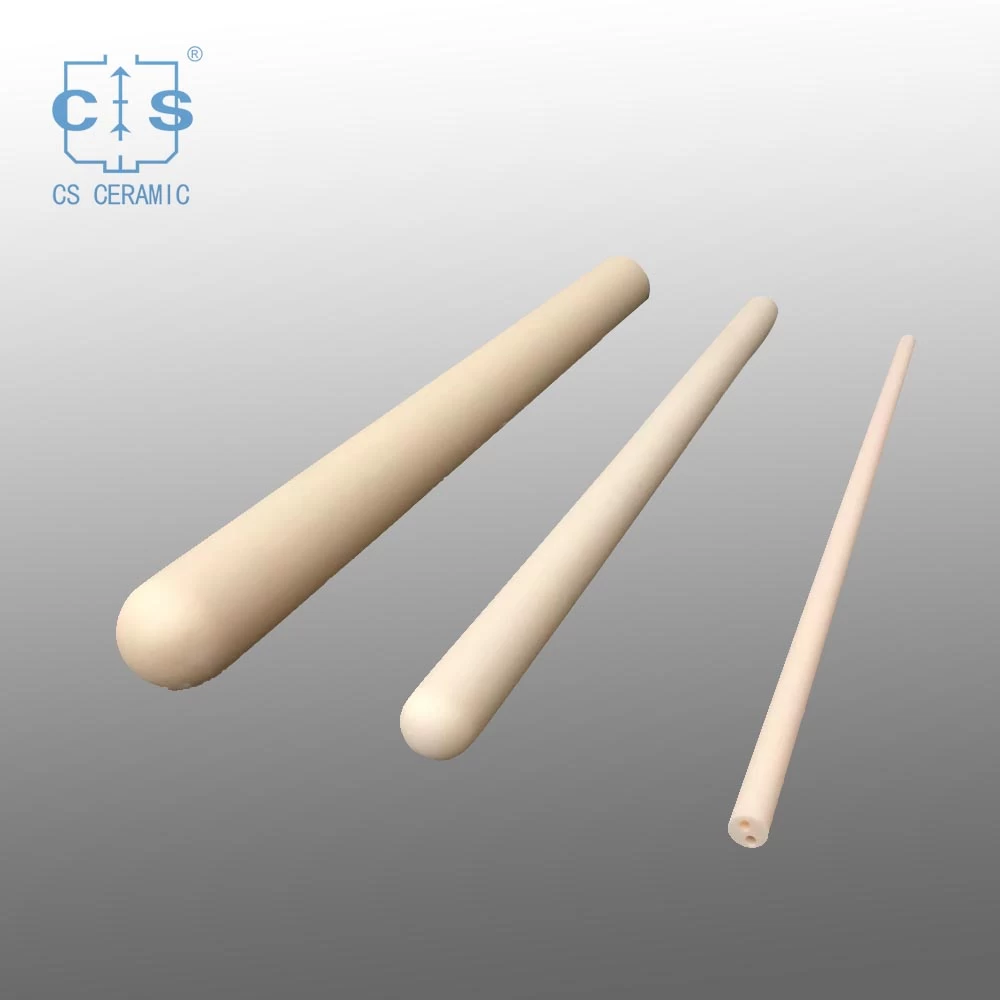

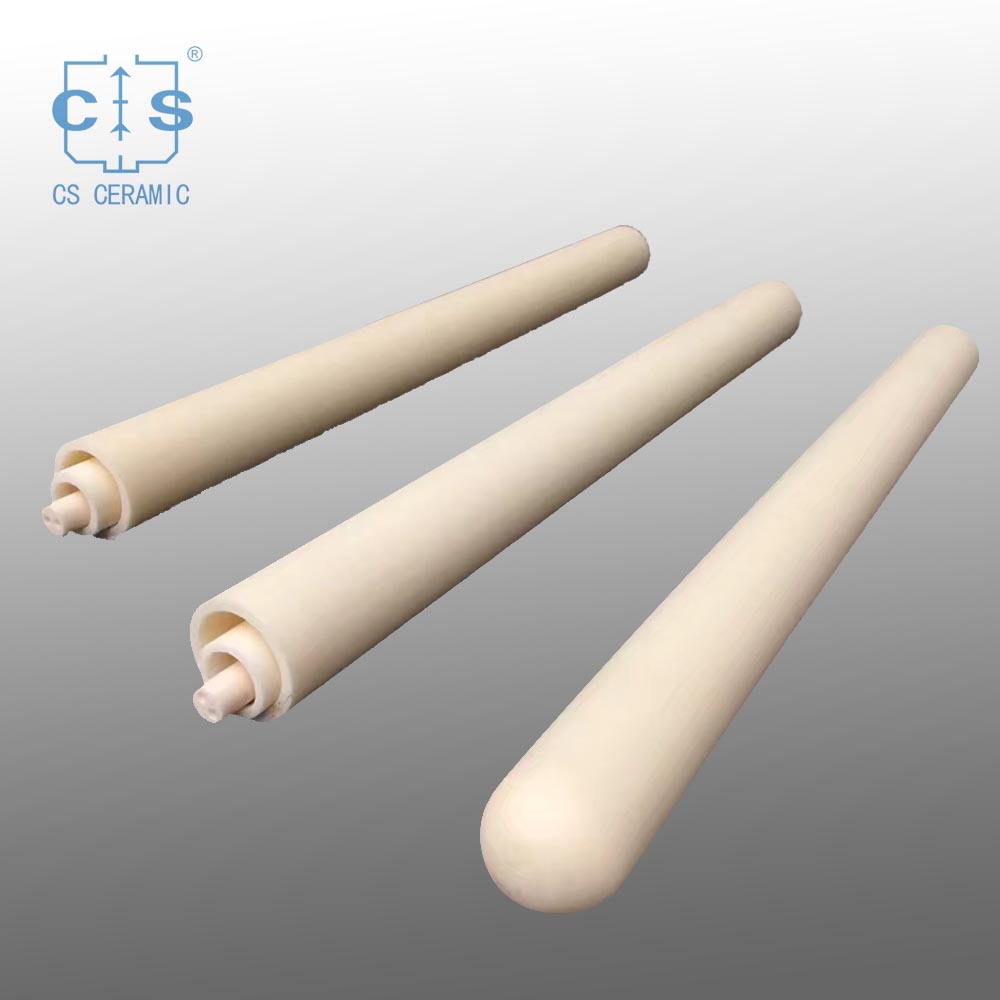

Alumina thermocouple insulator ceramic protection tube(Closed one End)

Length 1-2500mmGreat quality insulator ceramic pipe  alumina zirconia steatite ceramic tube al2o3 tube.OEM is accpected .



  • MaterialAlumina ceramic
  • ShapeOne side open
  • Length1-2500mm
  • Purity Available90% 95% 99% 99.5% 99.7%

Product Item:Alumina thermocouple insulator ceramic protection tube(Closed one End)


Size :


Alumina Tube (One side open)

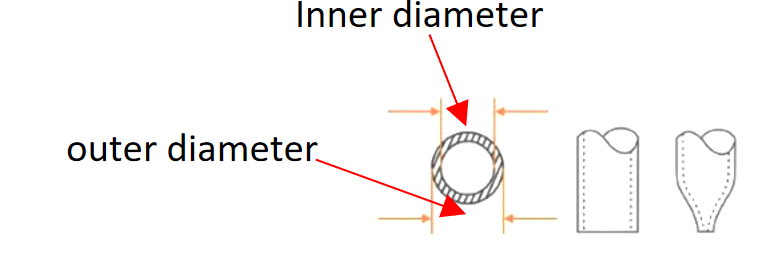

Item NO. outer diameter * inner diameter (mm) Length/Purity  Available Item NO. outer diameter * inner diameter (mm) Length Available Item NO. outer diameter * inner diameter (mm) Length/Purity  Available
CS-AT-047 2.0*1.0 L≤1500mm Al2O3=99.5%  CS-AT-057 10.0*7.0 L≤2500mm Al2O3=95% Al2O3=99%   Al2O3=99.5%  CS-AT-061 20.0*15.0 L≤2500mm Al2O3=95% Al2O3=99%   Al2O3=99.5%
CS-AT-048 3.0*2.0 CS-AT-058 11.13*7.95 CS-AT-062 22.23*15.88
CS-AT-049 4.0*2.5 CS-AT-059 12.0*8.0 CS-AT-063 23.83*17.48
CS-AT-050 5.0*3.0 CS-AT-060 12.7*8.9 CS-AT-064 25*18.8
CS-AT-051 6.0*3.5 CS-AT-061 14.0*10.0 CS-AT-065 25.4*19.05
CS-AT-052 6.35*3.96 L≤2500mm Al2O3=95% Al2O3=99%   Al2O3=99.5%  CS-AT-062 15.0*10.0 CS-AT-066 26.0*20.0
CS-AT-053 7.95*4.78 CS-AT-063 15.0*11.0 CS-AT-067 28.0*22.0
CS-AT-054 8.0*5.5 CS-AT-064 16.0*12.0 CS-AT-068 30.0*23.0
CS-AT-055 9.53*6.35 CS-AT-065 17.48*12.7
CS-AT-056 10.0*6.0 CS-AT-066 19.05*14.3


CS CERAMIC CO.,LTD 's Aluminum oxide products:


1.Ceramic protective tube and insulation tube

2.Large caliper siphunculus and furnace tube

3.Laboratory instrument and crucible for thermal treatment

4.Wear resistant component

5.Semiconductor device component

6.Electric and electronic component

7.Pressure resistant filler



Excellent performance of CS CERAMIC CO.,LTD's products:

1.Excellent performance of high temperature resistance

2.Excellent performance of wear resistance

3.Stable chemical properties

4.High degree of corrosion resistance

5.Super high insulativity

6.High mechanical strength




Special offer:

Most of our Alumina tubes are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
