Product description
1.Aluminium dual USB C Adapter equipped with 4 K HDMI ,thunderbolt 3,2 USB3.0 ,Usb C 3.1 Gen 1for data ,SD/Micro SD card easily expand your daily Usb C devices.

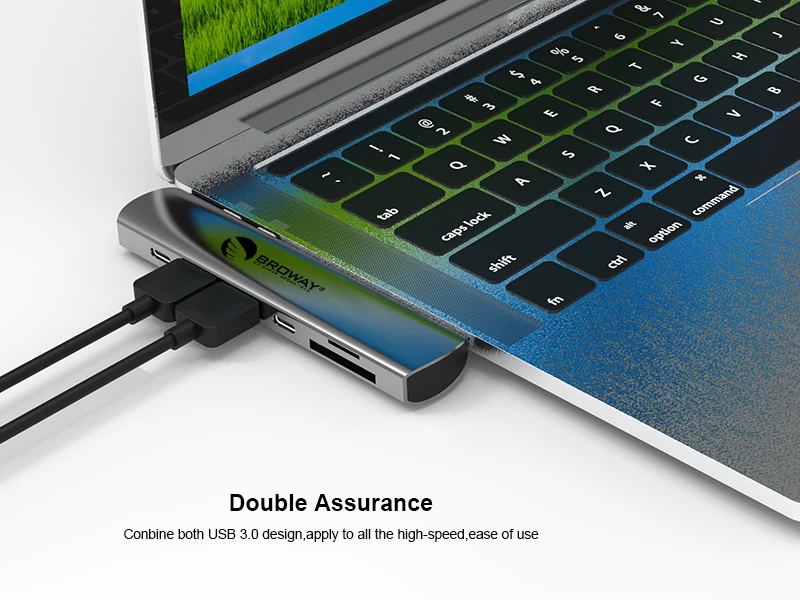

2.USB 3.0 Ports at 5 Gbps:Allow you to connect keyboard, mouse, thumb drive to your laptop; provide high speed transfer rate of up to 5Gbp.
3.Thunderbolt 3 port supports power delivery charge up to 100W,data tranfer speed 40Gbps max,TV,monitor or projector in up to ultra HD 5K or 2*4K@60HZ
4. 4K display Adapter: This Usb C hub enables you to mirror or extend the display of your laptop to your TV,monitor or projector in up to ultra HD (4K) at 30Hz or Full HD (1080p) at 60Hz resolution.
5.USB 3.1 Gen 1Port at 5 Gbps:Allow you to connect Usb C devices and provide high speed transfer rate of up to 5Gbps.
6. SD/Micro SD card slot: Support SDXC (up to 2TB), SDHC, SD, Micro SDXC, Micro SDHC and Micro SD cards read and write simultaneously.

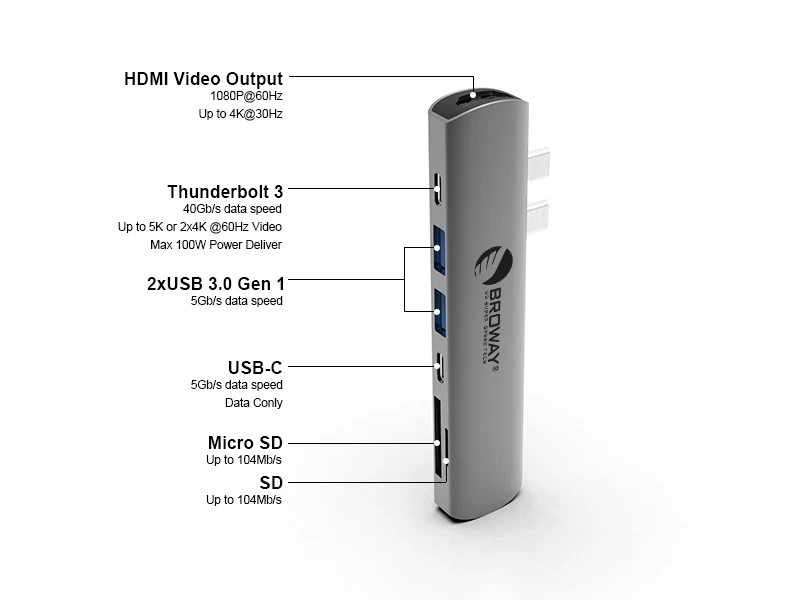

Interface
2*USB 3.0
1*HDMI 4K 30Hz
1*Thunderbolt 3
1*Usb C 3.1 Gen 1 for data
1*SD card slot
1*Micro SD card slot
Details Display
Specification
|
Brand:
|
Broway
|
Item Name:
|
BD31117A-1
|
|
Color:
|
Black &Grey &Silver
|
Material :
|
Aluminum+ABS
|
|
Product size:
|
120*27.7*12.2MM
|
Working Temperature:
|
0℃~40℃
|
|
Weight:
|
---
|
Storage temperature:
|
'-20℃~60℃
|
|
Supported Systems:
|
Windows 10, 8, 7, Vista, XP, Mac OS X 10.6 or later, Linux 2.6.14 or Later
|
Humidity:
|
25%RH.~93%RH.
|
|
Incompatible Devices:
|
iPad Pro 2018；Nintendo Switch; Apple USB Super Drive
|
Compatible Devices :
|
Macbook Pro 2016/2017/2018,New Macbook air
|
Notice
1. For a stable connection, connected devices should not exceed a combined current of 900mA.
2. Not intended for use with high-power devices (external hard drives, iPads, etc.).Due to power output limitations of some laptops, it is recommended that you connect only one HDD/SSD at a time.
3. 2.4 GHz wireless devices, MIDI devices and some USB 3.0 devices may not be supported.The extended cable is 0.5 ft long.
Service
Warranty:14 month warranty
Service: OEM &OEM Support is available
FAQ
1.Does the HDMI Port support 4K@60hz or just 30hz?
It just supports 4K@ 30hz
2. This thunderbolt 3 Port can be used for data transfer as well ?
Yes,it supports data transfer speed up to 40Gbps as well as power delivery 100W max.
3.Will this usb c adapter work well with all ports together?
Yes,all ports work perfectly at the same time
4. Does this require driver install ?
No,just attach it to your Usb C laptop and all of the ports worked without having to add any drivers.
5.Will this work with a case on the laptop?
No,Your case will need to be removed when you use this adapter
